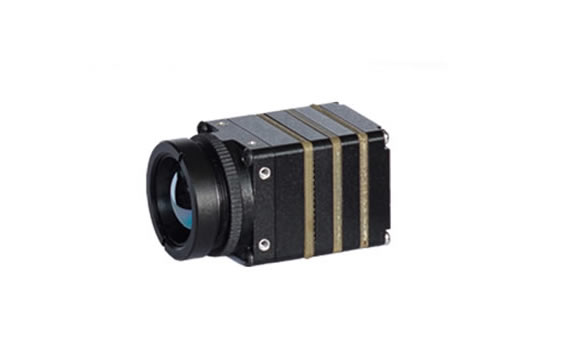

Main Properties
» Ultra small size
» Boot time less than 3 seconds
» NETD＜30mk @300k F1.0
» Lowest power consumption less than 0.5W
» Scene adaptive image correction technology
» 14 Bit(50Hz) or BT.656 data output

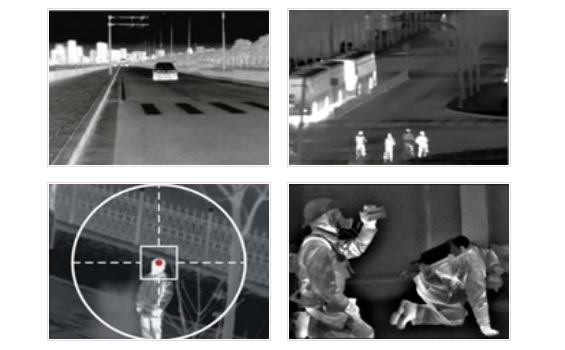

Application Range
MH-C3 mini applies to the specific requirements of the system and integrated camera. VehicleMonitorTelescopeUAV

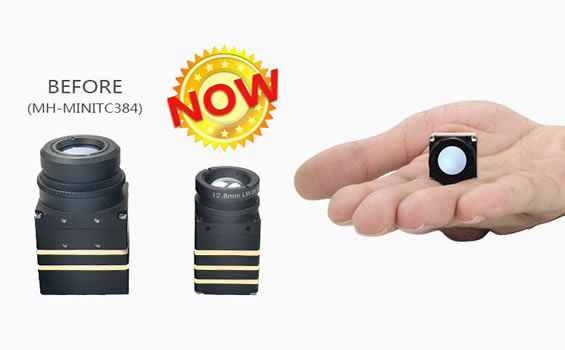

1. Smallest in size:
Module size (excluding lens,screw): 20mm×20mm×20mm(H×W×L)

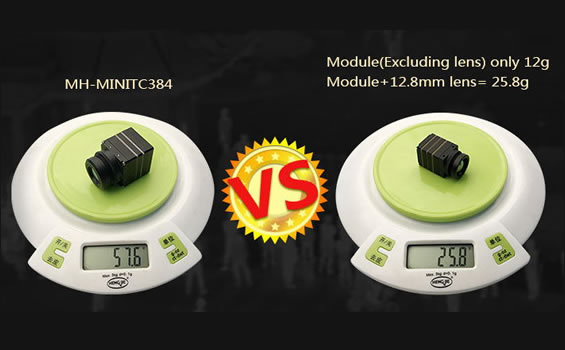

2. Smallest in weight
Module (exluding lens ,screw) :12g only
Module+12.8mm lens+ screw: 25.8g

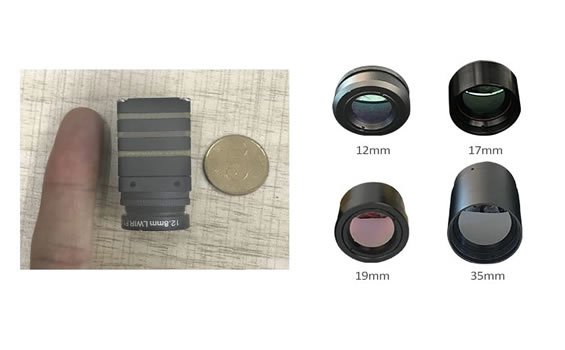

3. Can customized different lens :
12mm,17mm,19mm,35mm, 50mm,100mm

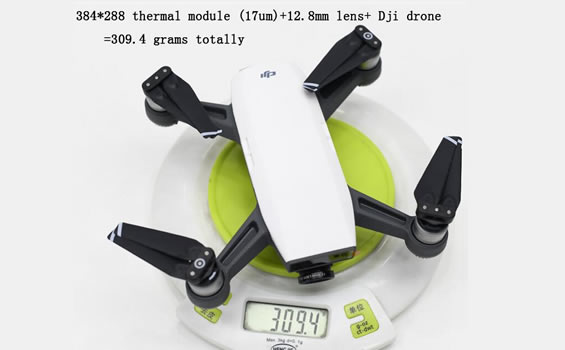

4. Can be installed onto UAVs
| Detector Performance | |
| Type | Uncooled amorphous silicon FPA（Non TEC） |
| FPA format/Pixel pitch | 384×288 / 17um（Gen 2） |
| Sensitivity | ≤30mk at f/1.0 300K |
| Frame rate | 50Hz |
| Spectral range | 8~14um |
| Image Processing | |
| Non-uniformity correction | Self-adaption calibration |
| Time to image | ＜3s |
| Image enhancement | DDE |
| Image display resolution | 768×576 |
| Frame rate | 50Hz（PAL） |
| Lens | Optional 12mm，19mm，35mm，40mm，50mm |
| Display Control | |
| Pallets | 9 colors optional |
| Image zoom | 1-4x digital zoom |
| Brightness | Auto/manual |
| Contrast | Auto/manual |
| Image reversal | Horizontal/Vertical |
| Crosshair | One or more |
| Power | |
| Operation Voltage range | DC: +2.5V~+5.5V |
| Typical | DC：3.3V |
| Power consumption | <0.6W |
| Reverse protection | Yes |
| Over/under voltage protection | Yes |
| Environment Parameters | |
| Operation temperature range | Commercial：-20ºC~+60ºC |
| Special purpose：-40ºC~+60ºC | |
| Storage temperature range | -45ºC~+65ºC |
| Humidity | 5%~95% non-condensing |
| Anti-Vibration and shock | GJB 150-16 2.3.1 |
| GJB 150-18 T7 100g/6ms | |
| Temperature shock | -5ºC/min（-40ºC~+60ºC） |
| Physical Attributes | |
| Weight | 12g |
| PCB size | 20mm×20mm |
| Module Size | 20mm×20mm×20mm(H×W×L) |
| Interface | |
| External Power supply | Yes |
| Digital video output | 14 Bit(50Hz)/ BT.656(customized) |
| Communication | RS-232 |
| Analogue video | BNC(75Ω) |
| Keyboard | 4-button |
