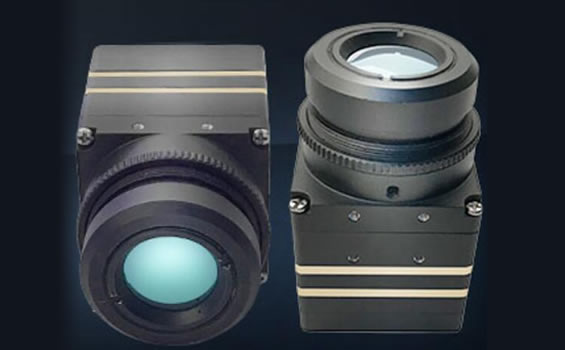

Main features:
» Ultra small size (exluding screw and lens ): 27mm×28mm×33mm(H×W×L)
» Ultra small weight (exluding screw and lens ): 33g
» Boot time less than 3 seconds
» NETD＜30mk @300k F1.0
» Lowest power consumption less than 0.6W
» Scene adaptive image correction technology
» 14 Bit(50Hz) or BT.656 data output

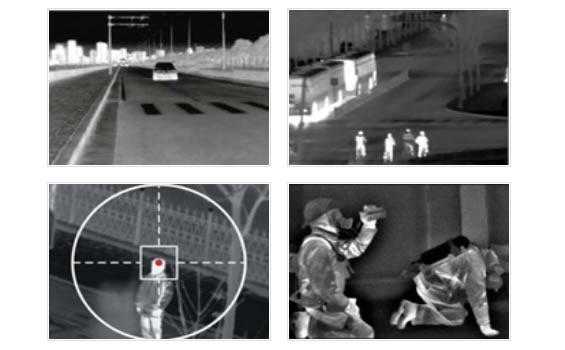

Application Range
MH-D3 applies to the specific requirements of the system and integrated camera. Vehicle Monitor Telescope UAV
| Detector Performance | |
| Type | Uncooled amorphous silicon FPA（Non TEC） |
| FPA format/Pixel pitch | 384×288 / 17um |
| Sensitivity | ≤30mk at f/1.0 300K |
| Frame rate | 50Hz |
| Spectral range | 8~14um |
| Image Processing | |
| Non-uniformity correction | Self-adaption calibration |
| Time to image | ＜3s |
| Image enhancement | WD (Fast image enhancement algorithm for wide dynamic range image) |
| Image display resolution | 768×576 |
| Frame rate | 50Hz（PAL） |
| Lens | Optional 12mm，19mm，35mm，40mm，50mm |
| Display Control | |
| Pallets | 5 or 9 colors optional |
| Image zoom | 1-4x |
| Brightness | Auto/manual |
| Contrast | Auto/manual |
| Image reversal | Horizontal/Vertical |
| Crosshair | One or more |
| Power | |
| Operation Voltage range | DC: +2.5V~+5.5V |
| Typical | DC：3.7V |
| Power consumption | <0.6W |
| Reverse protection | Yes |
| Over/under voltage protection | Yes |
| Environment Parameters | |
| Operation temperature range | Commercial：-20ºC~+60ºC |
| Special purpose：-40ºC~+60ºC | |
| Storage temperature range | -45ºC~+65ºC |
| Humidity | 5%~95% non-condensing |
| Anti-Vibration and shock | GJB 150-16 2.3.1 |
| GJB 150-18 T7 100g/6ms | |
| Temperature shock | -5ºC/min（-40ºC~+60ºC） |
| Physical Attributes | |
| Weight | 33g |
| PCB size | 24mm×24mm |
| Module Size | 27mm×28mm×33mm(H×W×L) |
| Interface | |
| External Power supply | Yes |
| Digital video output | 14 Bit(50Hz)/ BT.656(customized) |
| Communication | RS-232 or RS-485 |
| Analogue video | BNC(75Ω); Support dual composite video |
| Keyboard | 5-button |
