Features

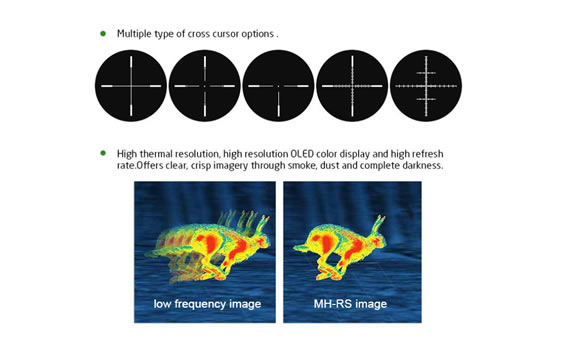

* High thermal resolution, high resolution OLED color display and high refresh rate.Offers clear, crisp imagery through smoke, dust and complete darkness.
* Multiple type of cross cursor options and multiple color of cursor options
* Multiple function: Thermal image/ Hot tracking/ Electronic Compass/ Picture in picture(PIP)/ Rangefinder
* Multiple language for your choose.
*Fully waterproof IP67, MH RS thermal scopes can be operated in precipitation of any intensity. Such as heavy shower or snowfall.

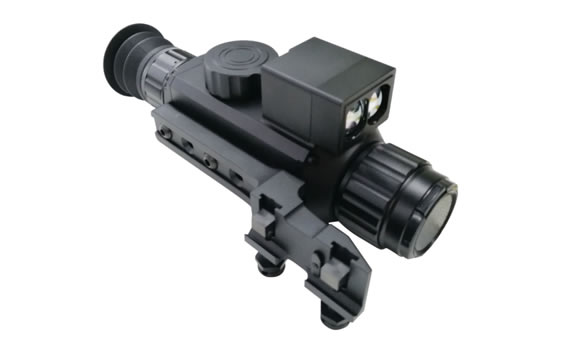

*With 600m laser range finder, accuracy is less than ±1m
| Type | MH-RS335 |
| Detector | 384×288,17μm |
| Type | Uncooled FPA, Shutter less |
| Spectral Range | 8~14μm |
| Focus Length | 35mm(50mm,75mm Optional) |
| F# | F1.0 |
| FOV | 10.6°×8.0° |
| Frame Frequency | 50Hz |
| OLED | 0.5 inch, 1024×768 |
| Digital Zoom | 1×, 2×, 4× |
| Palette | White-hot, Black-hot, Red-hot, Iron-hot, Sky |
| Recognition Range | |
| 1.8m×0.5m Human | 500m |
| 2.3m×2.3m Nato Target | 800m |
| Detection Range | |
| 1.8m×0.5m Human | 1000m |
| 2.3m×2.3m Nato Target | 1300m |
| Mechanical | |
| Shock | 500G |
| Chassis | Picatinny Chassis |
| Power | 26650×1Pcs, 3.7V, Rechargeable Li-battery |
| Working Time | ≥8h |
| Environment | |
| Working Temperature | -40℃~60℃ |
| Encapsulation | IP67 |
| Weight | 650~1300g |
| Size | ≤250mm×80mm×52mm |
