Remote control station is the near area defense light system which integrates target detection, identification, tracking, surveillance, simple resolving and firepower unit.
ORW-10 remote control station adopts the technology of gyro stabilization, IR imaging and auto-tracking and resolving and can be equipped with multiple types of machine gun and emitter.
It is composed of operating console and platform. The firepower unit can be equipped with module weapon system with various combinations.
2.2 Functions and characteristics
(1) Characteristics
l The product can carry multi-type machine gun and emitter and the adaptability is good.
l It has advantages of relative independence, modular unit and remote operating.
l Automoatic firing mode, semi-automatic firing mode and manual firing mode
l Detection, reconnaissance and tracking function of small targets on surface and bank in all weather.
l Visible light camera shooting, uncooled IR thermal imaging, and laser ranging
l It has autonomous gyro stabilzation function to eliminate ship swing and realize LOS stabilization.
l Prohibit shooting at the dangerous range and limit elevation and azimuth.
l Image recording and replaying function.

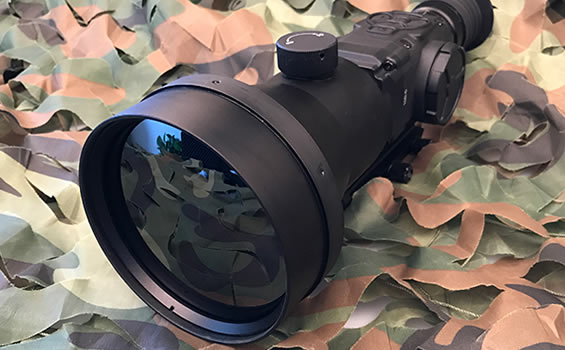

1. Thermal Camera Specification
| Items | Thermal Camera | |
| Detector | Detector type |
Uncooled FP A microbolometer |
| Spectral range | 8 - 12 µm | |
| Array size | 640*480 | |
| Pixel size | 25um | |
|
Image characteristics |
Lens | 100mm/F1.0 |
| FOV | 4.5°×3.6° | |
| Zoom | 2X | |
| NETD | ≤80mk@30℃ | |
| Focus | Electronics focus | |
| Frame rate | 50Hz | |
| Power supply | DC | DC12V |
| Environment | Operating temp | -40℃- +60℃ |
| Physical | Weight | ≤3KG |
| Interface | External Power | DC12V/2A |
| Video out | CCIR | |
|
Remote control |
RS422 | |
|
Detection range |
Human | 2500m |
| Vehicle | 3000m | |
|
Recognition range |
Human | 1000m |
| Vehicle | 1500m | |
2. CCTV Camera Specification：
CCD：720*576
Focus lens ：300mm
| Detection range | Human | 4500m |
| Vehicle | 5000m | |
| Recognition range | Human | 1500m |
| Vehicle | 2000m |
| Item | Technical Parameter |
| Wavelength | 1.06μm |
| Type of laser | Nd:YAG |
| Type of detector | APD |
| Detecting range | 10km |
| Detecting accuracy | ±5m |
| Repetition frequency | 10ppm（Typical），1Hz（Urgent） |
| False alarm rate | ≤3% |
| Data interface | RS422 |
| Power supply | 24VDC |
| Working temperature | -30℃～+60℃ |
| Weight | ≤1.1 kg |
| Size | ≤120mm×110mm×70mm |
|
Pls note that the accuracy of laser rangefinder has two more options,one is±2.5m， the other is ±1m. |
|
