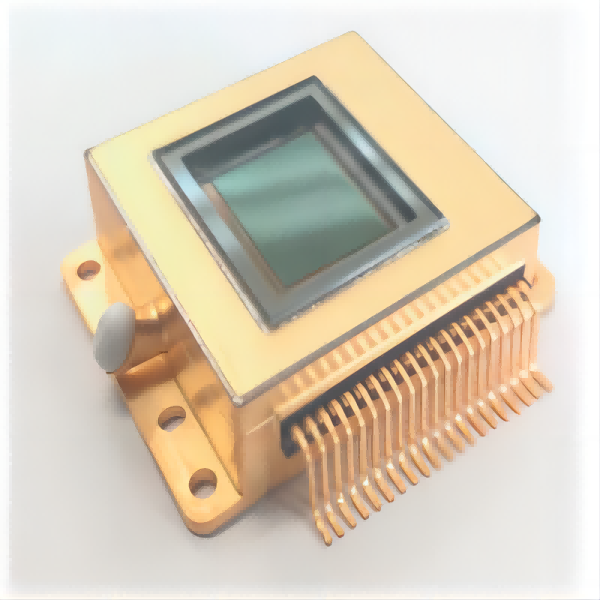

640×512/15μm InGaAs Short WaveInfrared FPA Detector
Application fields: It can be used in night vision imaging, border inspection security, industrial and agricultural inspection, satellite remote sensing, biomedicine, environmental monitoring, spectral analysis, astronomical observation, forest fire prevention, etc.
640×512/15μm InGaAs Short WaveInfrared FPA Detector
Product features: high quantum efficiency, high detection sensitivity, low readout noise, free window opening, metal tube and shell vacuum integrated package, work at room temperature and near room temperature
Main parameter:
parameter
Index
Detector specifications and pixel center distance
640×512/15 μm
effective pixel rate
≥99.5%
Response rate non-uniformity
≤5%
Spectral Response Range
0.9 μm-1.7 μm (scalable to 0.4μm response)
Full frame maximum frame rate
≥300Hz@8 channels (window: above 1000Hz)
ROIC read noise
20e-@HG
peak quantum efficiency
≥75%@1550nm
Integral mode
ITR or IWR
Function
Window opening in any position, internal CDS
Package form
Metal Vacuum Encapsulation, Level 2 TEC, Weight 17g
