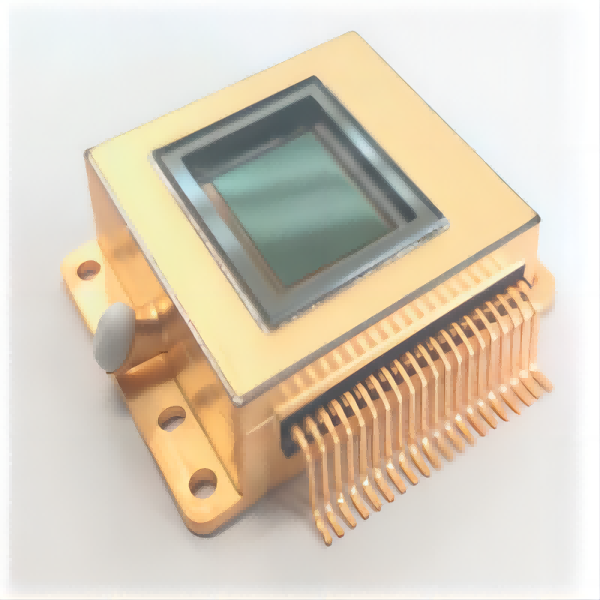

Digital 1280×1024/10μm InGaAs Short Wave Infrared FPA Detector
Application fields: short-wave infrared imaging, spectral analysis, etc., can be used for night vision imaging, border inspection security, industrial and agricultural inspection, satellite remote sensing, biomedicine, environmental monitoring, etc.
Digital 1280×1024/10μm InGaAs Short Wave Infrared FPA Detector
Product features: Built-in 14/15bitADC, digital output, high quantum efficiency, high dynamic range, high detection sensitivity, metal tube shell vacuum integrated package, work at room temperature and near room temperature
The main parameters
|
Parameters |
Index |
|
Detector specifications and pixel center distance |
1280×1024/10μm |
|
Effective pixel rat |
≥99.5% |
|
Response rate non-uniformity |
≤6% |
|
Spectral Response Range |
0.9μm-1.7μm |
|
Full frame maximum frame rate |
≥60Hz@4 channels |
|
Quantization bits |
14bit/15bit |
|
Peak quantum efficiency |
≥75%@1550nm |
|
Dynamic Range |
≥80dB |
|
Typical peak detectability |
5×1012cm.√ Hz/W |
|
Package form |
Metal vacuum pack with built-in TEC, weight 19g |
