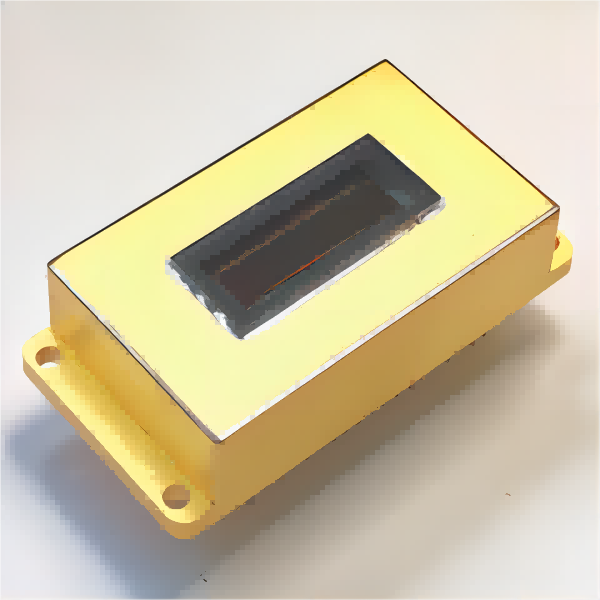

1024×1/12.5μm/512×2/25μm InGaAs Short Wave Infrared LineScan Detector
Application areas: industrial and agricultural testing, product sorting, spectral analysis, environmental monitoring, etc.
1024×1/12.5μm/512×2/25μm InGaAs Short Wave Infrared LineScan Detector
Product features: multi-level gain, high line frequency, low temperature drift, high detection sensitivity, and work at room temperature
The main parameters
|
Parameters |
SWL1024-ACME |
SWL512-ACME |
|
Detector specifications and pixel center distance |
1024×1/12.5μm |
512×2/25μm |
|
Blind number |
≤5, no consecutive blind elements |
≤3 in a single row, no consecutive blind elements |
|
Response rate non-uniformity |
≤4% |
|
|
Spectral Response Range |
0.9μm-1.7μm |
|
|
The highest line frequency of the whole frame |
≥35KHz@2 channels |
|
|
peak quantum efficiency |
≥75%@1550nm |
|
|
Integral mode |
ITR or IWR |
|
|
Function |
Internal CDS, direction adjustment, 16-level gain |
|
|
Package form |
Metal/ceramic package |
|
