» Boot time less than 3 seconds

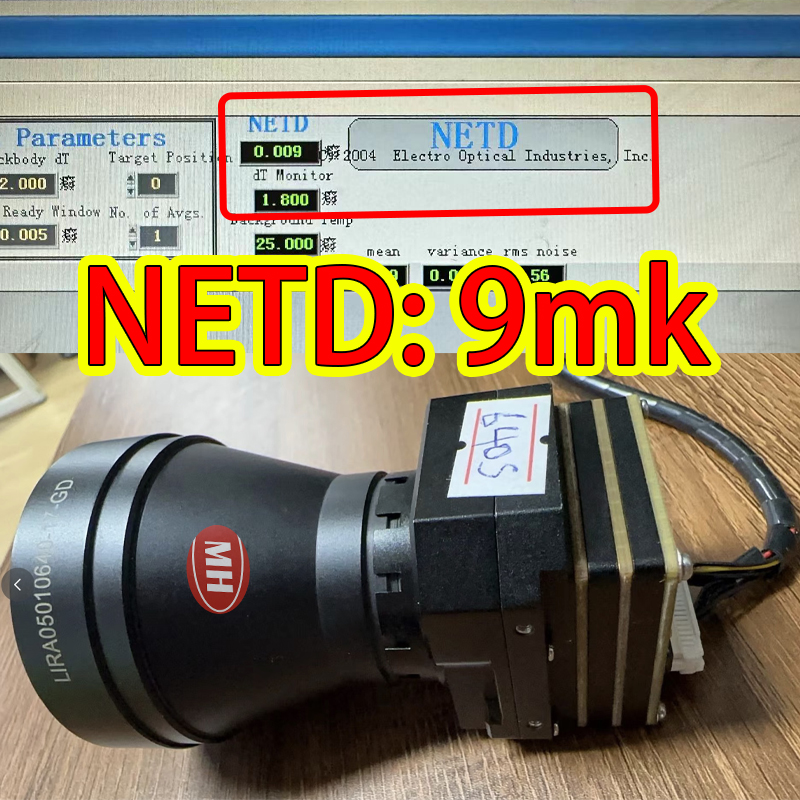

» NETD:≤18mk @300k f1.0
» Lowest power consumption less than 1.5W
» Unique shutter imaging algorithm
» Optical auto focus and continuous zoom function
» LVDS digital data output & analog video
Application Range
MH-S6 NETD 18mk applies to the specific requirements of the system and integrated camera. Vehicle Monitor Telescope Helmet
| Type | MTS18 | |
| Detector | Detector type | Uncooled amorphous silicon FPA（No-TEC） |
| FPA format /Pixel pitch | 640x480 25 um | |
| NETD | ≤18mk at f/1.0 300K | |
| Frame rate | 50Hz | |
| Spectral range | 8~14um | |
| Image processing | calibration | With shutter |
| Start-up time | ＜3s | |
| Image enhancement | DDE | |
| Image display resolution | 768×576 | |
| Image frame rate | 50Hz（PAL） | |

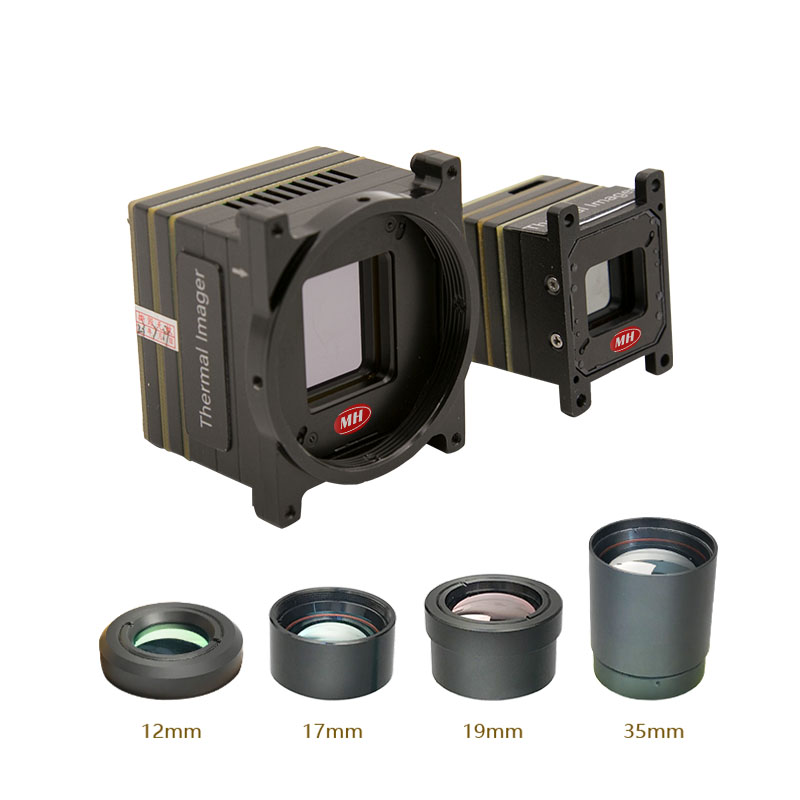

| Lens | 17mm,19mm,25mm,35mm,50mm | |
| Controls | Polarity | Black hot/white hot/color |
| Zoom | 1x, 2x, 4x | |
| Brightness | Auto+manual | |
| Contrast | Auto+manua | |
| Image reversal | Horizontal/Vertical | |
| Crosshair | YES | |
| Power | Operation Voltage range | DC: +2.5V~+15V |
| Power consumption | ＜0.9W | |
| Reverse connect protection | YES | |
| Over/Under Voltage protection | YES | |
| Environment | Operation tempreture range | Commercial :-20ºC~+60ºC |
| Option:-40ºC~+60ºC | ||
| Non-operation tempreture range | -45ºC~+65ºC | |
| Humidity | 5%~95% Non Condensing | |
| Physical Attributes | Weight | 75g(without lens) |
| PCB size | 44.5X44.5X34mm | |
| Interface | External Power supply | YES |
| Digital Video output | LVDS | |
| Analog video output | YES | |
| Communication | RS-232/RS-485 | |
