Intelligent dual-light infrared temperature screening system
MH-NB500 infrared body temperature screening system is a non-contact efficient temperature measurement system and screening device which specially designed for dense crowds in public places. Based on the accurate temperature measurement technology of the thermal imaging camera, it is can timely detect the people who with abnormal body temperature and then output alarm signal, so that can assist the supervisory authorities to implement the interventions and emergency measures, to prevent the spread of the virus in public areas.


Intelligent dual-light infrared temperature screening system

Advantages of MH-NB500:

1) Full-time work: 24 real-time rapid body temperature screening, Early warning intervention. 2) High Security of MH-NB500 : Infrared non-contact temperature measurement, reduce the risk of cross infection 3) Highest Efficiency: It is can detect multiple people at the same time. 4)HighestAccuracy: High-precision non-contact temperature measurement, error less than±0.3℃, to realize this accuracy and keep the image stable, the black body is very necessary.

Intelligent dual-light infrared temperature screening system

Advantages of MH-NB500:

1) Full-time work: 24 real-time rapid body temperature screening, Early warning intervention.
2) High Security of MH-NB500 : Infrared non-contact temperature measurement, reduce the risk of cross infection
3) Highest Efficiency: It is can detect multiple people at the same time.
4)HighestAccuracy: High-precision non-contact temperature measurement, error less than±0.3℃, to realize this accuracy and keep the image stable, the black body is very necessary.

Intelligent dual-light infrared temperature screening system

5) Intuitive: high-resolution infrared imaging with large scenes, it is can accurately locks people who with abnormal body temperature.
6) Automatically saves the image of the individual with the high temperature. This enables you to easily locate and further screen that person without causing any concern.
7) Intelligent dual sensor: Intelligent algorithm for visible camera system and thermal imaging camera system, face detection, accurate temperature measurement, low false alarm.
8) Intelligent Alarm: Support temperature threshold setting and automatic screening warning mechanism, real-time alarm for abnormal body temperature.

Intelligent dual-light infrared temperature screening system

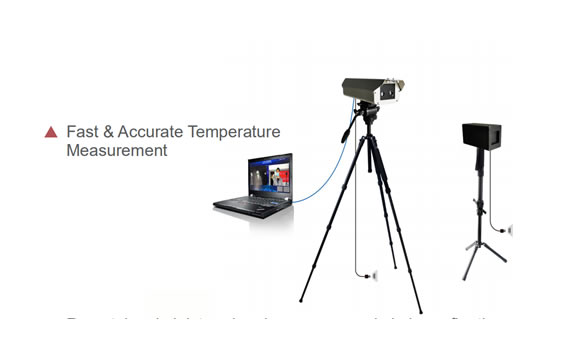

9) Easy deployment: One set thermal camera and one ordinary PC can constitutes a small temperature measurement station, supporting offline and online deployment.

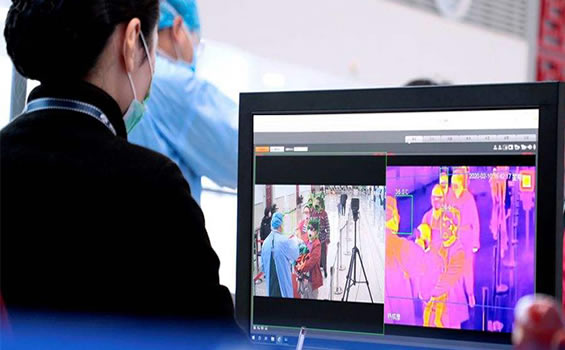

10)Face and Thermal recognition in one display.
11)Can be administered remotely.
12) Cost effective: Cheapest price in such high quality automatic fever detection system.

Intelligent dual-light infrared temperature screening system

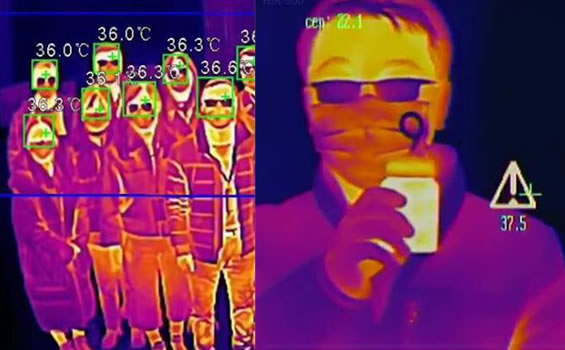

Infrared full-field real-time temperature measurement, multi-target real-time temperature measurement function;
Equipped with standard blackbody reference, high precision of human body temperature measurement, strong environmental adaptation;

Intelligent dual-light infrared temperature screening system

Temperature detection +AI face recognition in fast scene of large crowd;
Automatic identification, screening, early warning and statistical functions;
Personnel trajectory analysis and real-time outbreak upload function;

Specifications

Specification:



Type


Entry

Specification


Detector

Resolution

384×288

Pixel size

17um

NETD

≤0.05℃


Infrared

camera


Focal length

10.5mm

FOV

34°×26°



Temperature measurement function

Temperature

measurement

range

30℃~45℃

Temperature

measurement accuracy

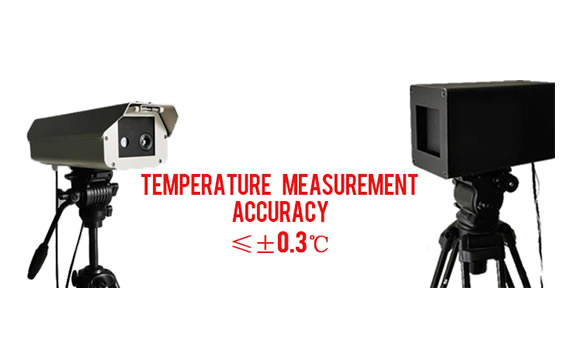

≤±0.3℃(Blackbody calibration)

Temperature

measurem

entdistance

2m~5m

radiance

Adjustable,default0.95

Temperature Alarm



The alarm threshold

Adjustable, default 37.5℃

Alarm way

Icon prompt, sound and light alarm

Visible light

The resolution of the

1920×1080 25Hz

Power supply

The power supply

AC220VPower supply

Interface

standard

RJ-45、USB2.0


Temperature standard

Operating

temperature

10℃~35℃

Storage

temperature

-20℃~+60℃


Product configuration list:


No.

Device name

quantity

Remark

1

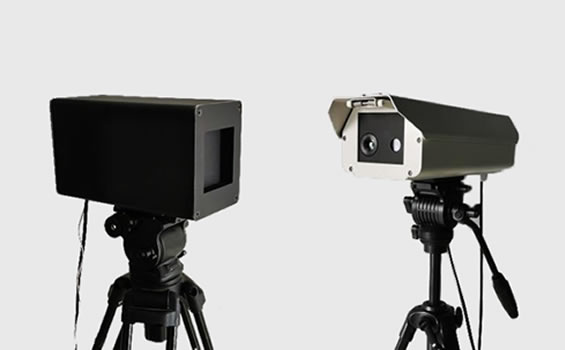

Double light camera

1

Infrared and visible light integrated machine

2

The PC

1

Desktop or laptop

3

The outer blackbody

1

Accuracy of±0.15

4

The tripod

2

Install infrared camera and standard black body

5

Temperature analysis software

1

Computer pre-installed
