MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

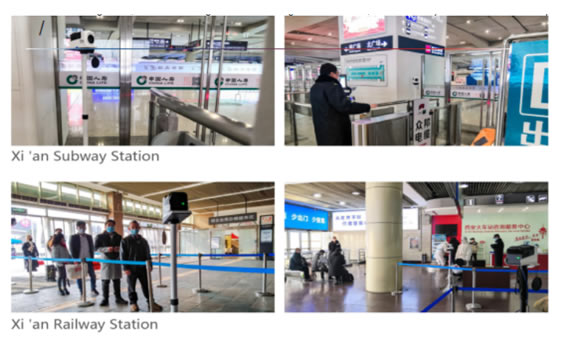

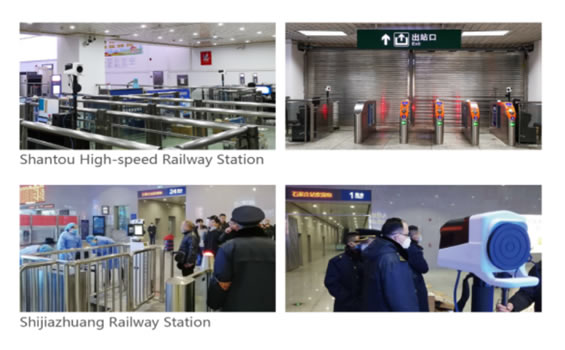

MH-ST384 Intelligent IR Thermal Imager for Human Temperature Screening is mainly used for the body temperature measurement of personnel in crowded areas such as railway stations, subway stations, airports, hospitals, factories, shopping malls, supermarkets, hotels, schools, stadiums and other public places with large floating population. The body temperature can be checked quickly without deliberately staying, which greatly improved the detection efficiency.


MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

Do you need the thermal camera with black body or not? With black body ,the accuracy is 0.3℃, without black body accuracy is 0.5℃. Now the train, government, office, hospital and school, use a lot of our products , and our products best in China but cheapest, we are state-owned factory, not focus on profit but win the war against virus.

MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

1. 300+ / Monitor human flow every minute

Compared with ordinary handheld thermometer, the detection efficiency is high, up to 300 person-times per minute;

MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

2.0.5S / Responsive speed

After the occurrence of abnormal temperature, can automatically alarm and evidence;

MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

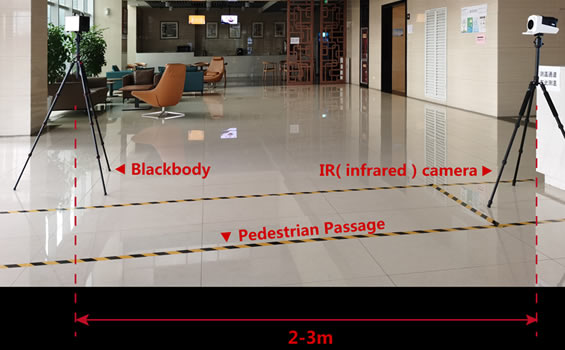

3.≤3M / Temperature measuring distance

The monitoring distance can be up to 3 meters, which can effectively reduce the contact with the tested personnel and avoid infection;

MH-NB384 THERMAL IMAGING HUMAN TEMPERATURE SCREENING SYSTEM

4.>99.9% / Data accuracy

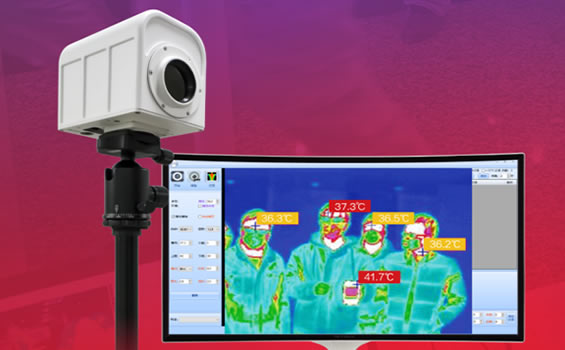

AI face-detection algorithm, which can recognize even wearing a mask and hat, can accurately measure forehead temperature without being disturbed by other hot objects.

Specifications

Product model MH-NB384
Basic parameters
Detector Uncooled Focal Plane
Working Wavelength 8um-14um
Resolution ≥384×288
NETD <50mK
Image Frame Frequency 25Hz
Functional Parameters
Temperature measurementrange 28℃~42℃
Temperature measuring distance
2m~3m
Temperature measurement accuracy MH-ST384, excluding black body
+0.5C excluding black body
+0.3'C including black body
Viewing Angle 33.87°×44.27°(error is not greater than
±5%)(typical value)

Weight
≤0.9kg

Video Output andCommunication Intertace

Gigabit Ethemet interface
Power Supply DC12V,<1.5a
Dimensions 136mm x108mm x95mm
Environmental Adaptability
Operating Temperature 16℃~32℃
Relative Humidity No greater than 70%
Transport Requirement To meet the vibration requirements of
class 3 highway transportation
