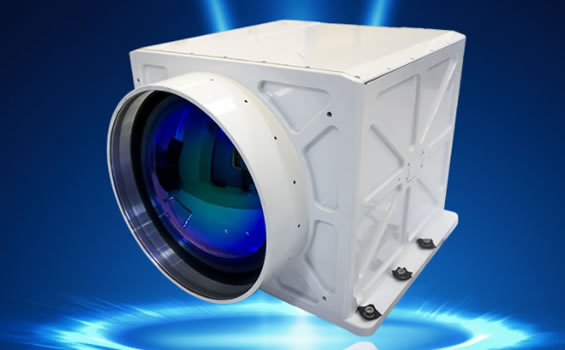

Large aperture continuous zoom MWIR thermal imager

Large aperture continuous zoom MWIR thermal imager
Large aperture continuous zoom MWIR thermal imager is composed of large aperture continuous zoom lens and ultra-high sensitivity detection module. The super large aperture continuous zoom lens has 10x magnification, which can be used for long-distance target observation and large field of view search; the detection module adopts intelligent image processing algorithms such as adaptive multi background nonuniformity automatic correction technology, image noise filtering, image enhancement, automatic dimming, etc., to ensure high sensitivity and sharp video images. Adopt anti vibration and shock, high and low temperature resistance, sealing treatment and other design means to ensure high reliability and high sealing performance of products. It can be used in photoelectric theodolite, photoelectric turret and other platforms, and can be customized for wide spectral range (3.7 μ m ~ 4.8 μ m) and high frame rate (≥ 100Hz).

Product features

· It is the first large caliber continuous zoom lens in China, with a maximum aperture of φ 314mm；
· The optical axis is stable, less than 2 pixels；

· High sealing performance, up to IP66；
· Adaptive nonuniformity correction technology
· Intelligent image processing algorithms such as image noise filtering, image enhancement, automatic dimming, etc

· The working temperature range, vibration shock and other environmental adaptability meet the requirements of national military standards

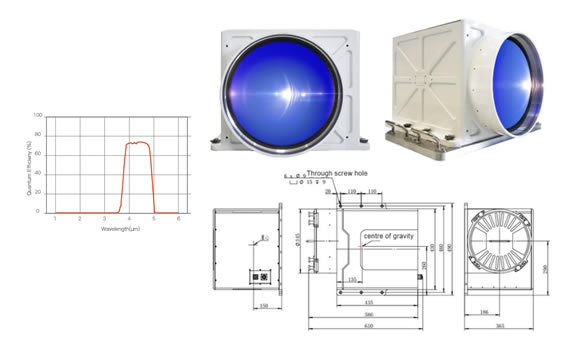

· Spectral response curve of detecto

Model	MH-MWIR640
imaging performance
Resolution	640*512
pixel size	15 um
F	2.0
focal length	60mm~600mm continuous zooming
Detector material	MCT
Band
Detector NETD	≤20m@f2.0,25℃
Cooling mode	Stirling refrigeration
Cooling time	≤7min @25°
Function
Frame rate	1Hz~100Hz(Customizable)
Integral time	Manually adjustable
Electronic amplification	2X
Bringhtness /contrast	Manual /automatic
synchronization	internal synchronization / extemal synchronzation,1hz-100Hz(customizabl)
Image algorithm	Nonuniformity correction, image filtering deteil enhancement, blind pixel correction, black heat,digital nois reduction
image	Horizontal,vertical,diagonal
Power supply protection	Over voltage,over current,under voltage and reverse connection protection
Environmental adaptability
working temperature	-40°C~+60°C
srorage temperature	-40°C~+70°C
shock	30g, 11msHalf sinusoidal distribution
vibration	6g, 5min, triaxial
humidity	5%~95% Non-Condensing
Physical characteristics
Sensor dimension	≤588mm×492mm ×365mm(Withoutconnec lector and cable)
weight	≤55kg
Lens interface	Customizable
Interface
Input voltage	DC24V±1V
Power consumption	peak value:≤45@25℃ stable:s20w@25℃
Video output	PAL/CL Optional
communication ation intertace	RS422

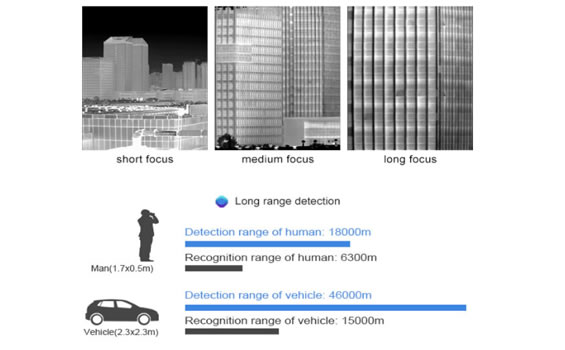

Long range detection
for human (1.7*0.5)	Detection range: 18000m
for human (1.7*0.5)	Recoanition range: 6300m
For vehicle (2.3x2.3)	Detection range: 46000m Recognition range: 15000m
