MHNV®️NVGs Gen3 Night Vision Goggles thermal imaging goggles

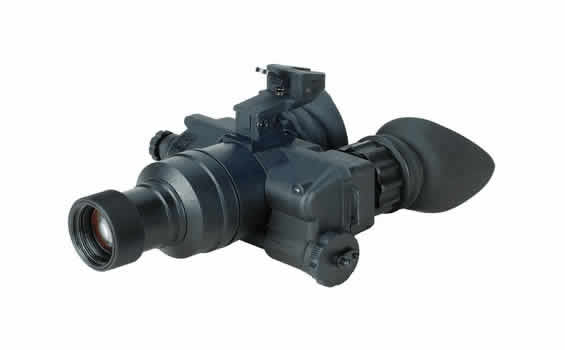

MHNV NVGs is EU Gen3 lightweight, rugged and a top level performer the night vision goggles and Military Grade Optics, which is an excellent choice for hands-free or handheld usage. This model features high resolution image intensifier, auto-brightness, and bright source shut-off. MH-NVGs goggles also have a built-in IR for total darkness with indicator ON light within the FOV and flip.It use One CR123A which is very easy to buy.


Gen3 Night Vision Goggles

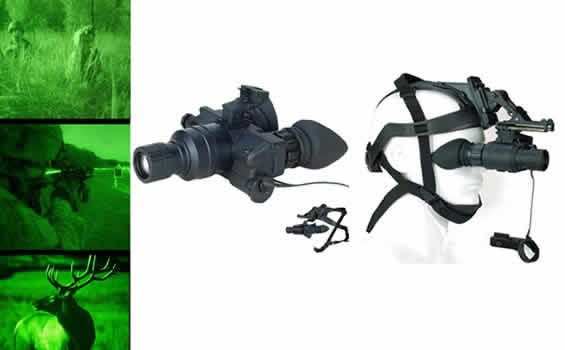

MHNV®️ night vision goggles have become some of the most time tested and field proven available on the market today. These night vision goggles are standard issue to the army of ground troops. The army in the world requires only the best night vision goggles, and that’s why they turned to the MH’s. MHNV night vision goggles helmet mounted, head mounted or hand held, these goggles are among the most configurable out there on the market today, making them perfect for someone who needs to wear a lot of hats, being the brave soldiers on the battlefield, law enforcement and security personnel keeping order and peace back at home, and everyday civilians or hunters.

Gen3 Night Vision Goggles

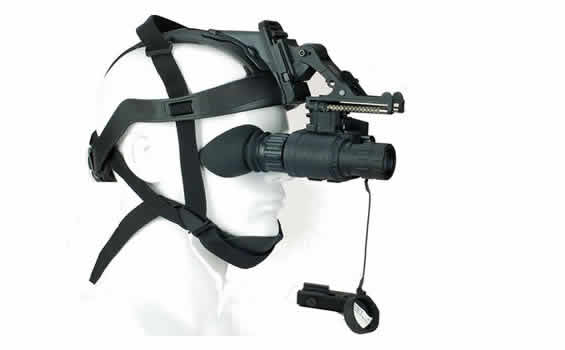

MHNV-NVGs is the military standard head/helmet mounted goggle for ground forces to conduct night operations. Using the latest 2nd+ and higher generation Gen3 image intensifier tubes the MH-NVGs will perform in the darkest of nights. The system has a built-in IR Illuminator for no light operations and a high light cut off sensor for any sudden burst of bright light for protection.

Gen3 Night Vision Goggles

KEY FEATURES

-Lightweight
-Easy to operate
-Bi-ocular design
-Comfortable for extended surveillance
-Designed for prolonged wearing
-Automatic brightness control
-PASGE and ACH/MICH helmets mountable allowing for “hands-free” operation

-Photo/Video camera adaptable(optional)
-Internal “low battery” and “IR on” indicators
-Protected against excess light exposure
-Integrated (5mW) IR illuminator
-Waterproof, corrosion and dust-resistance.
-May be equipped with a wide variety of optional accessories including 3x. 4x, 5x, 7x or 8x magnifier lens, demist shield, sacrificial window and head gear.

Specifications


Specification of Gen3 night vision goggles
1x lens
Specification
Model MHNV-NVGs
Magnification 1x
Lens system 26.8mm, F/1.2
FOV (Degree) 40
Focus range, m 0.25 to infinity
Adjusted interpupillary
distance
Yes
Eye relief distance,mm 15
Detection range 220-300m
Power supply 1CR123A typebattery, 3V
Diopter setting, D +5, -6
Dimension, mm 160x150x75mm
Weight 500g

Operating temp. -40℃to + 50℃
Humidity, % at 25℃up to 98%
Shock resistance 5g
IP Level IPX4
IR-ON indicator Yes



Specification of Gen3 night vision goggles
3.5x lens
Specification
Model MHNV-NVGs
Magnification 3.5x
Lens system 80mm, F/1.57
FOV (Degree) 14
Focus range, m 10m to infinity
Adjusted interpupillary
distance
Yes
Eye relief distance,mm 15
Detection range 400-500m
Power supply 1CR123A type battery, 3V
Diopter setting, D +5, -6
Dimension, mm 212*150*75mm
Weight 700g
Image Intensifier Tube



Environmental Data
Operating temp. -40℃to + 50℃
Humidity, % at 25℃up to 98%
Shock resistance 5g
IP Level IPX4
IR-ON indicator Yes
