MH-GPNVG Ground Panoramic Night Vision Goggle (GPNVG)

Night vision goggles can provide users with an incredible advantage on the modern battlefield.For enemies who don’t realize you exist without such equipment, being able to observe and engage with it is a terrible weapon in itself. The global war on terror has accelerated the development and application of night vision technology. Wide desert areas, high-altitude mountains, urban areas, and even tropical areas, pose different challenges to the observation equipment of soldiers in different combat areas.

For night vision goggles on the market today, image intensifiers provide users with an almost daytime-like scene in dark environments, but the most obvious limitation is that the available field of view (FOV) is relatively small. Whether single tube or double tube, it is still limited by the field of view of 40°. Although the equipment can be effectively applied at a field of view of 40°after effective training, it is still not ideal in certain specific situations. This is like looking at the outside through a toilet paper core. The operator must keep his head turned left and right. The night vision goggles continuously scan the surroundings to obtain more environmental information. This scanning must be slow and smooth to avoid missing any information.

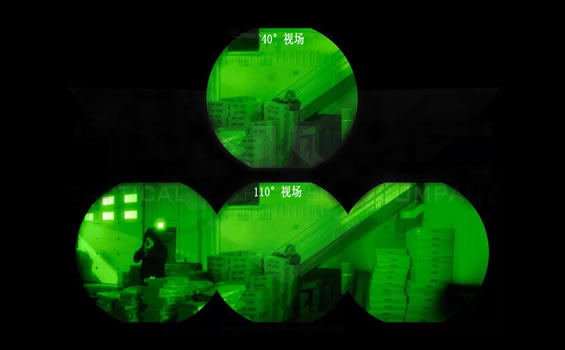

In this case, we developed one of the biggest innovations in night vision technology, MH-GPNVG ground panoramic night vision goggles. It can provide an unprecedented 110°(horizontal)×40°(vertical) ultra-wide field of view, showing users very important field of view information.The purpose of MH-GPNVG ground panoramic night vision goggles is to present more environmental information to the user, allowing the user to take ODDA (observation, adaptation, decision, action) actions more quickly when performing tasks.

MH-GPNVG Ground Panoramic Night Vision Goggle (GPNVG)

The role of night vision goggles is to allow you to see at night. It is very simple. The more you see, the better it is for you. At night, MH-GPNVG ground panoramic night vision goggles can provide operators with the same field of view as during the day, enabling them to do more. MH-GPNVG ground panoramic night vision goggles provide modern combatants with more combat options and enhance their combat capabilities.

In indoor special warfare operations, it is not necessary to continuously scan as before, which greatly improves the speed and efficiency to complete the task, thereby protecting the operator and being safer. Outdoors, because visibility can greatly improve the use of night vision goggles, it is clear that the panoramic effect in open terrain can provide more information to the operator, which makes terrain navigation easier. Since people's attention will be unconsciously attracted by moving objects at night, MH-GPNVG ground panoramic night vision goggles can prevent the operator from turning his head frequently when observing,this advantage greatly improves operator safety.

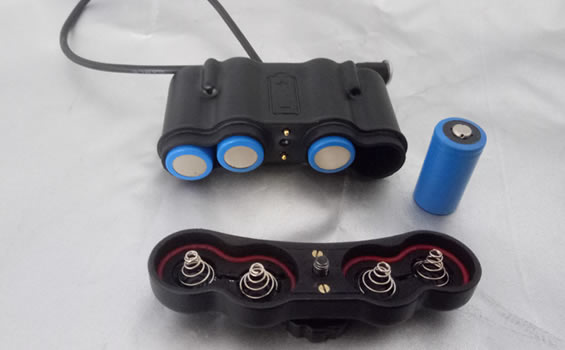

MH-GPNVG ground panoramic night vision goggles are powered by a separate power box and connected by cables. The power supply box can accommodate 4 pieces 3.75V CR123 batteries, which can be used continuously for about 40 hours. Considering the weight of the night vision goggles is about 700 grams, therefore, a separate power box is used as a counterweight.

Using night vision goggles is not the same as in some movies. Using night vision goggles is not the same as in some movies. A person equipped with high-tech equipment carries night vision goggles and sees the external situation like ordinary scenes, he broke into the door, or used a rope to enter the window, clearing complex enemies inside or outside very quickly. The fact is: when you wear traditional night vision goggles, fighting in tight spaces is not a good place. Night vision goggles are worn to enable operators to understand the details of the house as soon as possible, reach control points in the house to cover teammates, identify all possible threats, identify their threats, and take appropriate action. The main idea is to let as many weapons as possible enter the house and completely control the situation with overwhelming power. What's more, the operator needs to get the most information in the shortest time, usually only a few seconds. The bottom line of the action is that when the team member enters the room, the enemy must be cleaned up within a few seconds, and it is almost impossible to complete it safely with traditional glasses, because the amount of information obtained through the 40°field of view is too little and too much slow.

With MH-GPNVG ground panoramic night vision goggles, the enforce ability of indoor cleaning work becomes better. As soon as the door is broken, the battle begins, and every detail in the room, no matter how subtle, will be immediately noticed and processed. Of course, soldiers need to find threats and deal with them first, so threats are dealt with quickly. To quote the phrase "You must find the enemy first, shoot the enemy first", the soldier must filter and analyze the situation behind the door he sees in a very short time, and ensure that the enemy can be found and killed before firing. The soldier had to filter and analyze the situation behind the door he saw in an extremely short period of time, and ensure that he could be spotted and killed before the enemy fired. In special forces, everyone is a sniper, and speed is the most important. If you can't deal with the threat right away, you're in big trouble. Obviously, it is vital to see as much capability as possible.This is precisely MH-GPNVG ground panoramic night vision goggles can do that. Walking through the door, you might have seen only one through the toilet paper tube before, but now you can see as many threats as you can. Traditional night vision goggles require a large number of scanning observations by turning the head. When entering a room that may be crowded with dangerous elements, you must fully think and plan. And turning your head so frequently and quickly may cause you to miss something. After all, the world under the night vision goggles is all green, and things must be distinguished by contrast. The real world is not like a shooting training room. The room is usually full of scattered debris, garbage, furniture, and other various wastes, under night vision goggles will be mixed together, especially when you can't see clearly and need to focus the night vision goggles. Maybe I need to turn my head within 90°to scan the fan-shaped area in front of me, and find some possible threats, and I may not even see a person, but at this time I was hit by someone outside my sight. This is really a bad thing. However, by wearing MH-GPNVG ground panoramic night vision goggles, you can see a wide field of view without turning your head around when entering the room. You can immediately find interested people, and immediately determine whether they are threatening.

Main technical parameters ofMH-GPNVGpanoramic night vision goggles

	Technical Parameters
Host dimensions	110 (L)×230 (W)×88 (H) mm
Host weight	<720g
Power box weight	＜80g (without battery)
Helmet attachment mechanism weight	＜280g
Exterior	Black (or manufactured according to user requirements)
power supply	4 CR123 lithium batteries (or CR123Arechargeable lithium batteries)
operating hours	＞30 hours
Operating temperature	-40℃~ 50℃
Low light device	Super second-generation 18mm low-light image intensifier
Resolution	55lp / mm
Gain control	automatic
Magnification	1×
Field of view	110°(horizontal)×40°(vertical)
Exit pupil diameter	7mm
Exit pupil distance	20mm
Interpupillary distance adjustment range	58-72mm
Focusing range	1m ~ infinity
Vision	-1 diopter (fixed)
Tightness	1 meter water depth, 2 hours
