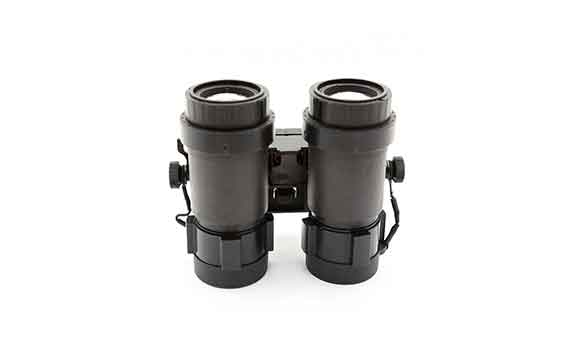

Aviation Pilot Helmet Binoculars type Night Vision Goggles
The objective lens is coated with special C film for aviation equipment, which allows you to see the data on the dashboard while using a night vision device.
Aviation night vision goggle
Enhanced image intensifier tube with White Phosphor and Green Phosphor tube according to users requirements.
Aviation Pilot Helmet Binoculars type Night Vision Goggles
Ergonomically designed interface controls including inter-pupillary and vertical/foreaft/tilt adjustments.
|
Model |
ANV-9 |
|
Eneraration Image Intensifier Tube |
2（+） |
|
Magnification |
1x |
|
Field of View |
40° |
|
Resolution |
≥60 lp/mm |
|
F Number |
1 |
|
Signal-to-Noise |
＞20 |
|
FOM |
＞1200 |
|
Cathode Sensitivity |
＞600 |
|
Machine Resolution 1×10-3 Lx |
1.59mrad |
|
Focus Range |
250mm~infinity |
|
Vision Focus Range |
±4D |
|
Optical Axis Parallelism |
Horizontal divergence less than 60 ', height less than 20 ' |
|
Exit Pupil Diameter |
14mm |
|
Eye-relief Distance |
25mm |
|
Eye Distance Adjustment Range |
|
|
Adjustment Range |
16mm front and rear adjustment, 16mm up and down adjustment, 8° pitch adjustment |
|
Power Supply |
3V (2 pieces AA batteries or 4pieces AA batteries) |
|
Continue Working Time |
40hours |
|
Weight (Bare Metal) |
469g |
|
Dimensions |
108×131×93mm |
|

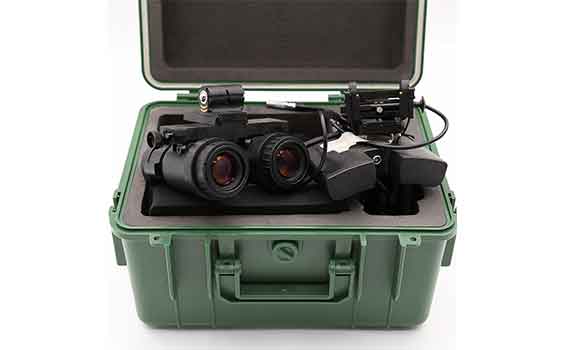

Accessories |
Pilot night vision goggles x1 |
|
Bracket for TK41 helmet x1 |
|
|
Batterybox x1 |
|
|
Cleancloth x1 |
|
|
Cafetybox x1 |
