MH-S67 Sniper detection

MH-S67 anti-sniper detection system is a modular, flexible and integrated reconnaissance system,which is widely used for maximum capabilities intarget detection for: 1)Executive and VIP protection 2)Protection of critical infrastructures 3)Special Forces combat operations 4)Sniper detection 5)Counter sniper 6)Perimeter intrusion detection 7)Border control and protection 8)Facility protection 9)Vehicle detection 10)Surveillance detection 11)Counter-surveillance operations 12)Counter-intelligence operations

The routine work flowof the equipment is as follows

1) Through the remote control of PTZ movement by military reinforced portable computer, the imaging reconnaissance of the surrounding environment of the equipment is carried out. In the daytime and the night with high ambient light, the TV image is mainly used for patrol, and in the night with extremely low ambient light, the infrared image is mainly used for patrol.
2) When finding buildings or other bunkers that are easy for snipers to hide, start cat eye detection on suspicious areas.The cat's eye detection process is shown in Figure 2-5.

First, adjust the TV imaging field of view to an appropriate size, and then turn on the laser for cat's eye detection. The scanning and transmitting system controls the laser beam to scan and cover the suspicious area, when the laser beam irradiates the suspicious object When marking, the light spot generated by "cat's eye effect" appears on the image, then the suspicious target can be locked, as shown in Figure 2-6.

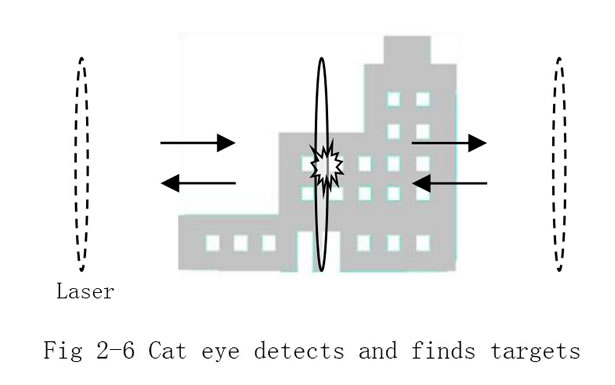

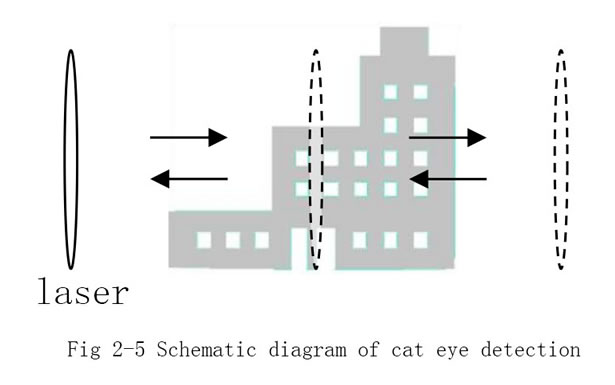

Fig. 2-5 schematic diagram of cat eye detection Fig. 2-6 target detected by cat eye detection
3) When a suspicious target is found, the following operations can be performed:
A) Laser ranging, compass angle measurement and other operations are carried out. Combined with the Beidou coordinate information of the equipment, the position of the target is calculated and positioned;
B) Take photos and video to collect evidence;
C) Glare suppression in VIP security and other emergency situations;
D) Switch to the infrared image to observe the suspected target.

Advantages & Functions:

1)Detection of optical and electro-optical devices in the range to 2000 meters.

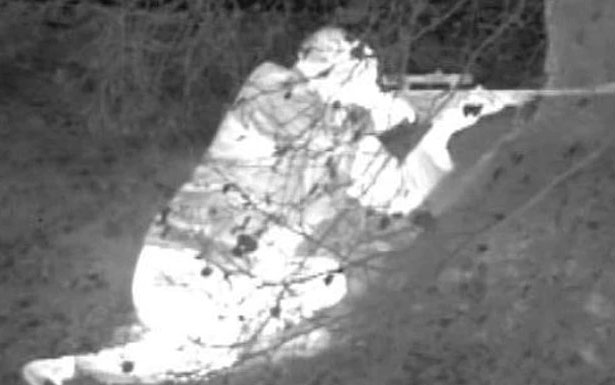

2)Day/night surveillance through fog, smoke, dust and against opposite light-striking.Longer thermal detection range, clearer night vision images,up to 5000m, adapting thermal sensor 640*512,focus lens 120mm, f1.0

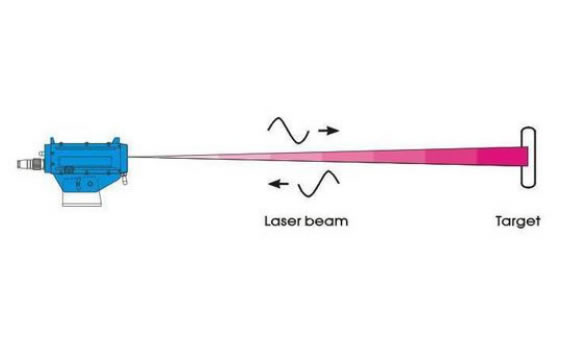

3)Longer laser ranging, up to 2500m
4)GPS / Beidou Positioning
5)Compass orientation

6)Dazzling laser (optional)

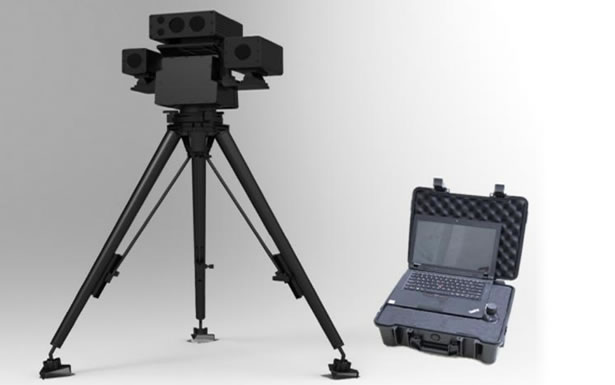

7)Remote control with Military ruggedized portable computer

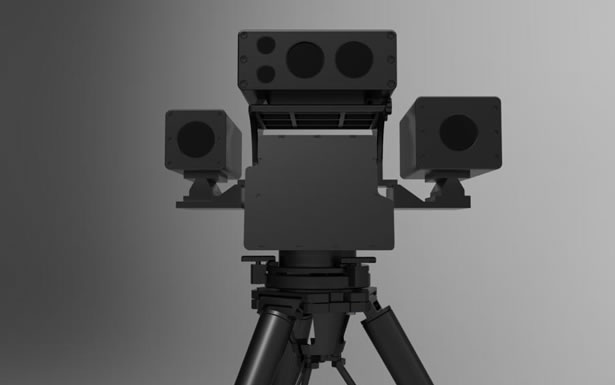

8)PTZ
9)Take photos and videos,storage capacity up to 200G
10)Wide temperature operation
