Highlightingthe non-luminous heating object

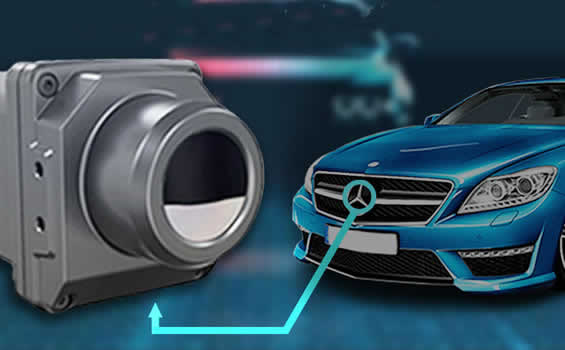

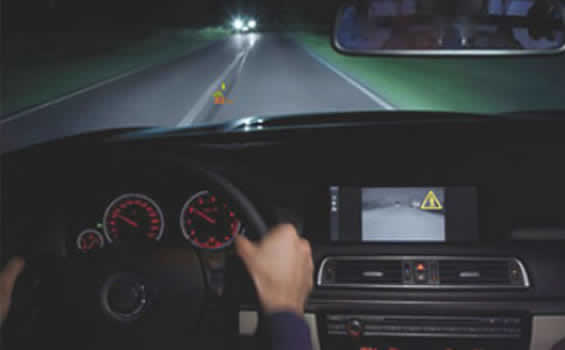

The night vision thermal image system can autom atically recognizes and high lights non-luminous heating object such as pedestrians, cyclists, vehicles and animal under all weather conditions. It can help the driver observe the object that can’t be seen clearly when the headlight is turned on.

Longer detection distance

The far infrared night vision thermal system can detect 300m under good visible condition. While the detectable distance, under bad weather (rain, fog, haze, dust, etc.), will shorten accordingly. The irradiation distance of asymmetric beam is about 90m beside the opposite road. The irradiation distance is about 150m alongside the road. Even if the high beam is turned on, the irradiation distance is only 200m, which is shorter than the effective detectable distance of night vision system. Be

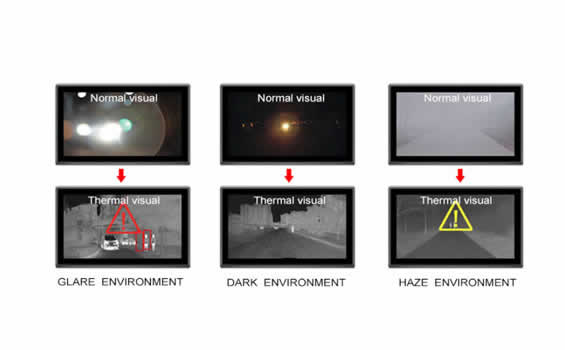

Anti-glare function

The NV system form the corresponding image by capturing external infrared radiant energy, so when meeting oncoming vehicle, the high beams on the coming vehicle don’t have influence to the infrared imaging, efficiently reducing traffic safety problems caused by glare for the driver, enhance the 11 driver safety when meeting oncoming vehicle.

All-Weather Proof

Infrared night vision can adapt to a variety of bad weather (rain, fog, haze, dust, etc.), and not affected by the light, suitable for a variety of time period, which could be used under all kinds of weather conditions. Automatic alarm function of the pedestrian vehicle.

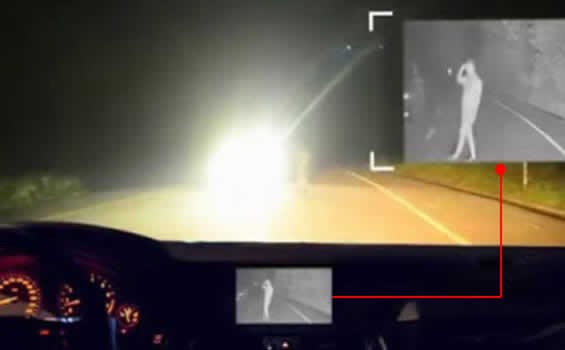

Pedestrian and Animal Recognition function

PSA Night Vision driving assist system could automatically identify and highlight the pedestrian and animal whose size exceeds 50cm inside the infrared image(Animal Recognition function is developing), also could make alarming to the possible collision hazards .The detection model is not only includes the upright walking routine pedestrians in front of vehicle(until 100 m), but also including some cycling, electric cars and motorcycles specially pedestrian.

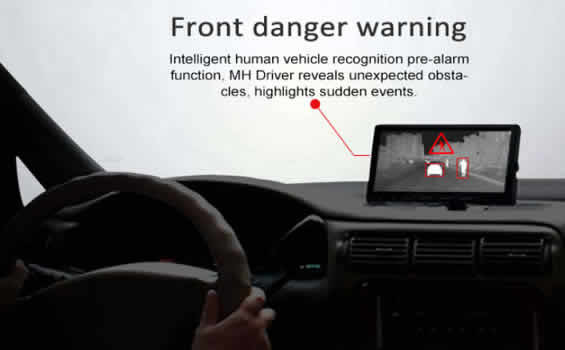

Front Crash Warning

When potential front crash may hanppen, the PSA NV will triger out yellow alarm and blare one alarm sound with the distance 60m~120m to the front vehicle; it will triger out red alarm and blare three alarm sound when the distance approaching to 25m~60m.
