1. Advantages:
1) You can visualize blind spots and benefit from an optimum view of the area in front of the truck in the night .
2) With a rear-view camera on your vehicle, you can always reverse safely

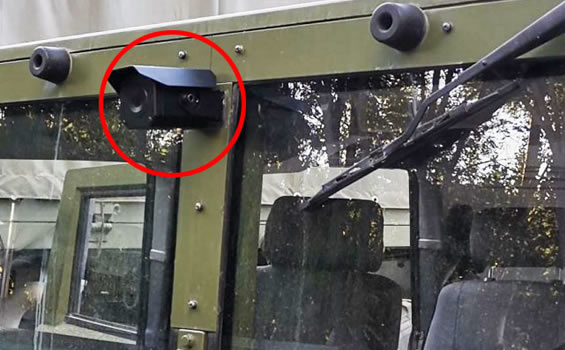

MH-V384 Infrared night vision assisted driving system is a vehicle-mounted visual enhancement observation device. It is a system composed of a variety of advanced sensors, signal processing circuits and optical components, which can observe the front and rear roads in the day and night. The system is equipped with an infrared detector with automatic heating function and a 36°×27° wide field of view, which can provide high-quality high-resolution forward-looking infrared images. At the same time, it is equipped with a CCD with a complementary light design to provide rear-view reversing images. Equipped with modularly installed high-strength cables, twisted-pair wires are used inside, and flame-retardant nylon jackets are wrapped outside to enhance the stability of signal and electrical transmission. Realizes the use of low-light imaging with infrared detectors, no matter in total darkness, haze, high altitude, and cold environment, it can help users better improve the ability to comprehensively process multiple information and data in a timely manner and shorten the response time.
System technical index |
|
Front view Infrared thermal imager |
|
| Detector type |
Uncooled focal plane infrared detector Detector specification 384×288 |
| Spectral Response | 8～12μm |
| Pixel Size | 17μm |
| Image frame frequency | 50Hz |
| polarity | White heat/black heat (optional false color) |
| FOV | 36°×27° |
| Objective lens | f=10mm Athermal lens F# 1.0 |
| Interface | Analog PAL video output; Rs232-c communication |
| System weight | 500g |
| Installation interface | Pitch adjusting bracket |
Rear-view cameraLow-light imager |
|
| Detector | Low Lux CMOS |
| Detector specification | 768×576 FormatPAL |
| Focal length | 35mm |
| CharacteristicAutomatic filling light | |
| Display | |
| specification | 10inch |
| Resolution | 1280×1024 |
| Detection range | |
| Human (1.8×0.5m) | Detection：250m |
| Recognition：100m | |
| Vehicle（2.3×2.3m） | Detection：500m |
| Recognition：200m | |
| Power | |
| supply voltage | 12V～24V |
| power dissipation |
12W（>+2℃）/18W（Less than +2℃infrared lens automatic heating）/33W （Automatic heating for display less than -15℃） |
Environmental suitability |
|
| using temperature range | -30°C～+60°C |
| Storage Temperature Range | -40°C～+70°C |
| humidity | 5%～95%( Non - Condensing) |
| ShockScanning frequency | 5-200-5Hz, G-Force :2.5g |
| Impact | 10g/11ms half sinusoid |

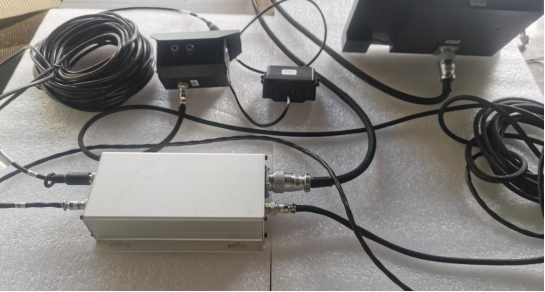

| Attachment Video power cable; 8 ~ 10 inch central control display; Visible light rear view camera | |
4. accessories
