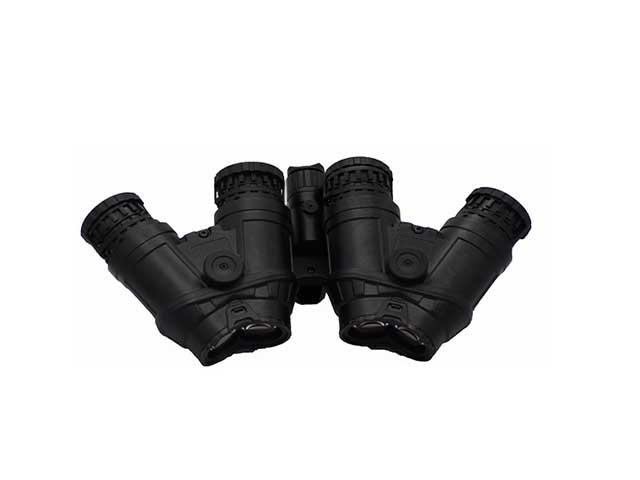

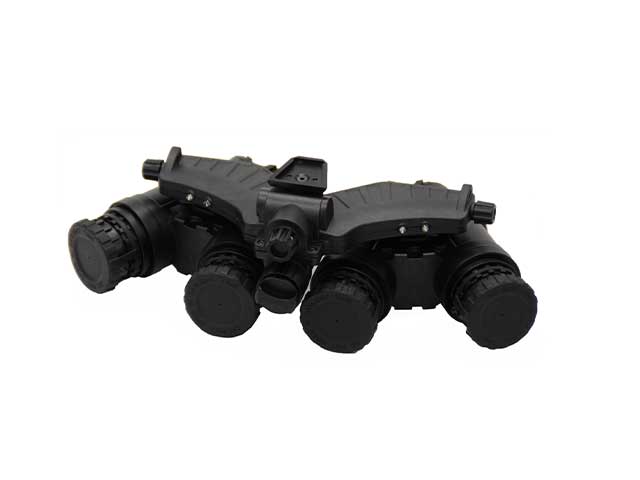

With the new technology, developed a new Ground Panoramic Night Vision Goggles which called MH-Q120, The purpose of the MH-Q120 is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the MH-Q120 is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, gi
The MH-Q120 is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 880g..
Night Vision Goggles
Head strap mount with IPD bracket
Carrying Case or hard case (optional)
Shoulder strap
Manual
Lens cleaning
|
Model |
MH-Q120 |
|
Structural mode |
Helmetedflip-up/down four-eyed NVG |
|
Battery type |
Lithium battery (cr123Ax1) / cr123Ax4 external battery pack |
|
Power supply |
2.6-4.2V |
|
Installation |

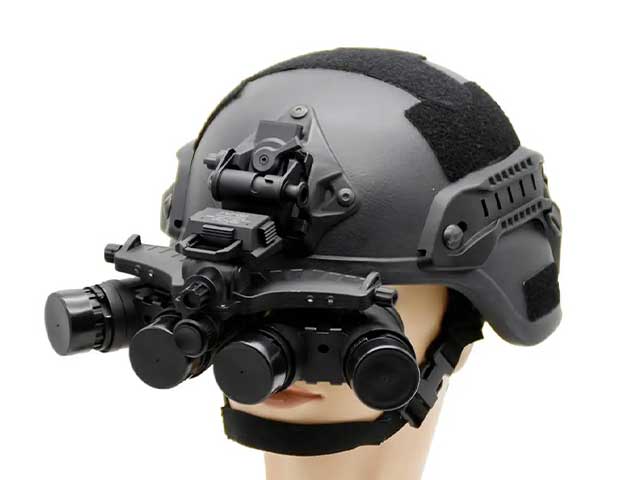

Head mounted(standard American helmet interface) |
|
Control mode |
ON/IR/AUTO |
|
Over power consumption |
<0.2W |
|
Battery capacity |
800-3200maH |
|
Battery life |
30-80H |
|
Magnification |
1x |
|
FOV(°) |
120x50 +/-2 ° Horizontal 120+/-2 ° Vertical 50 +/-2 ° |
|
Parallelism of optical axis |
<0.1° |
|
IIT |
Euro Gen3 |
|
Resolution |
57-64lp/mm |
|
Gain |
Auto |
|
Lens system |
F1.18,22.5mm |
|
MTF |
120lp/mm |
|
Optical distortion |
3% Max |
|
Relative Illumination |
>75% |
|
Coating |
Multilayer broadband coating |
|
Focus range |
250mm-∞ |
|
Focus mode |
Manual focus facility |
|
eye relief |
30mm |
|
Pupil diameter |
8mm |
|
Visibility range |
-1（+0.5~-2.5） |
|
IPD adjust type |
Arbitrary continuously adjustable |
|
IPD adjust range |
50-85mm |
|
IPD lock type |
Manual lock |
|
IR |
850nm,20mW |
|
Working temperature range |
-40--+55℃ |
|
Humidity range |
5%-95% |
|
Waterproof |
IP65/IP67 as optional |
|
Dimensions |
155x136x83mm |
|
Weight |
880G(without battery) |
