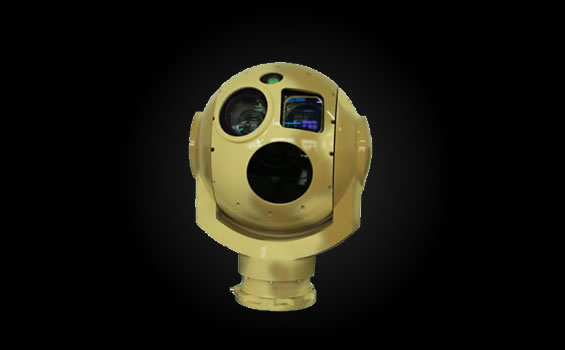

Features and Benefits
1. Reconnaissance detection and identification in the harsh environment and can observe and record in the day and night.
2. Independently serve as a warning and reconnaissance mission
3. Target Ranging is clear and sharp in total darkness, and trough haze, smoke, and light fog.
|
Items |
Parameters |
|
|
Thermal imager |
Thermal sensor type |
640×512Cooled FPA |
|
Spectral band |
3~5μm |
|
|
Focal length |
18~250mmContinous zooming |
|
|
Laser ranging |
Laser type |
1.57μm（eye-safe） |
|
Detection range |
15km |
|
|
Repetition Frequency |
Common20PPM，emergency1Hz（work30s，rest1min） |
|
|
Visual |
Focal length |
20mm~750mm |
|
Resolution |
HD |
|
|
Minimum illumination |
0.01Lux |
|
|
Servo Platform |
Rotary range |
Azimuth：360°×n；Pitching：-54°~+200° |
|
Rotary speed |
0.01°/s≤Minimum speed≤0.02°/s |
|
|
Physical chara cteristics |
Volume（mm） |
≤ |
|
Weigh（kg） |
≤78 |
|
