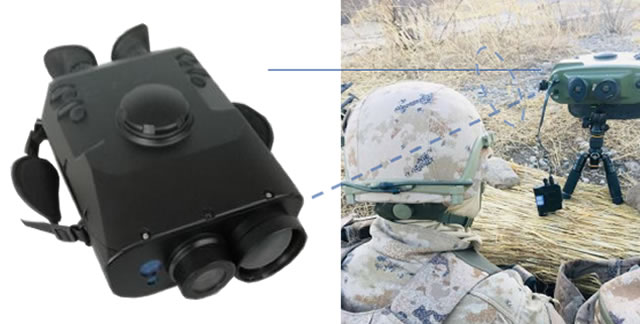

DA-C640 hand-held multifunction cooled thermal camera is a high- performance, multi-functional refrigeration infrared reconnaissance equipment, which integrates reconnaissance, ranging, positioning, orientation and other functions. It can be used to go out and approach the battlefield around, find out the enemy's situation, terrain, observe the observation target and shooting effect, etc.
1 Product description
IRC-26 hand-held multifunction cooled thermal camera is a high- performance, multi-functional refrigeration infrared reconnaissance equipment, which integrates reconnaissance, ranging, positioning, orientation and other functions. It can be used to go out and approach the battlefield around, find out the enemy's situation, terrain, observe the observation target and shooting effect, etc.
uInfrared imaging, visible light through fog/color imaging
uEye-safe laser ranging
uGPS/Beidou positioning, electronic compass orientation, target positioning
uBinocular HD OLED display, eyepiece diopter adjustment, friendly man-machine interface
uPhotographing, recording, playing and video output
(1)Thermal Channel
(a)SensorType:Medium wave cooleddetector.
(b)Resolution:640 x512
(c)Spectral Range:3 ~ 5µm.
(d)FOV:7°x5.2° ~ 2.3°x1.7°.
(e)Focal length:78-240mmcontinuouszoom
(f)Cool down time:≤ 6min.
3.Visible cameraChannel
(a)SensorType:1920*1080 ColorCMOS.
(b)Pixel Format:2Megapixels.
(c)FOV:7°x5.2° ~ 1.8°x1.3°
(d)Focal length: 26~105mmcontinuouszoom
(e)Fog penetration:yes, when visibility≥4km, the fog penetration ratio is1.5.

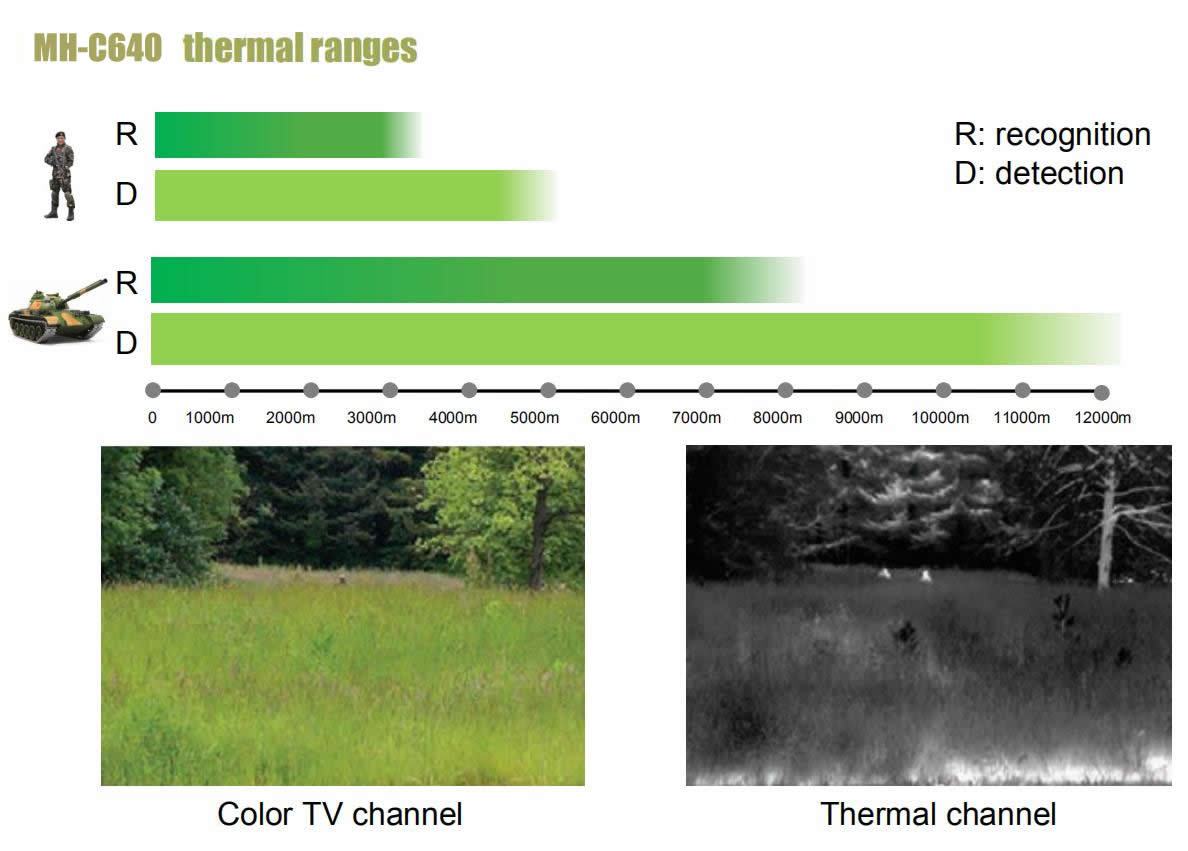

(a)ThermalChannel
(A)Human
i.Detection≥ 5000 m.
ii.Recognition≥ 3500 m.
(B)Vehicle
i.Detection≥ 12000 m.
Recognition≥ 8000 m.
(b )Visible camera Channel
(A)Human
i.Detection≥ 5000 m.
ii.Recognition≥ 3500 m.
(B)Vehicle
i.Detection≥ 12000 m.
ii.Recognition≥8000 m.
Big target: ≥ 10000m.
Vehicle: ≥ 8000m.
High Definition OLED with 1280 x 1024.
-4°~ +4°.
Built in GPS/Beidou positioning module.
Positioning accuracy: horizontal: 5m (CEP), vertical: 4m (PE).
Support the function of target positioning. When the observation distance is 3km, the target positioning accuracy is5m (CEP).
Support the function of Magnetic azimuth angle measurement. Accuracy: 0.12°.
Not less than 1000 pcs JPEG format picture or four (4) hours video storage.
(a)Battery powered: continuous working time ≥ 6 hours.
(b)External power supply Mode:yes.
Dimensions ≤ 290*200*90mm
Weight ≤ 3.3kg (including battery).
IP68.
Operating temperature: -40℃ ~ +55℃
Storage temperature: -55℃ ~ +70℃
|
24/7 OBSERVATION & TARGET LOCATION |
|
|
2 observation channels: |
- Thermal - Color TV |
|
Multifunction |
-GPS positioning -Take photo / Video recording -Electronic compass -Target ranging and location computation |
|
EASY OPERATION |
-Ergonomic design -Joystick operation |
|
MULTIMEDIA & CONNECTIVITY |
-Image / Video storage -Fast data Hand Over -Standard & legacy interfaces |
|
HIGH PRECISION & HD |
-Ranging accuracy: ± 2m -Positioning accuracy: ≤10m -Orientation accuracy: ≤0.5 ° -HD OLED Display |
|
Weight: |
< 3.3 kg (including battery) |
|
Cooled Thermal Channel (MWIR) |
•Field of view: WFoV: 7°x5.2° ~ NFoV: 2.3°x1.7° •Sensor resolution: 640 x 512 •Cooldown time: ≤ 6 min |
|
Color Day Channel |
•WFoV: 7°x5.2° ~ NFoV: 1.8°x1.3° •2 Megapixels Other Features •Eye safe laser rangefinder: > 8 km •Voice operation(option) •GPS •Electronic compass Advanced Image Processing •Image stabilization •Continuous eZoom x1-x4 |
|
Power |
•Rechargeable battery •Autonomy: > 6h |
|
Interfaces |
•Video output: PAL analog •Remote control: RS 422 |
