Cooled handheld infrared observer is an all-in-one product that integrated multi-sensor of cooled Medium Wave Infrared (MWIR) thermal imaging, visible light observation, laser ranging, the Plough/GPS positioning and electronic compass.

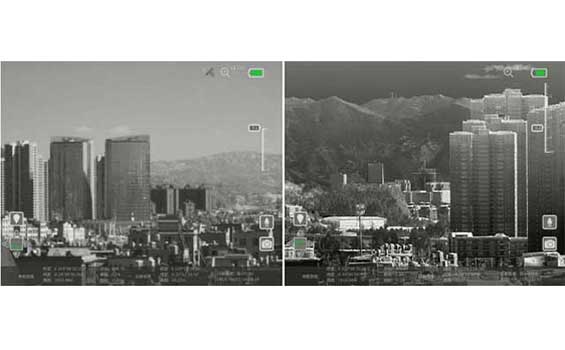

The thermal imaging and visible module with features of continuous zoom, brightness adjustment, contrast control and electronic zoom, provide detection and identification of targets. The observer also has capabilities of ranging of targets, positioning, audio and video recording, and data recording.
|
Infrared channel |
Identification Ranges |
side of medium tank ≥5.0km |
| individual soldier target ≥2.5km | ||
| Detector | cooled MWIR 640×512，15μm | |
| Spectral response | 3μm～5μm | |
| Field of View | 2.3°×1.7°～7°×5.2°, continuous zoom | |
|
Visible light channel |
Identification Ranges |
side of medium tank ≥8km |
| individual soldier target ≥4km | ||
| Field of View | 1.8°×1.3°～9°×6.5°, continuous zoom | |
| Resolution | 1280×1024 | |
|
Laser range finder |
Minimum range | side of medium tank ≤80m |
| Maximum range | side of medium tank ≥8km | |
| Ranging error | ≤3m | |
| Eyepiece | OLED resolution | 1280×1024 |
| Diopter adjustment | -6SD～+5SD，binocular observation | |
| Electronic zoom | 4X，step value: 0.05 | |
| The Plough/GPS | positioning accuracy≤10m，dual mode: the Plough and GPS. | |
| Electronic compass | angular measurement accuracy of magnetic azimuth ≤0.5° | |
| Memory capacity |
not less than 4h AVI format audio and video not less than 10000 photos of BMP |
|
|
Environment specifications |
Storage temperature |
-55℃～+70℃ |
|
Operating temperature |
-40℃～+55℃ | |
| Power requirements | 9×18650 batteries-powered or external 24V adapter power supply | |
| Set-up time | ≤8min | |
| Continuous operating time | ≥4h | |
| Weight | ≤3.4kg | |
| IP | IP67 | |
| Dimensions | 287（length）mm×236（width）mm×126（height）mm | |
| Interface |
USB (standard), PAL standard video interface, RS232 interface (standard) |
|
