MHNV MH-ST-M640 640x512px 15μm SWIR Camera Core

Engineer Manager Name: Jacky

WhatsApp/ Wechat: 0086-187 9245 6795

Email: mh_elec@126.com or jacky@mh-elec.com

The MHNV Short-Wave infrared(SWIR) camera adopts InGaAs focal plane TEC cooling detector,resolution 640x512, pixel pitch 15μm, and 0.9μm~1.7μm response wave.It is equipped with two-stage TEC deep cooling function,effectively minimizing readout noise. The whole machine with the feature of integration and modularization.High sensitivity, small size, light weight, low power consumption, and rich interfaces, it is easy for customers to integrate and use.

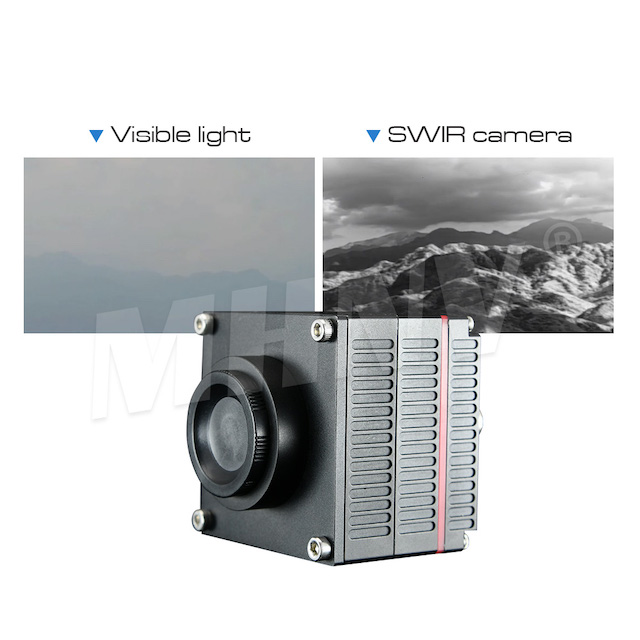

640x512px 15μm SWIR Camera Core,SHORT-WAVE INFRARED CAMERA, Short- Wave Infrared Camera Module Thermal Detector ,SWIR

MHNV MH-ST-M640 SWIR Camera Core Applications

The MHNV SWIR cameras can be widely used in various fields such as border and maritime defense, laser detection, astronomical imaging, security monitoring, biomedical applications, industrial inspection,semiconductor testing, material screening,machine vision, and scientific research.

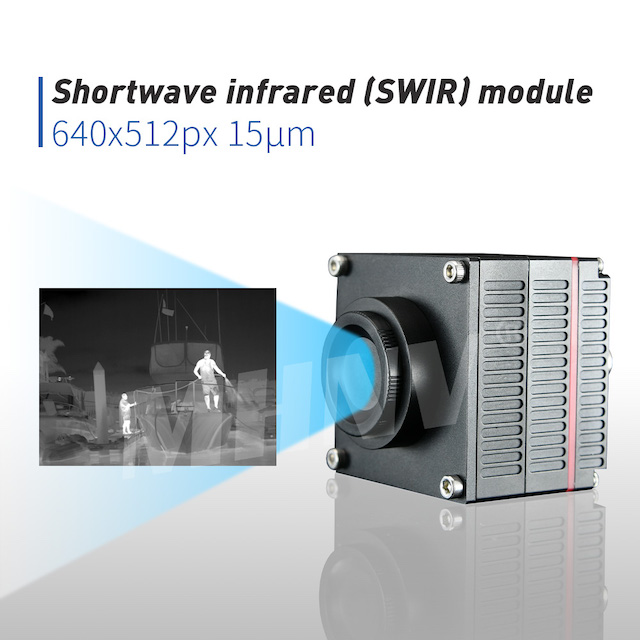

640x512px 15μm SWIR Camera Core,SHORT-WAVE INFRARED CAMERA, Short- Wave Infrared Camera Module Thermal Detector ,SWIR

MHNV MH-ST-M640 SWIR Camera Core Advantages

◆ TEC two-stage deep cooling, combined with precise temperature control, achieving a cooling temperature difference of up to 40°C.

◆ Non-uniformity correction, blind pixel compensation, temporal domain filtering, spatial domain filtering, DDE (Dynamic Data Enhancement), and IDE (Image Data Enhancement).

◆ Compact size, low power consumption.

◆ High signal-to-noise ratio, low dark current, low noise.

Technical Specification of MHNV MH-ST-M640 SWIR Camera Core

	Model Number	MHNV MH-ST-M640
Detector Performance	Resolution/Pixel Pitch	640×512.15μm
	Spectral Range	09pm-1.7um
	Material	InGaAs
	Cooler Tvpe	TEC second stage
Function	Frame Rate	25Hz
	External Trigger	RS422
	Svnc	Internal/Extemalsync
	Iintegration Time	Manually
	E-Zoom	×2/x4
	Stable Power Consumption	<5W@25°℃
Performance	Non-linearity	<1%
	Optical Non-uniformity	<2%
	Image Output Delay	I frame
	Dynamic Range	263dB
Environmental Adaptability	Operating Temperature	-40C~+70°C
	Storage Temperature	-45°C~+70C
	Vibration	6.06g.random vibration, all axial
	Shock	80g. 4ms, post peak sawtooth wave, 3 Axis 6 direction

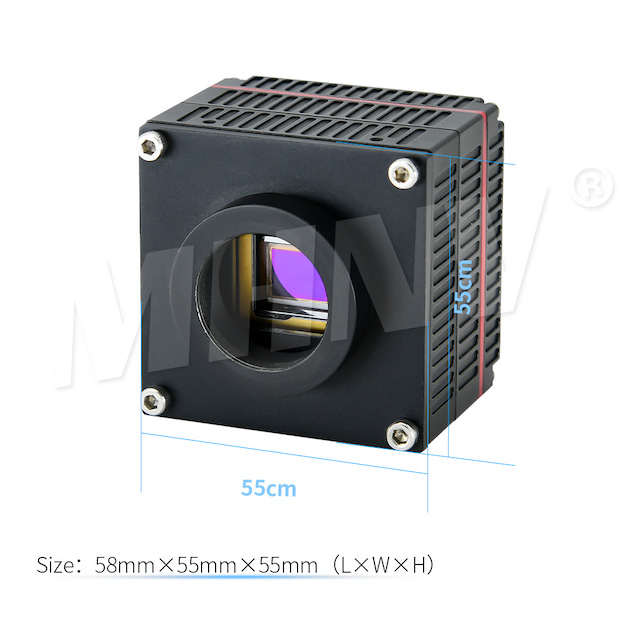

Physical Feature	SizelLW"H)	<51mm*55mmx55mm (Exclude comector)
Physical Feature	Weight	<180g

MHNV MH-ST-M640 SWIR Camera Core Features:

1. Manual/automatic exposure.

2. Horizontal, vertical, and diagonal mirroring.

3. Manual/automatic image gain.

4. Image processing algorithms: non-uniform correction, image filtering, detail enhancement, blind element correction;

5. Black-hot/white-hot polarity switching .

6. crosshair overlay.

7. RS422 external synchronous input.

8. RS422 communication.

9. Blind element correction.

10.Allows selection between raw image output and corrected image output.

11. output for test images such as checkerboard and grayscale patterns.

12.Protection for overcurrent, overvoltage, undervoltage, and reverse polarity.

13. Self checking.

14.System status query features, including: simulated image state polarity, flip status; trigger mode; operating frame rate; focal plane temperature; correction coefficient levels; integration time levels; image gray value mean, maximum, minimum; cumulative operating time, power-on counts; firmware version number, component number; software version number; algorithm switch status, etc.
