Model |

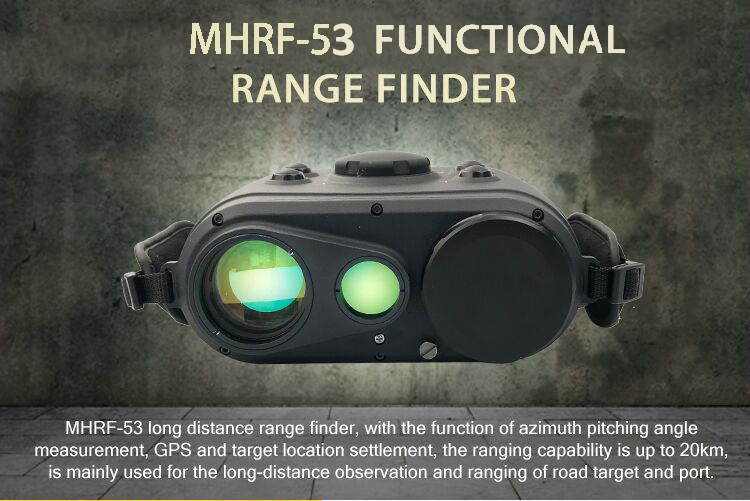

MHRF-53 |
|
wavelength |
1.57μm (eye safe) |
|
Peak power |
≥1MW |
|
Receiving aperture (mm) |
70 |
|
Optical amplification |
×8 |
|
Detector |
APD |
|
Ranging capability (km) |
20 |
|
Distance accuracy |
±5m |
|
Repetition rate |
20ppm |
|
Digital compass accuracy |
≤1o |
|
GPS accuracy |
≤10m |
|
Operation temperature |
-30℃～60℃ |
|
Power supply |
4 pieces of 18650 lithium batteries |
|
Interface |
RS422 |
|
Size (mm) |
≤230×220×90 |
|
Weight |
2.7Kg |
