KEY FEATURES
-Lightweight
-Easy to operate

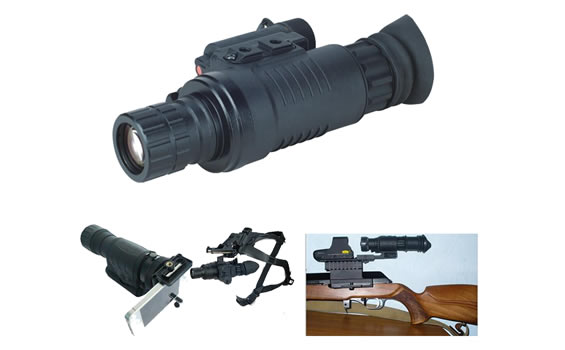

-Hand-held, head and weapon mountable.
Allowing for ACH/MICH helmets mountable.
-Photo and video equipment adaptable.
-Automatic brightness control.
-Internal “low battery” and “IR-on” indicators.
-Internal reticle aiming systems
-Protected against excess light exposure.
-Integrated(5MW IR illuminator.
-Comfortable for prolonged wear.
-Waterproof, corrosion and dust-resistant.
-May be equipped with a wide variety of optional accessories including 3x or 5x magnifier lens, weapon mount, demist shield, sacrifice window, day scopes couple and many others.
SPECIFICATION
|
Model |
MHB-22 |
|
Magnification, x |
1 |
|
Field of view, deg |
40° |
|
Lens system |
26.8mmF/1.2 |
|
Focus range, m |
0.25 / 10” to infinity |
|
Eye relief distance, mm |
15 |
|
Diopter setting, D |
+5/-5 |
|
Overall dimensions, mm |
163x76x55 |
|
Weight w/out headgear, g/oz |
384/ 13.5 |
|
Power supply |
1 AA batteries 1.5V /1 CR123 Batteries |
|
Estimated battery life w /out IR, 73°F, hour |
AA-up to 40, CR123-up to 80 |
GEN III / GEN II IMAGE INTENSIFIER TUBES
|
Classification |
OMNI III |
OMNI II |
|
Photocathode type |
18mm GaAs |
18mm S-25 |
|
Photocathode sensitivity, typical,μA/lm |
≥1800 |
600-900 |
|
Resolution, typical, lp/mm |
64-72 |
48-58/57-70/60-72 |
|
Luminous gain, typical, fl/fcd |
45000-65000 |
19000-30000 |
|
Signal-to-noise ratio, typical |
23:1 or better |
20:1 or better |
|
FOM, typical |
≥1500 |
≥1150-1350 |
|
Tube reliability standard, hour |
12000 |
10000 |
|
Keep time, typical, year |
15 |
10 |
|
Warranty, year |
2 |
|
EFFECTIVE DISTANCE
|
Detection range, approx., m/yard |
||
|
-quarter moon |
up to 300/330 |
up to 200/220 |
|
-cloud cover |
up to 250/275 |
up to 125/ 140 |
|
Recognition range, approx., m/yard |
||
|
-quarter moon |
up to 225/245 |
up to 145/160 |
|
-cloud cover |
up to 175/190 |
up to 115/125 |
|
5mW IR illuminator, approx., m/yard |
up to 30/12 |
|
ENVIRONMENTAL DATA
|
Operating temperature, °C/°F |
−40° to +50°/-40° to +122° |
|
Storage temperature, °C/°F |
0° to +50°/32° to +122° |
|
Immersion, hour |
1 meter for 0.5 (Optional) |
|
Humidity, % |
up to 98% |
