KEY FEATURES
-Lightweight
-Easy to operate
-Hand-held, head and weapon mountable.
-Allowing for ACH/MICH helmets mountable.
-Photo and video equipment adaptable.
-Automatic brightness control.
-Internal “low battery” and “IR-on” indicators.
-Protected against excess light exposure.
-Integrated(5MW IR illuminator.
-Comfortable for prolonged wear.
-Waterproof, corrosion and dust-resistant.
-May be equipped with a wide variety of optional accessories including 3x or 5x magnifier lens, weapon mount, demist shield, sacrifice window, day scopes couple and many others.
SPECIFICATION
|
Model |

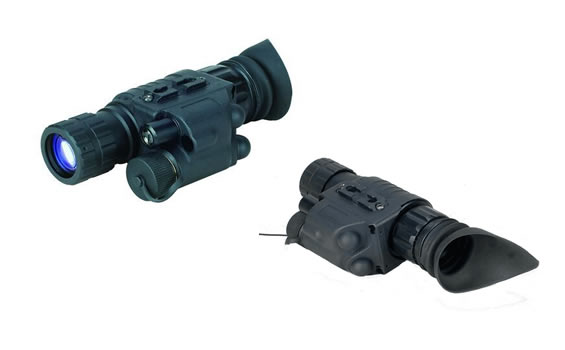

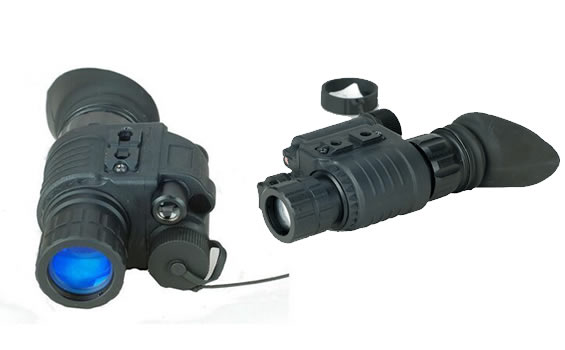

Mini MH-NVM |
|
Magnification, x |
1 |
|
Field of view, deg |
40° |
|
Lens system |
26.8mmF/1.2 |
|
Focus range, m |
0.25 / 10” to infinity |
|
Eye relief distance, mm |
15 |
|
Diopter setting, D |
-6~+5 |
|
Overall dimensions, mm |
163*76*55 |
|
Weight w/out headgear, g |
380 |
|
Power supply |
1 CR123 Batteries |
|
Estimated battery life w/ out IR, 73°F, hour |
CR123-up to 80 |
|
|
|
|
Classification |
Gen2+ |
Gen3 |
|
Photocathode type |
18mm S-25 |
18mm S-25 |
|
Photocathode sensitivity, typical,μA/lm |
600-900 |
600-900 |
|
Resolution, typical, lp/mm |
48-58 |
57-70 |
|
Luminous gain, typical, fl/fcd |
19000-30000 |
20000-30000 |
|
Signal-to-noise ratio, typical |
20:1 or better |
21:1 or better |
|
FOM, typical |
≥1150 |
≥1350 |
|
Tube reliability standard, hour |
10000 |
10000 |
|
Keep time, typical, year |
10 |
10 |
|
Warranty, year |
1 |
|
ENVIRONMENTAL DATA
|
Operating temperature, °C/°F |
−40° to +50°/-40° to +122° |
|
Storage temperature, °C/°F |
0° to +50°/32° to +122° |
|
Immersion, hour |
1 meter for 0.5 (Optional) |
|
Humidity, % |
up to 98% |
Technical specifications are for reference only.
