IP66, rugged and durable, Quality guaranteed
With IP66 protection level, anti 1 meter drop, suitable for all kinds of hot or cold weather. It also passed the certification, RoHS, CE, FCC certification, etc.

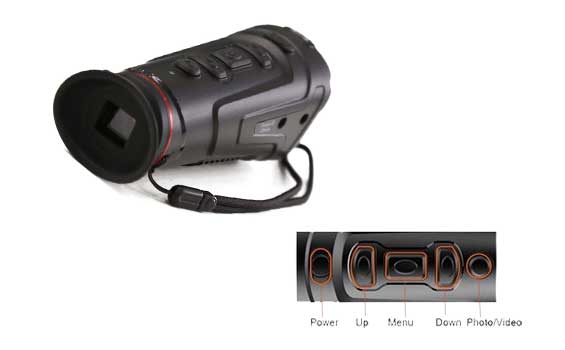

Excellent ergonomic design
With easy-distinguished button, the target button can be quickly recognized by touch even in the total darkness.
With modern streamlined appearance and ergonomis design, TrackIR allows you to observe the target for a long time without tired.

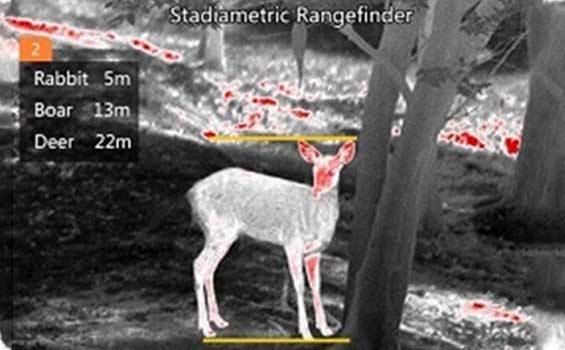

Built-in Stadiametric Rangefinder
Stadiametric rangefinder can accurately measure the ranging of observed objects with know height (Rabbit-35cm, boar-90cm, deer-150cm)., and the real-time ranging information will be shown both on the thermal imager and the mobile APP.

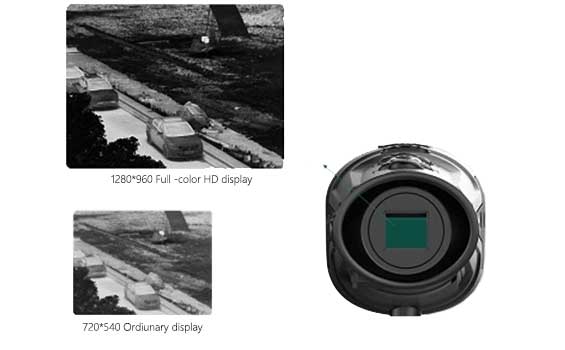

1280×960 HD Display
Full-color 0.4-inch HD display with 1280×960 pixels, the image is crispr and more delicate, feel like watching 22-inch screen at 1m, which greatly improves the observation comfort.
| Thermal Detector | |
| Detector Type | Uncooled 400*300px Detector |
| Pixel pitch | 17um |
| Spectral range | 8-14um |
| Lens | |
| Lens system | 35mm F1.2 |
| FOV | 11.1°×8.3° |
| Eyepiece | Monocular, diopter adjustable |
| Screen | colorful LCOS 1280X960 |
| Image Processing | |
| Frame rate | 50Hz |
| Digital zoom | 1x/2x/4x |
| Color palette | Black hot, white hot, red hot |
| Image format | JPG |
| Scenes Modes | Enhanced, Highlignt, Forest, Desert, City, Snow and Default (indoor) |
| Picture-in-picture | Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right. |
| WIFI | Image transfer |
| Image storage | 16GB |
| Tracing | Hot spot tracing |
| Detection range for human | 1000m |
| Detection range for vehicle | 2400m |
| Power supply | |
| Battery | Internal Li-ion battery (2x18650, 6000mAh) |
| Working time, hour | more than 5 |
| Adapter | Standard USB power adapter |
| Stand-by mode | Available |
| Interface | |
| USB interface | TYPE C (USB 2.0 standard ) , for charging,/ data transmission |
| Video output | Micro HDMI |
| Memory Card | 16 GB |
| Environmental Compatibility | |
| Working temperature, °C | -10°C~60°C |
| Storage temperature, °C | -30°C~70°C |
| Humidity,% | 10%~95% |
| IP level | IP66 |
| Drop test, m | 1 meter |
| Physical Characteristics | |
| Dimension | 192mm×65mm×71mm |
| Weight | 470g |
