MH-861 night vision is a new product developed based on the latest photoelectric technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared illuminator and an auto-gain system.
The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night. It is good equipment for them.

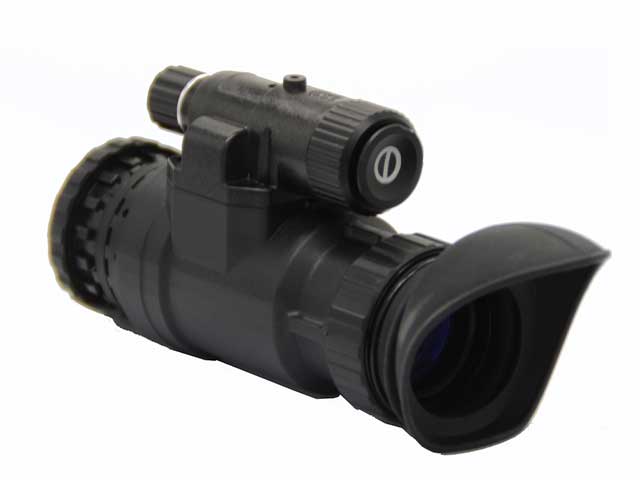

1.Night Vision Monocular

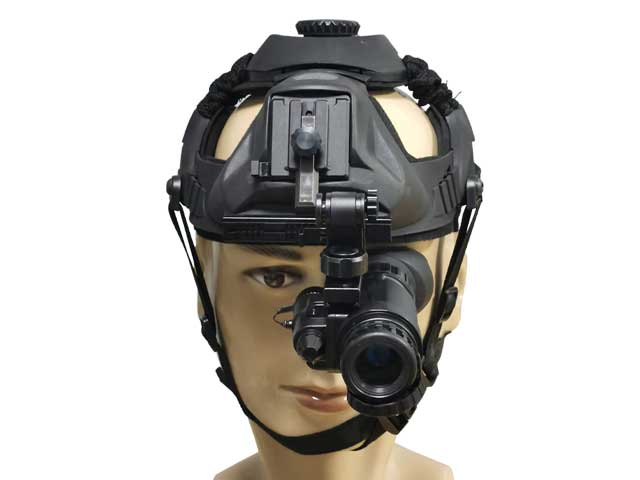

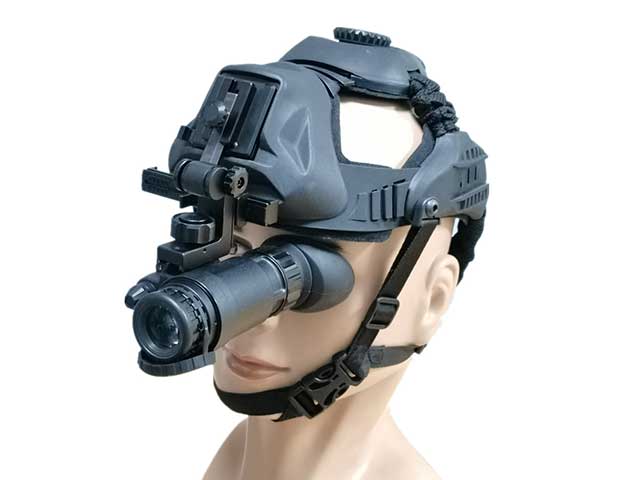

2.Head strap mount
3.Bracket
4.Carrying Case or hard case (optional)
5.Manual
6.Lens cleaning
|
MODLE |
MH-861 |
|
Image intensifier |
EU Gen3 |
|
Magnification |
1x |
|
Resolution ( lp/mm) |
57-64 |
|
S/N（dB） |
20-25 |
|
MTTF |
10,000 |
|
FOV（degree） |
40+/-2 /50+/-2 as optional |
|
Detection distance（M） |
180-300 |
|
Reticle |
Internal（optional） |
|
Diopter range |
+5/-5 |
|
Optical system |
F1.2, 25mm |
|
Coating |
Multilayer broadband coating |
|
Distance range（M） |
0.25--∞ |
|
BSP |
Yes |
|
Flip-up ,off |
Yes |
|
Flip-down, on |
Yes |
|
Materials |
plastic |
|
BatteryVoltage |
2.6-4.2V |
|
Battery type |
CR123(A)x1 |
|
Battery life（H） |
80 (IR OFF) 40 (IR ON) |
|
Temperature range（℃） |
-40/+50 |
|
Humidity range |
5%-98% |
|
Waterproof |
IP65（IP67 optional） |
|
Weight（no battery） |
240g |
|
Dimensions（mm） |
110*65*45 |
