Description
MHNV PVS14 is the all around best multi functional night vision monocular available, it allows the user to retain their night adapted vision in one eye while viewing their surroundings through the illuminated eyepiece. MHNV-PVS14 is small in size, light in weight,and easy to operate. Inaddition, it can be equipped with helmets to observe the long-range target, observe enemy conditions at night, and conduct accurate and effectiveattacks on targets.
White Phosphorus Tube

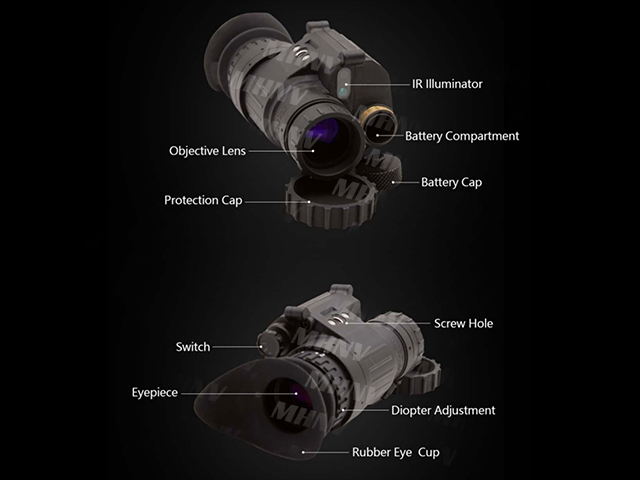

Structure
Application
Main Features

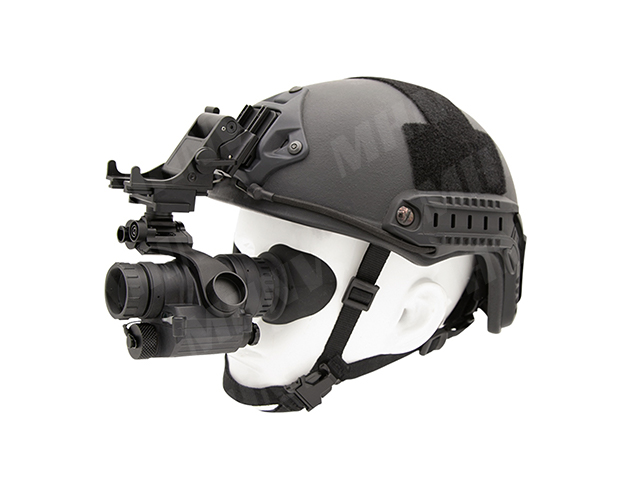

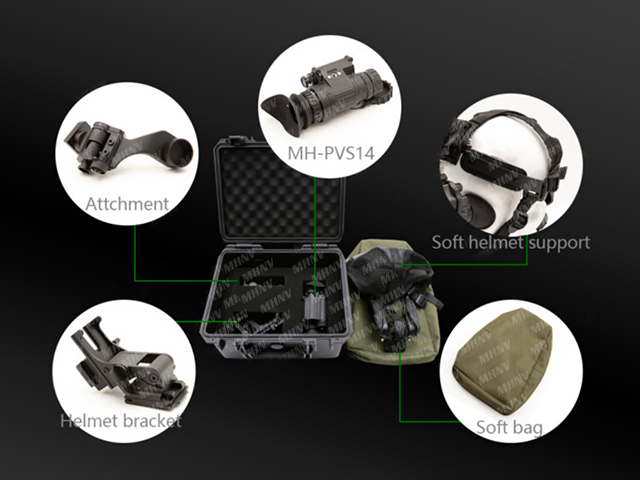

1.Multipurpose: handheld, helmet support, head support.
2.Waterproof and fog resistant.
3.Military grade, high performance and high quality.
4.Small in size, and light weight.
Technical Parameters
| Model | MHNV-PVS14 | |||||||
| Magnification | 1x | |||||||
| FOV | 40° | |||||||
| Eye relief distance | 25mm | |||||||
| Eye relief diameter | 14mm | |||||||
| Diopter | -6~+2 | |||||||
| Lens system | 25mm F#1.2 | |||||||
| Eyepiece lens system | 25mm | |||||||
| Focus range | 250mm to infinity | |||||||
| Dimension | 114*70*60mm | |||||||
| Weight | 310g | |||||||
| Battery type | AA batery or CR123 | |||||||
| Duration time | 30hours | |||||||
| IR Illuminator | Yes | |||||||
| Highlight protection function | Yes | |||||||
| Autogating | Yes | |||||||
| IIT Classification | Gen3 | |||||||
| Photocathode type | GaAs | |||||||
| Resolution typical, lp/mm | ≥ 64 lp/mm | |||||||
| Luminance gain（cd/m2/lx） | 8000-20000 | |||||||
| Signal-to-noise ratio, typical | ≥25 | |||||||
| FOM | ≥1600 | |||||||
| Operation temp. | -20℃〜50℃ | |||||||
| Storage temp. | -40℃〜60℃ | |||||||
| Protecion level | IP65 | |||||||
