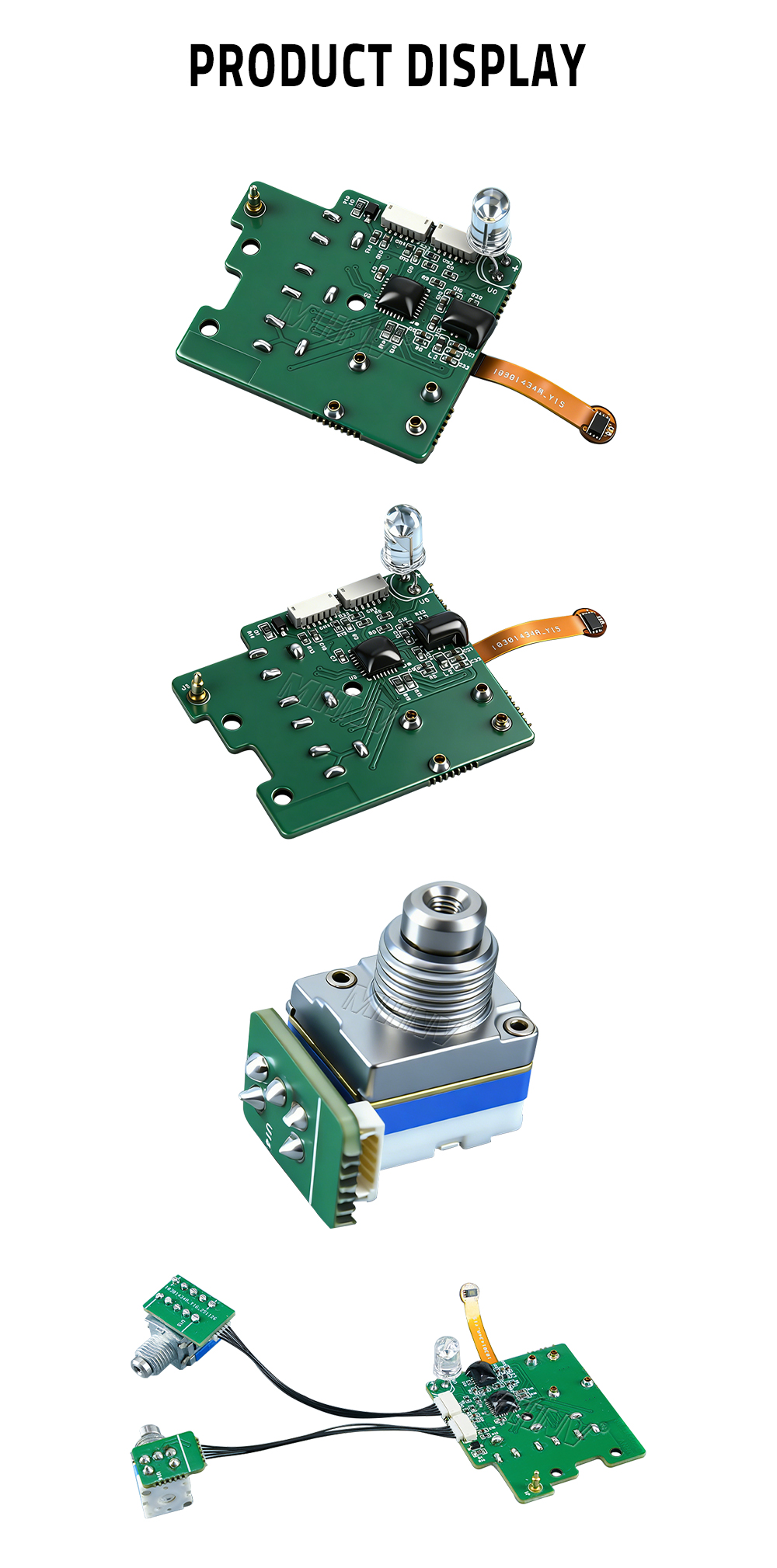

PVS14 Night Vision Monocular Device Circuit Board

PVS14 Night Vision Monocular Device Circuit Board

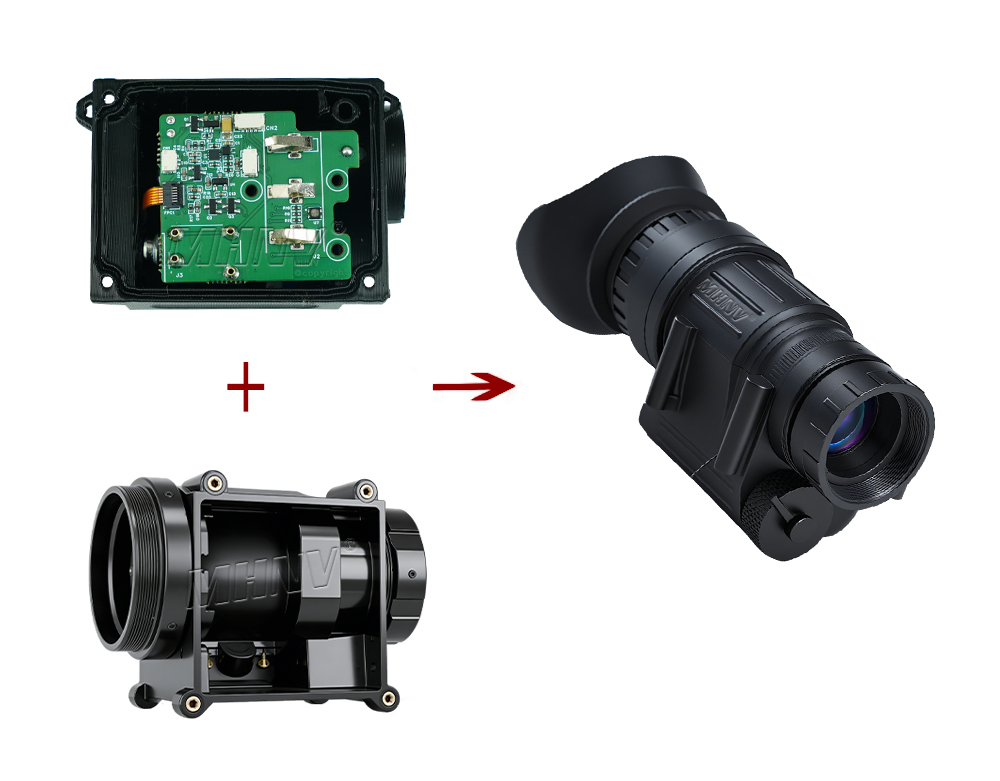

MHNV®️ circuit board is the "nerve center" of the PVS-14 night vision device, converting the energy from a single AA battery (1.5V) into the thousands of volts of high voltage required for the intensifier tube, and providing precise control and protection.

Five core components:

1. High Voltage Power Supply Module (HVPS)

2. Automatic Brightness Control (ABC) / Automatic Gating Circuit

3. Manual Gain Control Circuit (Optional)

4. Infrared (IR) Illumination Control Circuit

5. Power Management and Interface System

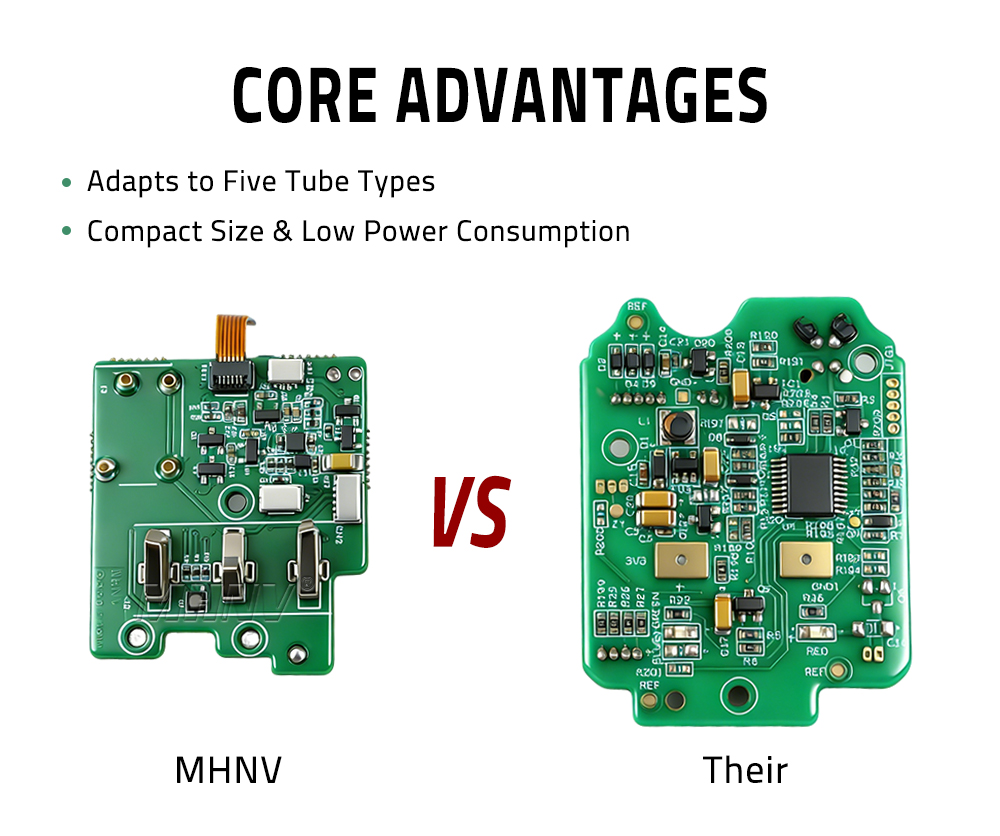

Core Advantages:
1.Adapts to Five Tube Types

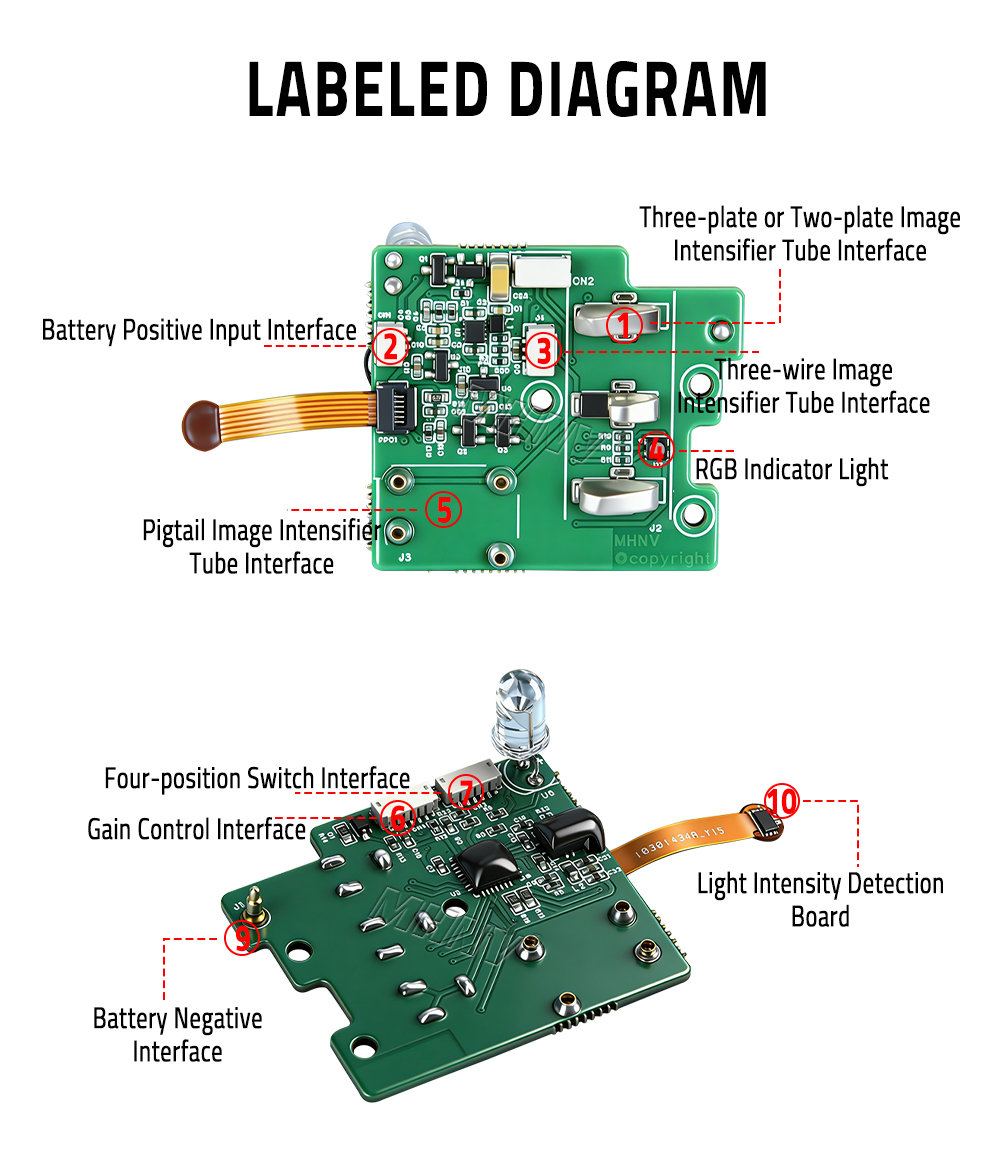

PVS-14 Universal Circuit Board Compatible Supports MX11769 (3-Wire),MX10160 (2-Wire), 3-Contact/2-Contact)/ITT Pigtail tube types.

2.Compact Size & Low Power Consumption

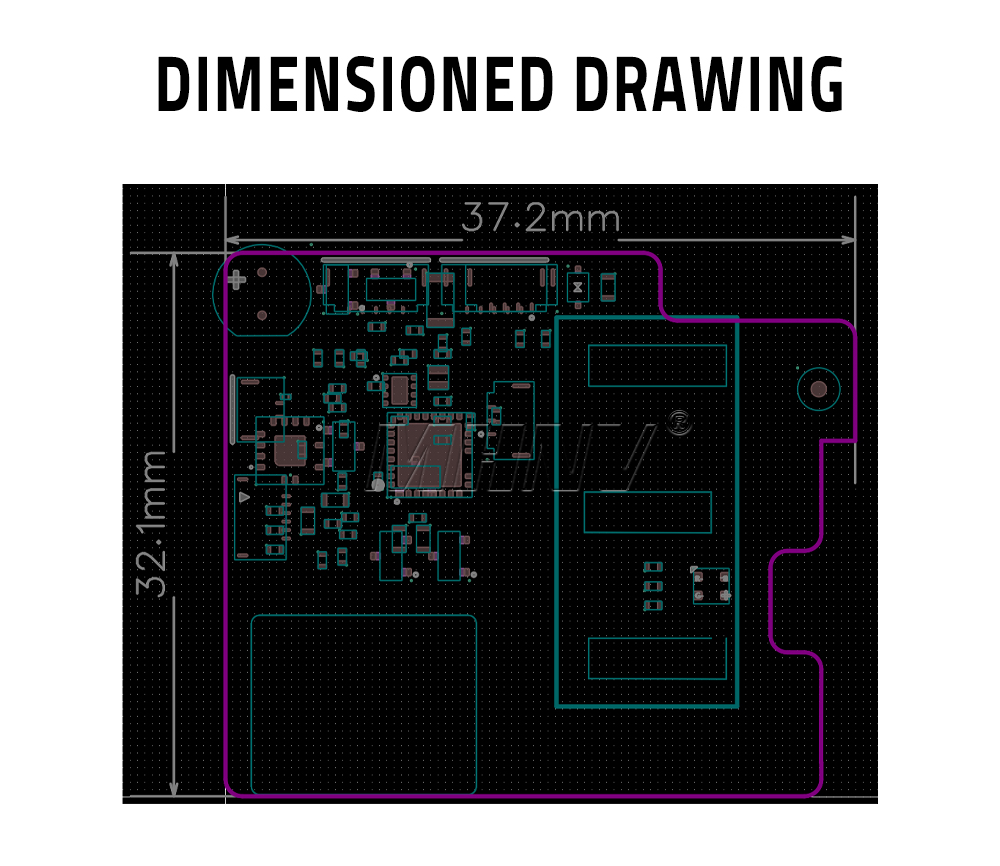

* Board dimensions: Only 37.2mm*32.1mm , smaller than traditional designs.

* Operating power consumption: <48mW (typical working state), lower than similar products.

PVS-14 Auto-Gating Circuit Board, PVS-14 ABC (Automatic Brightness Control) Module
