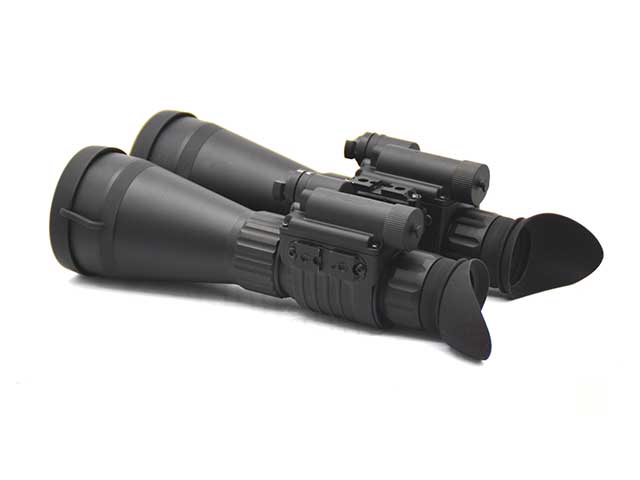

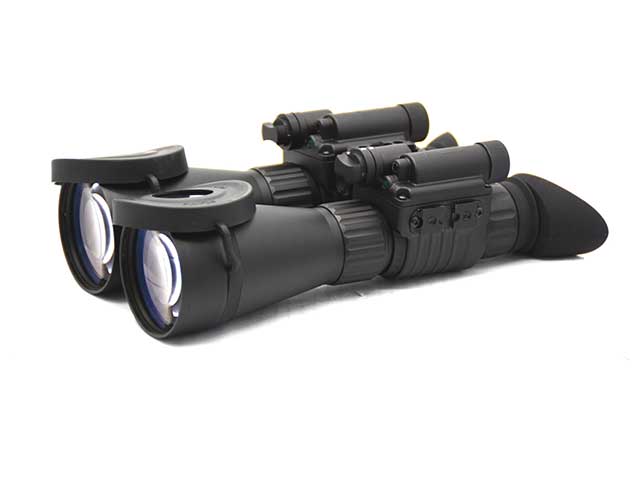

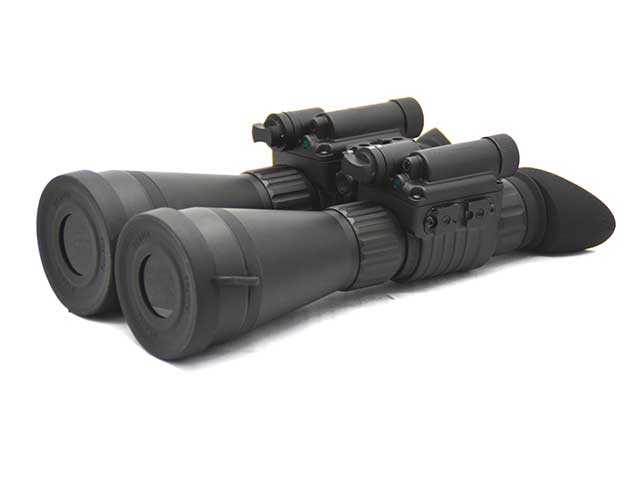

MH-831D5 is based on the latest photoelectric technology research and development of new products,The instrument adopts the high-performance generation 2+/3 image intensifier, with excellent performance, small volume and weight ,light, clear imaging, simple operation, high cost performance, and by replacing the objective lens (or connecting multiplier lens). It can change magnification for long distance observation at night.
The night vision instrument is equipped with an infrared auxiliary light source and an automatic anti glare protection system. The product has strong practicability and can be applied to military observation, coastal defense reconnaissance, public security surveillance, forensics, customs anti-smuggling etc.
Night Vision Goggles
Head strap mount
Carrying Case or hard case (optional)
Shoulder strap
Manual
Lens cleaning
|
Model |
MH-831D5 |
|
IIT |
Gen3 |
|
Magnification |
5x |
|
Resolution ( lp/mm) |
57-64 |
|
LuminousSensitivity（uA/lm） |
500-900/1600 |
|
MTTF (hrs) |
10,000 |
|
FOV（degree） |
12 |
|
Detection distance（M） |
650-700 |
|
Adjustable range of eye distance |
65+/-5 |
|
Diopter range |
+5/-5 |
|
Lens system |
F1.5,90mm |
|
Coating |
Multilayer broadband coating |
|
Range of focus (m) |
10--∞ |
|
Brightness source protection |
Yes |
|
Material |
Aviation aluminum |
|
Power supply |
2.6-4.2V |
|
Battery type |
CR123(A)x2 |
|
Battery life（H） |
80(IR OFF) 40(IR ON) |
|
OperatingTemperature（℃） |
-40/+50 |
|
RelativeHumidity |
5%-98% |
|
Environment rating |
IP65（IP67 optional） |
|
Weight (g),no battery |
1105 |
|
Dimensions（mm） |
220x203x65 |
