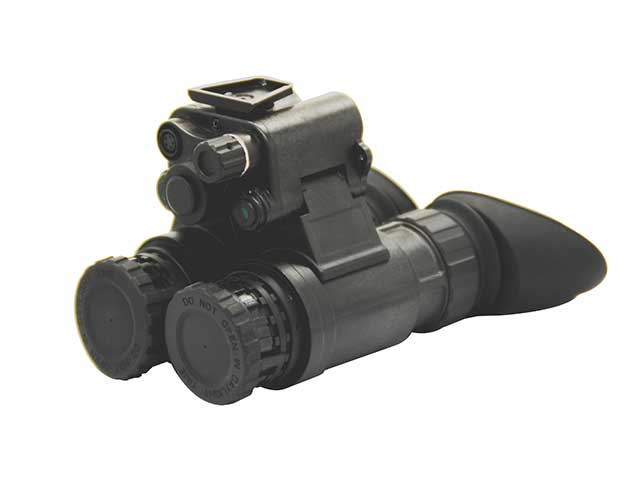

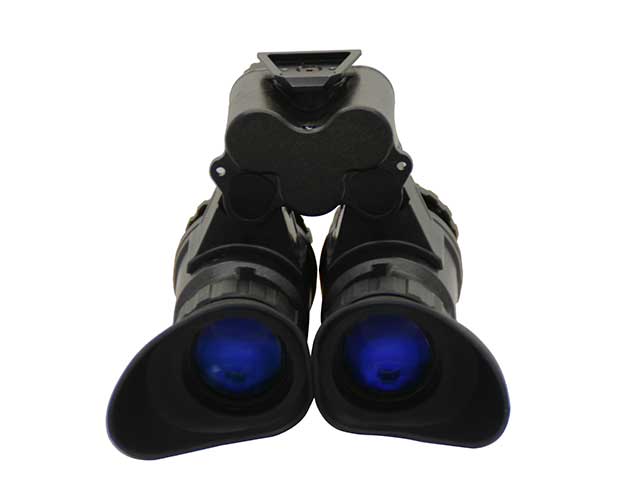

MH-35N is a high-performance military head mounted night vision binocular built by us , it’s has the characteristics of super large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military products), which is the ideal choice for military night equipment.
1x Night Vision Goggles
1xHead mounted with bracket
1xHard case (optional)
1xManual
1xLens clothing
|
MODEL |
MH-35N40/50 |
|
Battery type |
AAA battery (AAAx1) / cr23x4 external battery box |
|
Power supply |
1.2-1.6V |
|
Installation |
Head mounted(standard American helmet interface) |
|
control mode |
ON/IR/AUTO |
|
Over power consumption |
<0.1W |
|
Battery life |
40-100H (800-3200maH) |
|
magnification |
1x |
|
FOV（°） |
40 /50 +/-1 as optional |
|
Parallelism of optical axis |
<0.05 ° |
|
IIT |
EuroGen3 |
|
Resolution |
57-64lp/mm |
|
Lens system |
F1.18,23mm |
|
MTF |
120lp/mm |
|
Optical distortion |
0.1% Max |
|
Relative Illumination |
>75% |
|
Coating |
Multilayer broadband coating |
|
Range of focus |
250mm-∞ |
|
Focus mode |
manual focus facility |
|
Distance of pupil |
20-45 |
|
Eyepiece aperture |
9mm |
|
Diopter adjustment |
+ / - 5 |
|
Off-axis |
5-10mm |
|
Eye spacing adjustment |
Arbitrary continuous adjustable |
|
Eye distance adjustment range |
50-80mm |
|
IR |
850nm, 20mW |
|
Flip-up off |
Yes |
|
Flip-down on |
Yes |
|
Flip sideways turn off |
Yes |
|
Operating temperature |
-40--+55℃ |
|
Relative humidity |
5%-95% |
|
Environment rating |
IP65/IP67 as optional |
|
dimensions |
110x100x90mm |
|
weight |
460g(no battery) |
