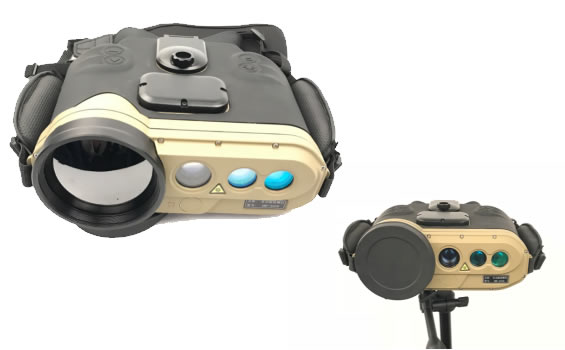

Truely Multi-functional Thermal Camera for Use
| MH850 Multi-Function Thermal Binocular | |
| Model | MH850 |
|
|
|
| Thermal Imager | |
| Detector | Uncooled FPA Detector |
| Spectral range | 8～12μm |
| Resolution | 640×480@17μm |
| Frame rate | 50Hz |
| NETD | ≤ 60mK |
| Focal length | 85mm(F# 1.0) |
| Focus | Auto focusing，8m～∞ |
| FOV | 7.3°× 5.5° |
| Micro display | 0.6 inch OLED/（800×600） |
| Start up time | < 5S |
| E-Zoom | 2x/4x |
| Pole | white hot/black hot（optional pseudo-color） |
| Contrast/Brightness | Auto/Manual |
| Reticle | moveable、storable、graphic editable |
| Laser Range Finder | |
| Wave Length | 1.55μm (Eye Safety) |
| Measure distance | 50～4000m（Max 5000m） |
| Accuracy | <±2m |
| Accuracy rating | > 98% |
| Visible Light Parameters | |
| Sensor | 1/2' Ultra low light night vision |
| Visible light | 700TVL |
| Field of view | 9.0°×7.0° |
| Working luminance | 0.001Lux（black & white） |
| Focal length | f =35mm |
| Specialty | D-WDR、3Ddenoise、automatic shutter |
| GPS/DMC | |
| Accuracy | CEP< 5m |
| DMC | 3D heading accuracy less than1° |
| WIFI | YES |
| Video recording | |
| Photo format | JPEG |
| Video format | 640×480@50Hz |
| Storage capacity | Standard 16G |
| Recording time | Around 10 hours |
| Interface | USB 2.0 |
| Power supply | |
| Power source |
7.2V/3000mAH ; 2×18650 Lithium ion |
| Average Power | ＜4.0W |
| Operating Time |
≥5 hours (observing pattern) |
| Environments | |
| Protect standard | IP66 |
| Operating temperature | -30℃～+50℃ |
| Storage temperature | -40℃～+60℃ |
| Humidity | 5%~95%(Non-Condensing) |
| Vibration |
Sweep frequency:5-200-5Hz ,Acceleration 2.5g |
| Impact | 30g/11ms Half sine wave |
| Physical parameters | |
| Net weight |
Less than 2.3K g（include Battery） |
| Dimension | 255×230×95（L×W×H） |
| Housing | Magnesium and aluminum alloy |
|
Suitcase Dimension (mm) |
460×350×180（L×W×H） |
| Mount adaptor | 1/4 'standard tripod mounting |
| Observation Distance | |
| Man (1.8×0.92m) | Detection: 2500m |
| Recognition: 1000m | |
| Vehicle (2.3×2.3m) | Detection: 4000m |
| Recognition: 1500m | |
