MH-B series industrial usage Handheld thermal imaging camera

MH-B series industrial usage Handheld thermal imaging camera

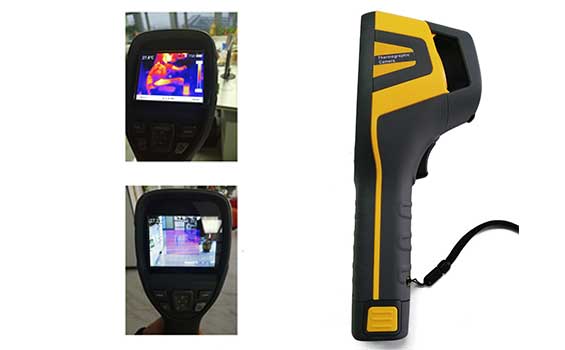

MH-B256 thermal imaging camera is an easy-to-use troubleshooting tools for building, electrical, and mechanical applications.The B-series temperature-sensitive infrared camera is simple in appearance, ergonomically designed, easy to operate, and requires no training. The new upgraded version integrates infrared and visible light, adopts cost-effective design, rich functions, reliable performance and accurate temperature measurement. It can effectively improve the efficiency of inspection work and is a powerful tool for ensuring the production process and product quality in the industrial field.

Features:

1.Friendly UI, easy to use without training
2. Affordable as entry level diagnostic tool
3.Removable Large capacity Li-ion battery, 4 hour working time
4. 3.5”large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight
5. Rugged and compact design, metal internal structure
6. Standard Micro USB interface for data transmission and charging
7. Optional Wi-Fi connection with notebook or mobile

Type	MH-B320	MH-B256	MH-B160
Infrared resolution	320x240	256*192	160*120
focal length	7mm/F1.1		5mm/F1.2
FOV	42.5°*32.5°	34.5°*26.5°	30°*23°
Spatial resolution	2.33mrad	2.36mrad	3.30mrad
Frame rate	25Hz/9Hz
Visible light resolution	640*480,auto focus
Display	3.5 inch LCD screen with 320*240 resolution
Image mode	Infrared, visible light, MIF, PIP
Temperature range	-20°C-350°C
Temperature measurement accuracy	±2°or ±2%
Ambient temperature	15°C~35°C
Target temperature	>0°C
High and low temperature tracking, high and low temperature alarm
Memory 16G pluggable WIFI function
Weight	740g
