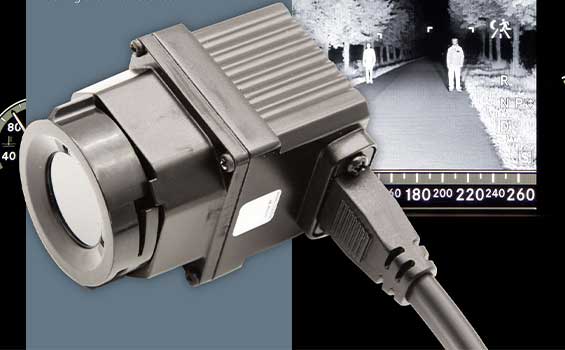

Infrared thermal imaging camera

It can obtain clear images during driving at night or in low light, and provide more comprehensive and accurate information on potential hazards to help The driver obtains a higher foresight ability.

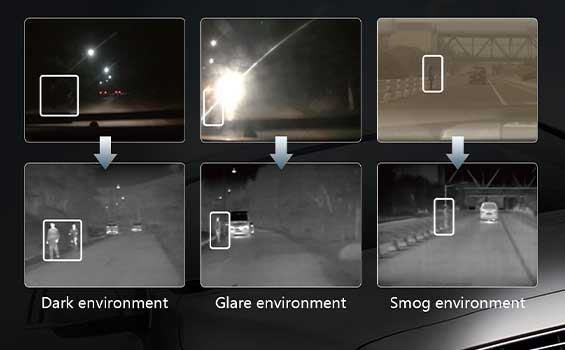

Highlighting the non-luminous heating object
Anti-glare function

Infrared thermal imaging camera

Making Driving Safer in Night

Infrared thermal imaging camera

Low beam light distance
High beam light distance
Infrared thermal image distance

Specification

Sensor

Type

Uncooled Vox

Resolution

400 x 300

Pixel

17um

Spectral band

8um~14um

Analog video	CVBS CVBS	PAL NTSC	768x576 720x480	25Hz 30Hz
Image Algorithm	Automatic brightness contrast, image increase
Power
Video connect	CVBS
Power input	DC9V—DC32V, typical 24V
Power adapter	≤3.5W（@24V power，don’t start window heating） ≤9W（@24V power，start window heating）
Environment
Work Temp.	-40℃～+85℃
Storage Temp.	-45℃～+90℃

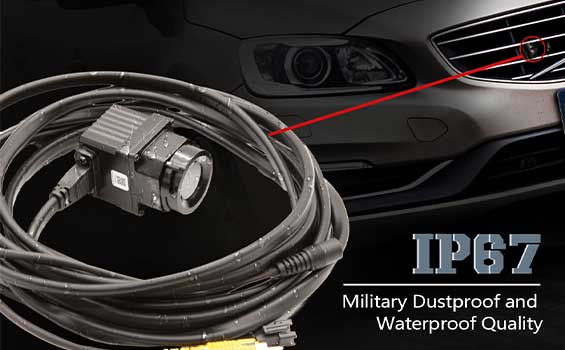

Protection	IP67

Lens system

Lens focus

9.7mm/F1.0

FOV

37.0°x 28.0°

Physical properties
Size	403658mm（excludes connector）
Weight	150g±3g（excludes cable）
System
Start time	≤8S（Normal temp.）
Shutter control	Auto
Heating	When the window temperature is lower than 2℃±2℃, it will automatically start the intelligent heating. When the window temperature is higher than 7℃±2℃, it will automatically turn off the heating function
Detection range
Detection range	Human（1.8m0.5m） ≥150m Vehicle（2.3m2.3m） ≥300m
