Items |
Technical specification |
|
|
Infrared Imager |
||
|
Detector type |
Uncooled focal plane |
|
|
Detector size |
641×512@12μm |
|
|
Spectral Range |
8～14μm |
|
|
Frame Rate |
50Hz |
|
|
NETD |
＜50mK@300k |
|
|
Infrared Focal Length |
62mm (F#1.0) |
|
|
Focus Range |
8m～∞ |
|
|
Field of View |
7.4°× 5.6° |
|
|
Boot Time |
＜5 s |
|
|
Zoom |
×2,×4 |
|
|
Pole |
white hot/black hot（pseudo-color） |
|
|
Display |
1024×768LED |
|
|
Daylight / Night vision |
||
|
Detector |
1/2’ Ultra low illuminance |
|
|
Resolution |
720×576 |
|
|
Working illumination |
0.001 Lux(monochrome) |
|
|
Focal Length |
35mm |
|
|
Features |
3D DNR, Auto Shutter, Wide Dynamic |
|
|
Laser Rangefinder |
||
|
Working wavelength range |
1.54μm(eye-safety) |
|
|
Range |
50~4000m (Max 5000m) |
|
|
Accuracy |
<±2m |
|
|
Repetition rate |
12 times/minute |
|
|
Efficiency |
>98% |
|
|
Photo/Video Storage |
||
|
Photo Snap |
JPEG |
|
|
Video Recording |
640×480@25Hz |
|
|
Video storage |
32Gb |
|
|
Video Data output |
High Speed USB2.0 |
|
|
Distance |
||
|
Persons(US DOD Standing man) |
Detection：2.5km Recognition：1.0km |
|
|
Vehicle(NATO Tank) |
Detection：4km Recognition：1.6km |
|
|
* Actual range may vary depending on camera setup, environmental conditions, user’s experience, and display method. |
||
|
Power |
||
|
Rechargeable lithium battery |
4×NCR18650B 7.2V /3000mAH |
|
|
Working time |
≥ 5hours (IR mode) |
|
|
Environmental |
||
|
Protect standard |
IP66(IP67 for optional) |
|
|
Operating Temperature |
-30°C～+60°C |
|
|
Storage Temperature |
-40°C～+70°C |
|
|
Humidity |
5%～95%( Non-condensing) |
|
|
Vibration |
Sweep frequency:5-200-5Hz,G-force:2.5g |
|
|
Impact |
10g/11ms Half sine wave |
|
|
Physical Parameter |
||
|
Product Weight |
Control box :6.5kg（Include Battery） |
|
|
Detector:2.4kg |
||
|
Control box:5.6kg |
||
|
Dimension (mm) |
Control box:410（L）×304（W）×120（H） |
|
|
Detector210（L）×190（W）×100（H） |
||
|

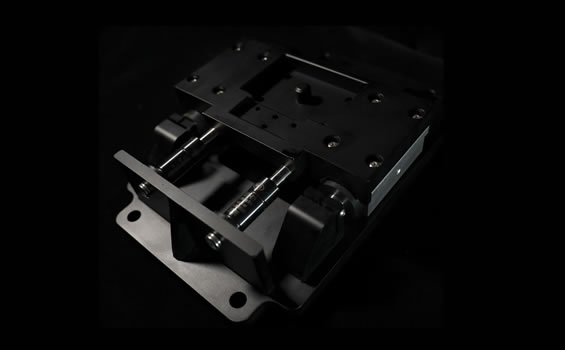

Shock mount:410（L）×208（W）×75（H） |
||
|
Accessories |
||
|
Cable |
USB2.0& Video BNC connector |
|
|
Batteries |
4×NCR1850BM batteries with 2ch charger |
|
|
Suitcase |
safety suitcase |
|
