Advantages
MH350Long range infrared thermal riflescopes hunting night vision scopeshave excellent infrared imaging effect, advanced ultra-low power consumption, no shutter, quick start function and simple control, compact structure, lightweight and portable, high-reliability features.

MH350Long range infrared thermal riflescopes hunting night vision scopeshave excellent infrared imaging effect, advanced ultra-low power consumption, no shutter, quick start function and simple control, compact structure, lightweight and portable, high-reliability features.

Advantage 1:

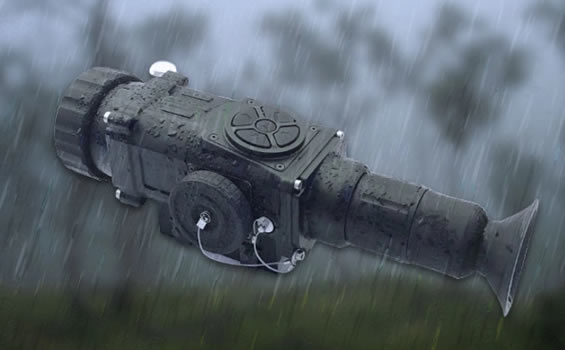

High performance IP66 waterproof ofLong range infrared thermal riflescopes hunting night vision scopes can guarantee to work well in the bad environment.

Advantage 2:

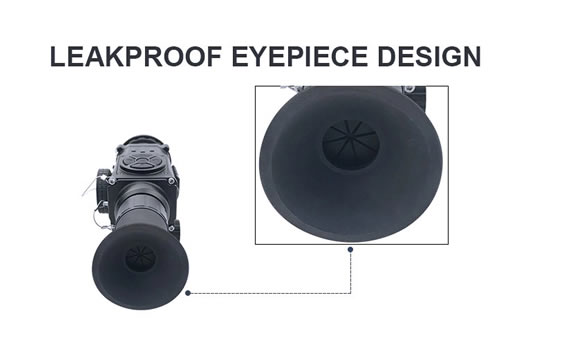

Long range infrared thermal riflescopes hunting night vision scopeswith the non light leakage eyepiece design, can well protect the user in darkness outdoor.

Advantage 3:

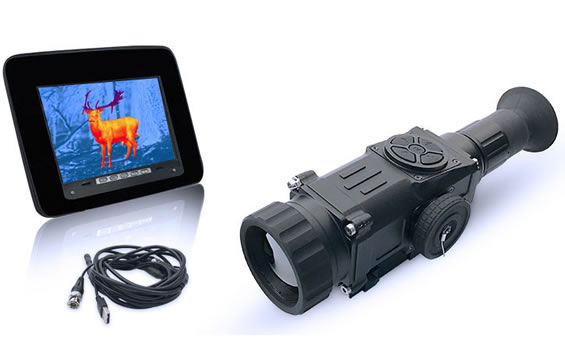

Long range infrared thermal riflescopes hunting night vision scopessupport real-time video output, share the best imager with your family and friends.

Advantage 4:

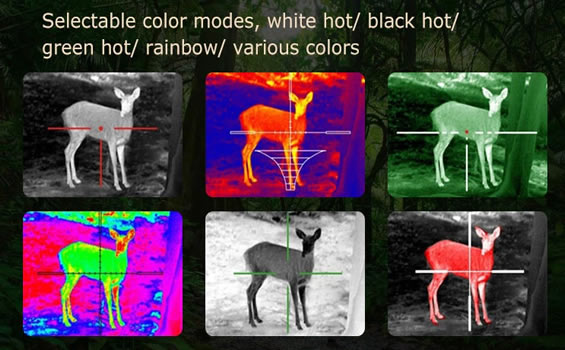

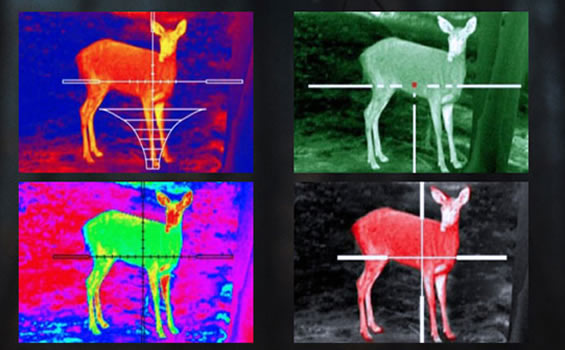

Selectable color modes, white/ black/ color hout ofLong range infrared thermal riflescopes hunting night vision scopesso that bring different images for you.

Advantage 5:

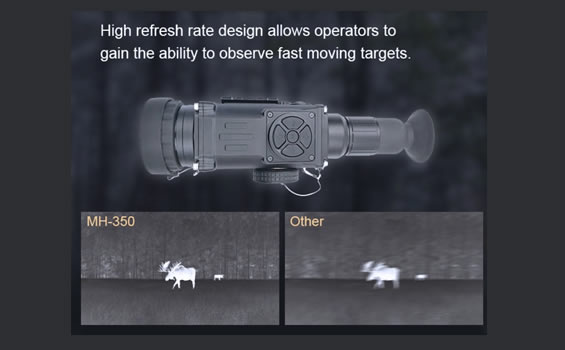

Detection your target image with colorful thermal , high performance imported from Ulis thermal sensor ofLong range infrared thermal riflescopes hunting night vision scopesframe rate up to 50Hz, smooth image take your shot with confidence.
|
Infrared
Imager |
Detector Type |
Uncoole d IR FPA Detector |
|
| Resolution | 384×288 | ||
| Spectral Band | 8~14?m | ||
| Detector Pitch | 17um | ||
| Frame Rate | 50Hz(PAL) | ||
| Function | E-Zoom | 2×~4× | |
| Pole |
white hot/black hot/ Color hot |
||
| Reticle | moveable,storable | ||
| Image Model | 3 options | ||
|
Optical parameters |
Focal length | f=50mm | |
| F# | 1.0 | ||
| Focus Mode | Manual | ||
| Focus range |
5m~infinity |
||
| Field of view | 7.5°×5.6° | ||
| Ocular | Focal length | 22.5mm | |
|
Distance of Exit Pupil |
25mm | ||
|
Diameter of Exit Pupil |
7mm | ||
| Display |
0.6 inch 800×600 OLE D Display |
||
|
System parameters |
Power Source |
18500A lithium ion, Operating Time:more than 4 hours |
|
|
Power consumption (with display working) |
Less than 2.0W(@25?) | ||
| No Shutter | Yes | ||
| Start-up | Less than 5s | ||
| External interface |
Video Output:RS-232C |
||
| Mount Adaptor |
Picatinny rail(customize) |
||
|
Observation Distance |
Man (1.8× 0.92m) |
Detection | 1200m |
| Recognition | 400m | ||
|
Vehicle (2.3× 2.3m) |
Detection | 2400m | |
| Recognition | 800m | ||
| Enviromental |
Operating Temperature |
-30 C~+60C | |
|
Storage Temperature |
-40 C~+70C | ||
| Protect standard | IP66 | ||
| Humidity |
5%~95 %(Non-Condensing) |
||
| Vibration |
Sweep frequency :5-200-5Hz, Acceleration 2.5g |
||
| Impact |
30g/11m s Half sine wave |
||
|
Physical parameters |
Dimension(mm) | 280×80×65(mm) | |
| Net weight | 740g(Exclude Battery) | ||
