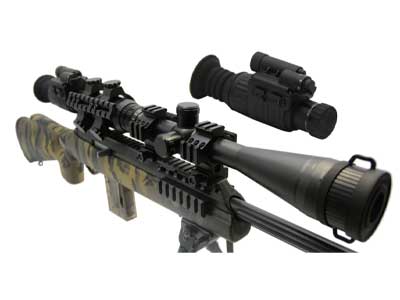

The MH-CLB series adopts a high-performance Gen2+ or Gen3 image intensifier, and the special post-aiming device is designed, the aiming effect at night is good, the structure adopts a full-metal body, the mechanical strength is high, the structure is small, and the structure is easy to assemble and disassemble. And the night monocular clip on scope can be clipped at back of the day light sight , so that a good viewing effect can be achieved at night. In the night vision mode, the night-field sniping can be performed as long as the conditions for the use of the micro-illumination of 10-3 lux (with weak glow) can be met.
|
MODEL |
MH-CLB10 |
MH-CLB30 |
|
IIT |
Euro Gen3 |
Euro Gen3 |
|
Magnification |
0.85X |
2X |
|
Resolution |
57-64 |
57-64 |
|
Les system |
F1: 1.2, F25mm |
F1: 1.4, F65mm |
|
Objective pupil |
22mm |
40mm |
|
FOV（degree） |
40 |
13.5 |
|
Objective adjustment range (m) |
3--∞ |
5--∞ |
|
Exit pupil diameter (mm) |
50 |
50 |
|
Distance of pupil |
9 |
9 |
|
Eyepiece aperture（mm） |
+/-5 |
+/-5 |
|
Installation |
Specialadopter bracket |
Specialadopter bracket |
|
Battery type（v） |
1x 3V lithium battery |
1x3V lithium battery |
|
Battery life（h） |
40-50 |
40-50 |
|
Operating temperature（℃） |
-40/+50 |
-40/+50 |
|
Relative humidity |
5%-98% |
5%-98% |
|
Impact resistance |
>800G |
>800G |
|
Environment rating |
IP65/（IP67optinal） |
IP65/（IP67optinal） |
|
Dimensions（mm） |
160x55x69 |
250x58x70 |
|
Weight（g） |
295g |
338g |
