MHNV 69-type 40mm night vision scope is equipped with the RPG7 and 69-1 40mm rocket launchers for use in night combat. MHNV scope gives the rocket launcher an angle and direction through the internal scale, and can be used for direct aiming and effective shooting at enemy tanks, armored vehicles, and concrete fortifications within a range of 100 to 500 meters.
| Product Name | MHNV 69-type 40mm Night Vision Scope |
|
Magnification |
4X |
| Field of view | 10° |
| Exit pupil diameter | 5mn |
| Exit pupil diameter | 20mn |
|
Resolution |
(under the conditions of contrast 85% to 90%, illumination 1/10Lx) ≤1.7 |
| (under the conditions of contrast 35% to 40%, illumination 1/1000Lx) ≤3.4′ | |
|
Zero position accuracy |
≤0.7mil
|
|
Zero adjustment range |
±12mil |
|

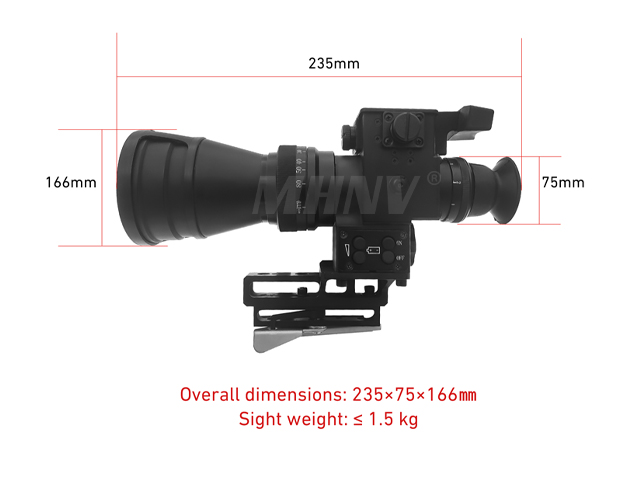

Overall dimensions |
235×75×166㎜ |
| Weight |
≤ 1.5 kg |
|
Continuous working time |
≥ 30h |
| Product Name | 69-type 40mm Night Vision Scope |
|
Magnification |
4X |
| Field of view | 10° |
| Exit pupil diameter | 5mn |
| Exit pupil diameter | 20mn |
|
Resolution |
(under the conditions of contrast 85% to 90%, illumination 1/10Lx) ≤1.7 |
| (under the conditions of contrast 35% to 40%, illumination 1/1000Lx) ≤3.4′ | |
|
Zero position accuracy |
≤0.7mil
|
|
Zero adjustment range |
±12mil |
|
Overall dimensions |
235×75×166㎜ |
| Weight |
≤ 1.5 kg |
|
Continuous working time |
≥ 30h |
