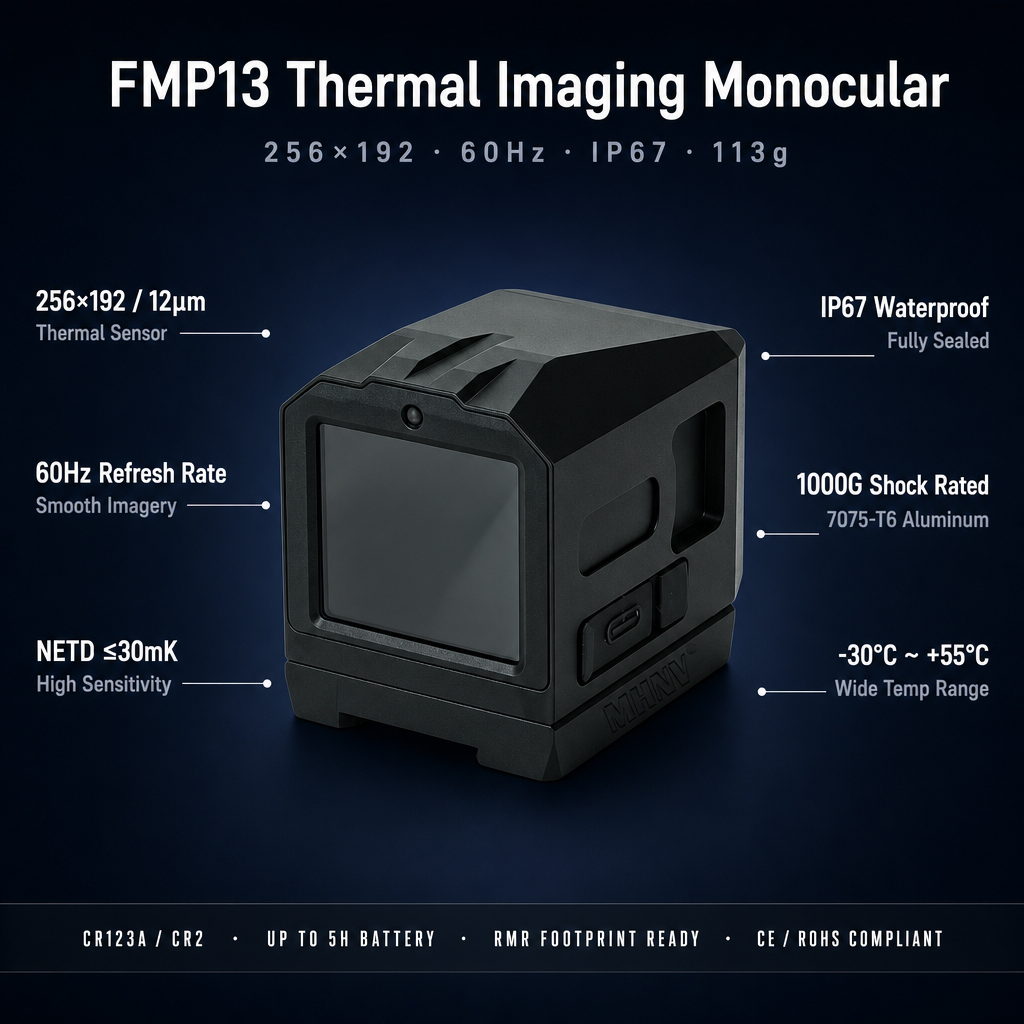

1. Ultra-Compact Thermal Observation Module | Red-Dot Footprint, RMR-Ready
Only 4 oz (113g) and 2″×1.7″×1.5″ — the FMP13 occupies the same footprint as a standard red-dot sight, making it a direct, no-compromise upgrade for platforms where space and weight are critical. Standard RMR footprint ships ready to mount; optional adapter plates for RMSc, DPP, and Glock MOS are available separately.
2. Professional-Grade Thermal Sensor | 256×192 / 12μm / 60Hz / NETD ≤30mK
Built on a 256×192 uncooled VOx detector with 12μm pixel pitch, 60Hz refresh rate, and NETD ≤30mK sensitivity — the same spec tier found in higher-cost dedicated thermal devices. Detects heat signatures at approximately 740 yards. 13mm F1.0 Germanium objective lens and 13.5°×10.1° FOV provide wide-area coverage for situational awareness and perimeter monitoring.

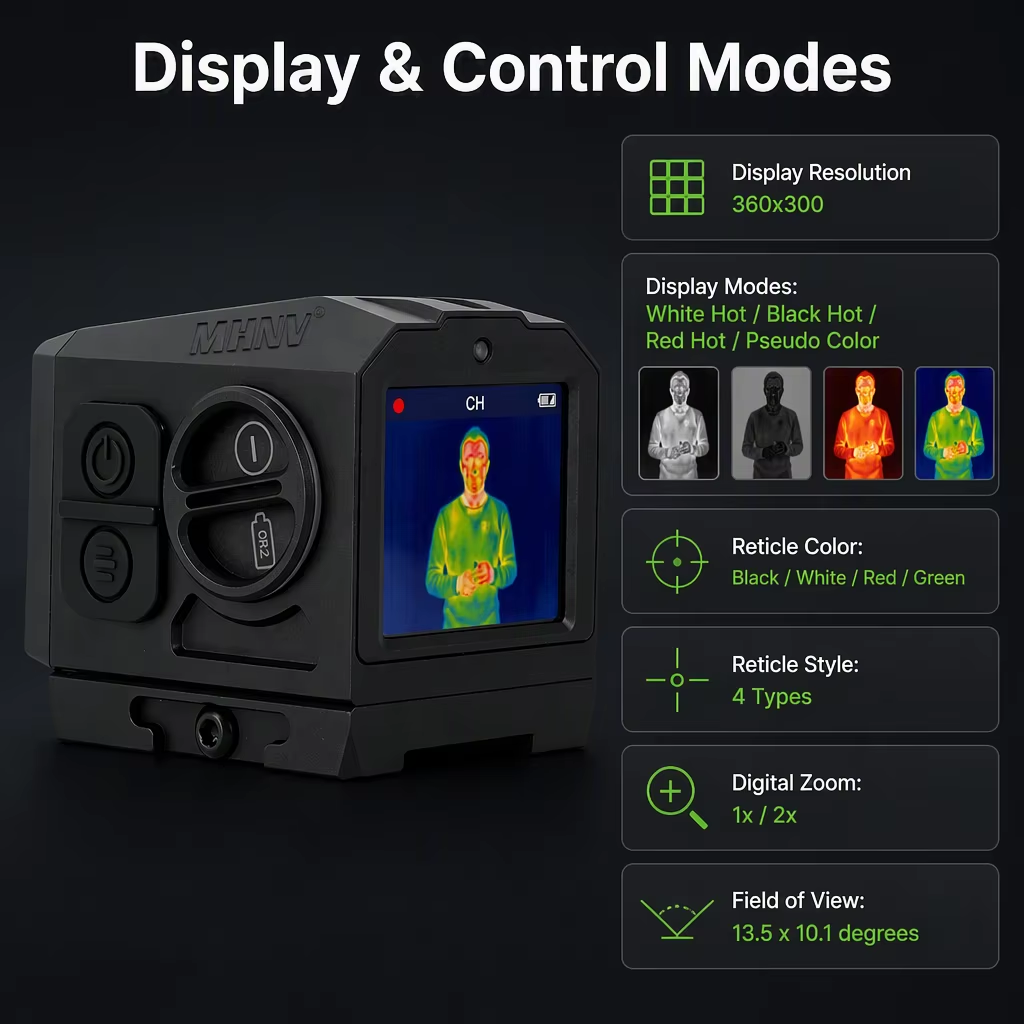

3. OLED Touchscreen + Physical Buttons | Intuitive Dual-Control Operation

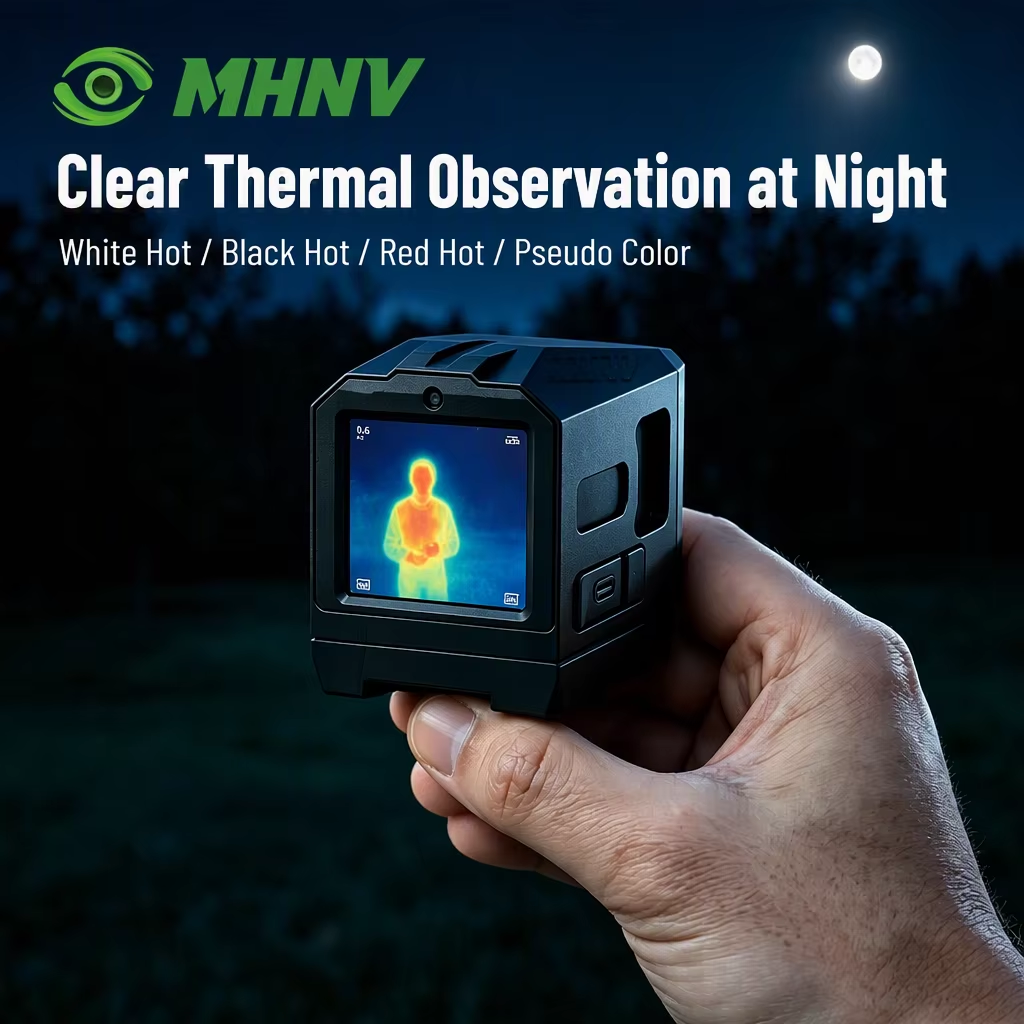

1.4-inch OLED display (360×300 resolution) with capacitive touchscreen and physical button backup. Swipe up/down to cycle color palettes (White Hot / Black Hot / Red Hot / Rainbow); swipe left/right to change reticles and colors; pinch-to-zoom between 0.5×/1× magnification. Auto brightness sensor optimizes display under varying ambient light — no manual adjustment needed.
4. Field-Ready Durability | IP67 / 1000G Shock / 7075-T6 Aluminum / -30°C to +55°C
Housing machined from 7075-T6 aircraft-grade aluminum. IP67-rated fully sealed against dust and water immersion. 1000G recoil-shock tested for high-recoil applications. Wide operating temperature range of -30°C to +55°C ensures reliable performance in extreme field conditions.
5. Standard Battery Platform | CR123A or CR2 | Up to 5 Hours Runtime
Accepts a single CR123A or CR2 lithium battery — globally available, easy to source in the field. Up to 5 hours runtime at room temperature. Ships ready to use: includes RMR adapter, 2× CR2 batteries, USB-C cable, lens cloth, tools, manual, and warranty card. CE / RoHS / REACH compliant for global distribution.
Xi'an MH Electronics And Technology Co., Ltd. (MHNV®), founded in 2013 and headquartered in Xi'an, Shaanxi, has grown over 12 years from an IIT integrator into a full-stack optoelectronic manufacturer. Products span Gen 2+/Gen 3 night vision devices, uncooled & cooled thermal imagers, laser rangefinders and AI fusion vision systems, exported to 60+ countries.
MHNV®'s engineering team covers nine disciplines — Algorithm, Hardware, Embedded SW, FPGA, Host-Computer SW, Optical Design, Mechanical Design, Industrial Design, and Testing — all in-house at the Xi'an factory.
MHNV® holds ISO 9001:2015 certification; products comply with CE, RoHS, and FCC. IITs are tested to MIL-STD-810 for shock, vibration, humidity, and altitude. Every IIT ships with a serialized QC data sheet covering SNR, FOM, resolution, halo, EBI, and luminous gain.
Uncooled Thermal Imagers — monoculars, binoculars, weapon sights, car cameras (256×192–6640×512)
AI & Fusion Systems — NV×Thermal fusion goggles, UAV AI modules, multi-function target detectors
Image Intensifier Tubes — Gen 2+/Gen 3, MX10130/MX10160/MX11769, FOM 1200–2000+
PCBA & Circuit Boards — FPGA video boards, AI tracker boards, thermal mainboards, IIT driver boards
Backed by a complete in-house engineering team, MHNV® delivers full customization at every product layer: IIT selection (MX10130/MX10160/MX11769), optical parameter tuning, firmware features (menu language, gain curves, WiFi streaming), housing material (aluminum, magnesium alloy, polymer), IP rating, and branded packaging with multilingual manuals.
