MHNV Industrial Carrier Board: The Powerhouse for Advanced Edge AI & Robotics
Experience the pinnacle of industrial reliability with the MHNV. A credit-card-sized (87x52mm) carrier board engineered to transform complex AI algorithms into real-world performance.From autonomous robotics to smart surveillance, the MHNV provides the robust foundation your edge computing project demands.
Built for the harsh realities of industrial environments, the MHNV supports a 9V to 20V DC wide voltage input (60W). Whether integrated into a battery-powered robot or a factory-floor terminal, our board ensures consistent, high-performance operation without the need for complex power conversion.
Staying ahead of the curve, the MHNV features our latest 2025 V2.1 update. We’ve optimized the 15PIN ZIF Camera Connector to provide superior signal integrity for industrial CSI cameras, making it the most reliable choice for vision-critical applications.

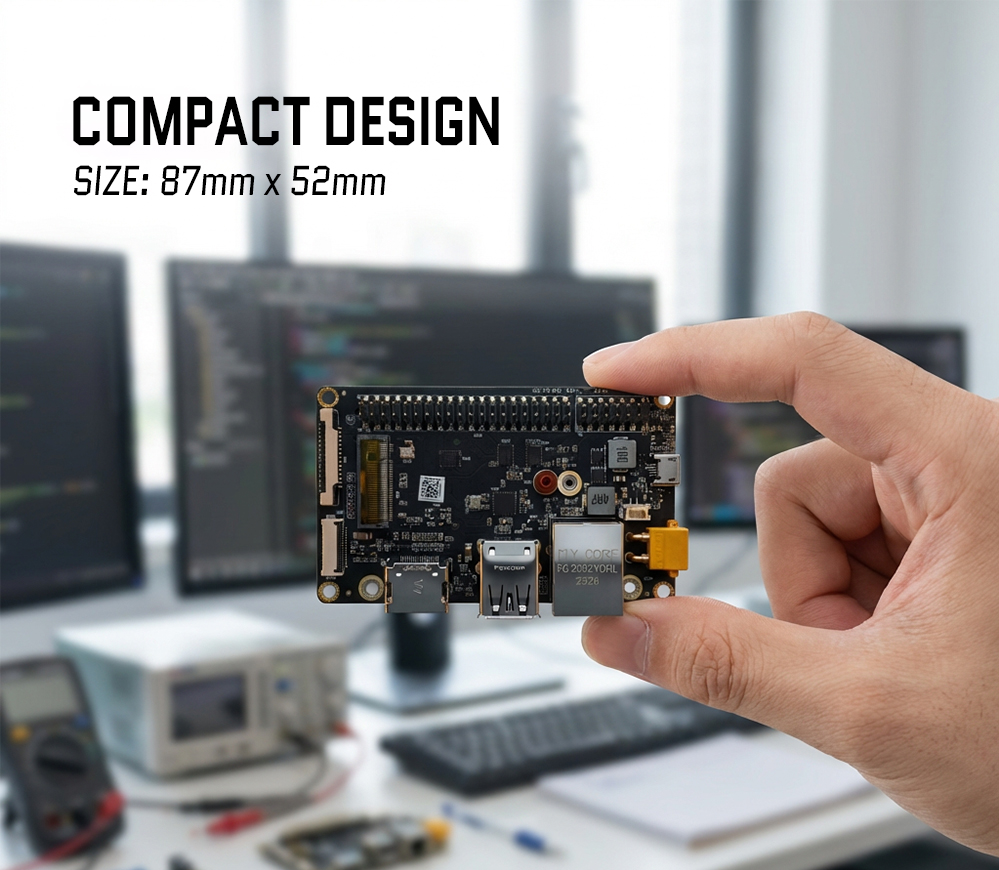

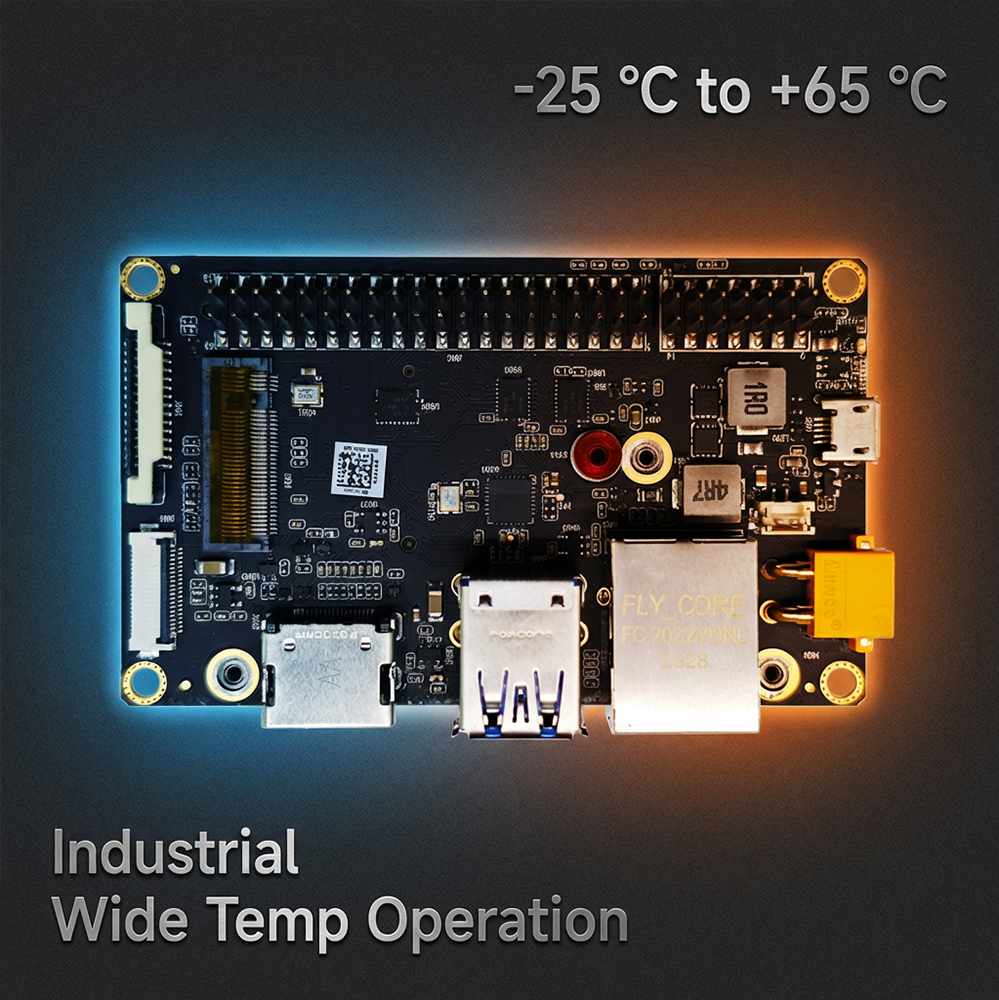

Measuring just 87x52mm, this board fits where others won’t. With a certified operating temperature range of -25°C to +65°C, MHNV ensures your AI deployment remains stable from arctic conditions to industrial heatwaves.

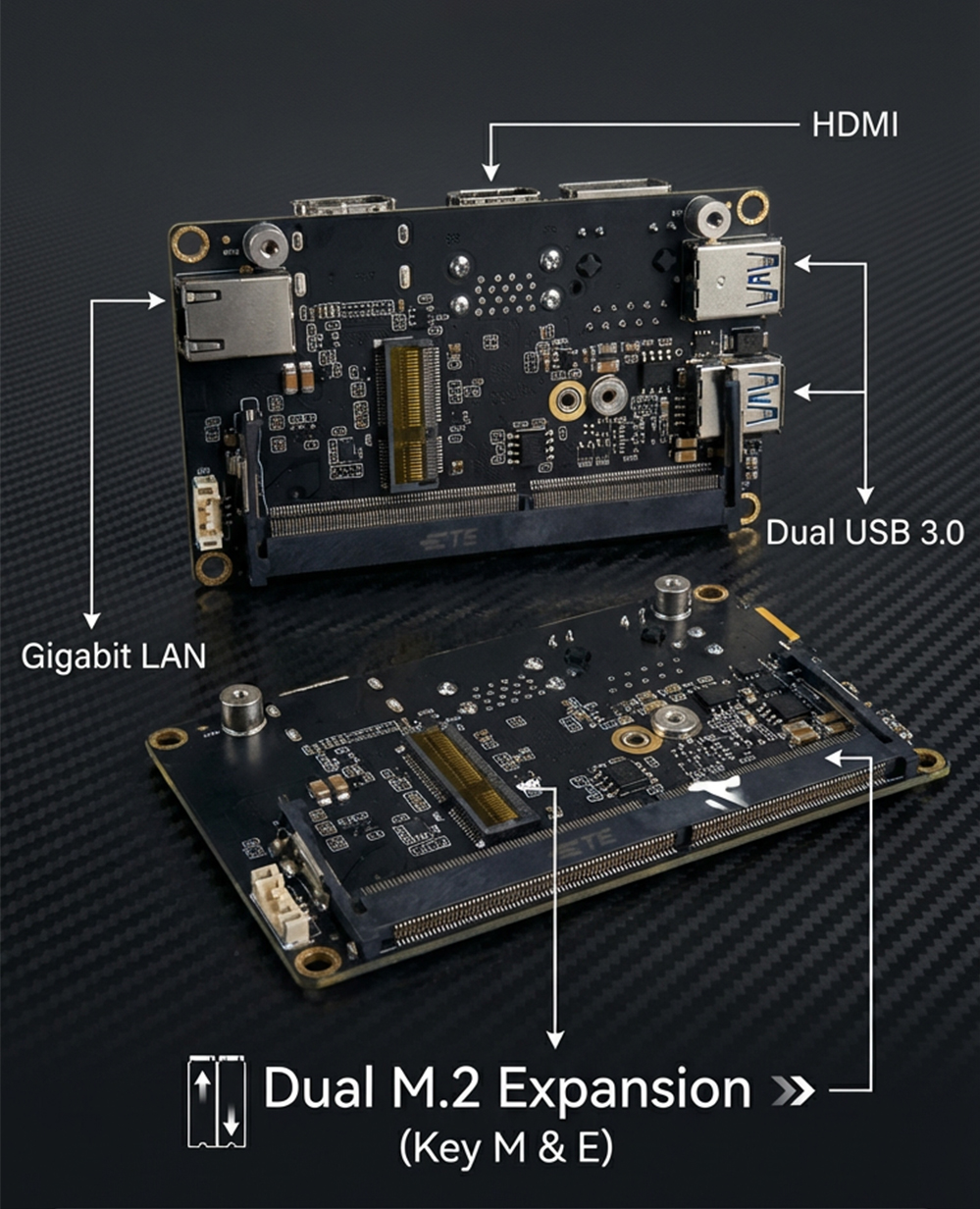

Unlock the full potential of your AI models with Dual M.2 expansion. The dedicated Key M slot supports high-speed NVMe SSDs, ensuring rapid data access and local logging, while the Key E slot provides seamless integration for WiFi/Bluetooth communication.
|
Feature |
MHNV-Carrier Board |
|
PCB Size /Overall Size |
87mm x52mm |
|
Display |
1xHDMI |
|
Ethernet |
1x Gigabit Ethernet (10/100/1000) |
|
USB |
2x USB 3.0 Type A (Integrated USB2.0) |
|
1x USB 3.0 0.5mm pitch 20P ZIF |
|
|
1x USB 2.0 Micro-AB |
|
|
M.2 KEY M |
M.2 KEY M (NVMe SSD) (2242) |
|
Serial |
1x CAN |
|
Camera |
1x CSI CAMERA |
|
M.2 KEY E PCIE |
1x PCIE 2230 SIZE |
|
12S |
1x I2S(3.3V Level) |
|
Misc. |
2x12C Link (+3.3V 1/O) |
|
6x GPIO |
|
|
1x UART |
|
|
2xSPI |
|
|
Power Requirements |
+9V to +20V DC Input @7A |
|
Operating Temperature |
-25°C to +65° |
A: The board supports a wide voltage input range of 9V to 20V DC. For optimal performance, especially when using high-power Orin NX modules and NVMe SSDs, we recommend a power supply capable of delivering 60W. This wide voltage support makes it ideal for battery-powered robotics and industrial power systems.
A: Yes. The board features an M.2 Key M slot dedicated to high-speed NVMe SSDs. This allows for significantly faster data read/write speeds and larger storage capacity compared to standard microSD cards, which is essential for heavy AI logging and edge data processing.
A: The V2.1 (latest 2025 update) features a significant hardware optimization: the CSI Camera interface has been updated to a 15PIN ZIF connector. This change improves signal reliability for industrial imaging. Additionally, the V2.1 documentation includes updated instructions for Jetpack component installation and a new driver resources link.
A: The board is equipped with a 15PIN ZIF CSI Camera interface (W9). It is designed to work with standard 15-pin CSI cameras commonly used in the Jetson ecosystem. For multi-camera setups, users typically utilize the high-speed USB 3.0 ports for additional vision sensors.

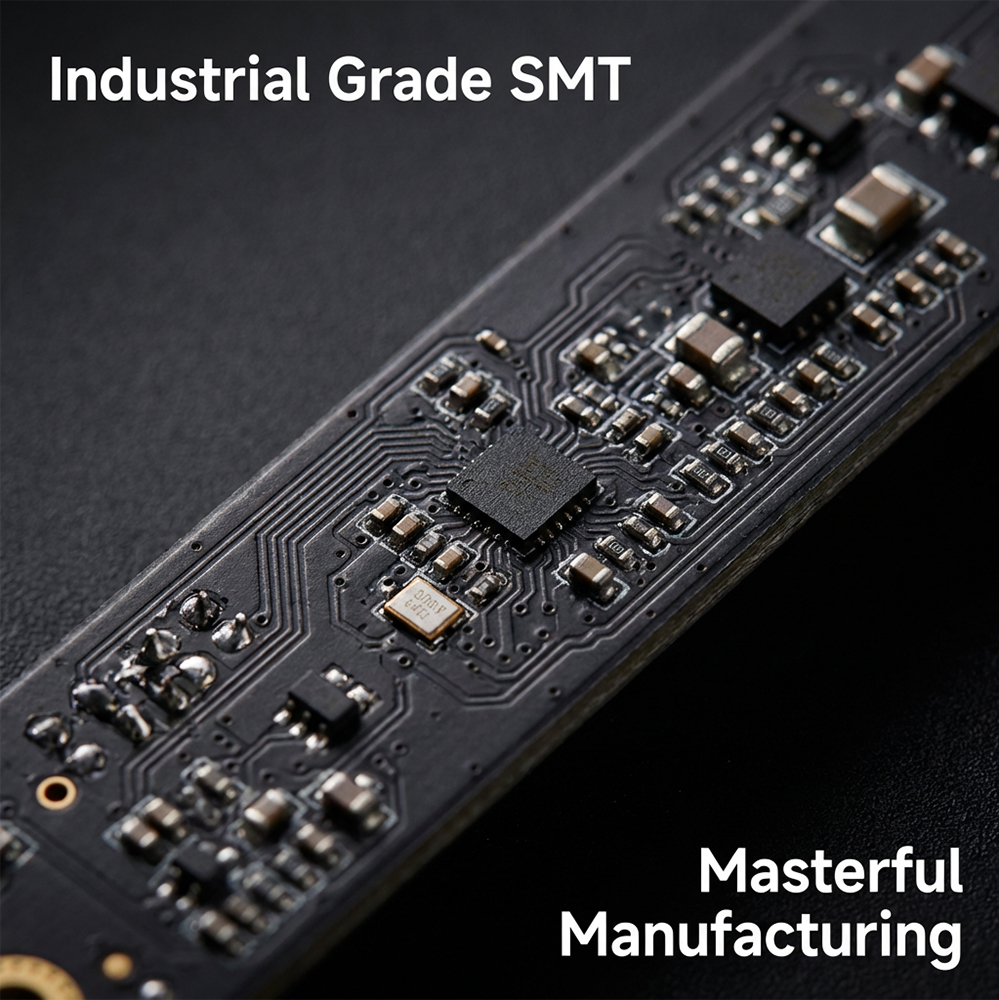

A: Yes, the MHNV is an industrial-grade hardware solution. It is tested to operate reliably within a temperature range of -25°C to +65°C. Its high-quality SMT manufacturing and robust circuit design ensure stability in both cold storage and high-heat industrial settings.
A: To enter Recovery Mode:
A: The MHNV includes an M.2 Key E slot (W13) specifically for wireless expansion. You can easily install a standard M.2 WiFi/Bluetooth module to enable wireless data transmission and remote control for your AI projects.
