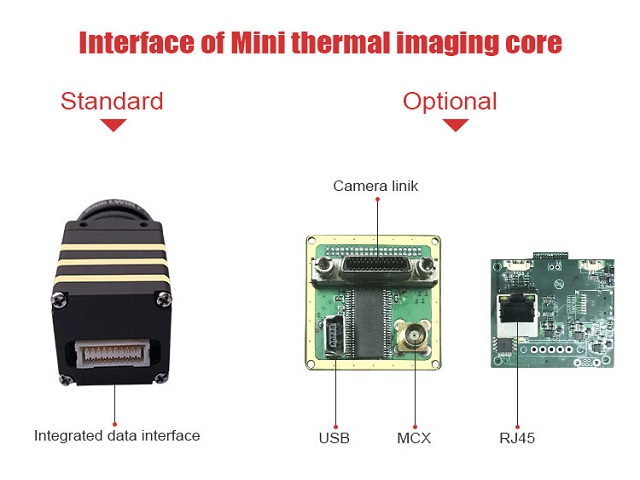

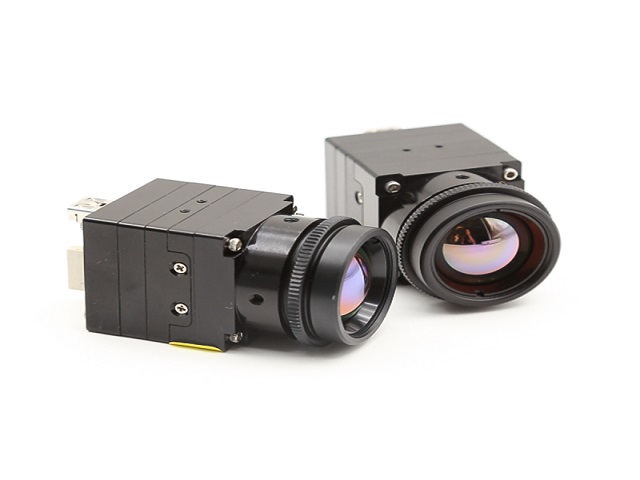

MH-TC series is the smallest thermal imaging module in the world. MH-TC series Gen2 uses the latest Gen2 384x288px / 640x480px @17um FPA uncooled detector. MH-TC series can provide clearer picture and customized connection interface, they will bring great success to your system integration.

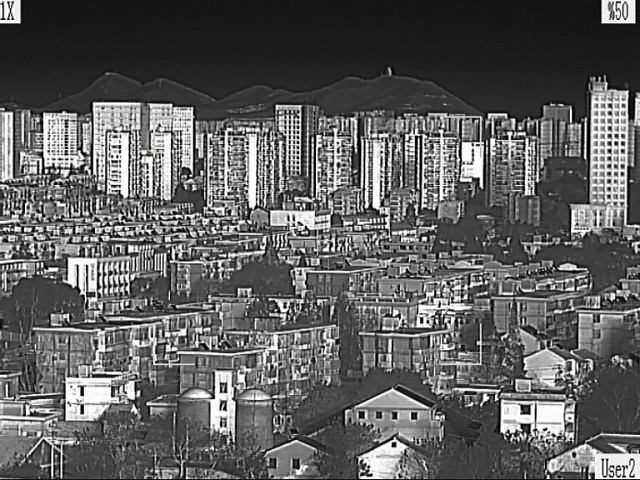

The higher an object's temperature, the more infrared radiation is emitted. MH thermal camera can detect this radiation in a way similar to the way an ordinary camera detects visible light. It even works in total darkness because ambient light level does not matter. This makes it useful for rescue operations in smoke-filled buildings and underground.
MH-TC 384/640 imaging module is the core of the thermal camera, which detects infrared radiation and convert it into electric signals for thermal image processing. It can be applied in various fields such as outdoor night vision, temperature measurement, fire prevention, health and medical care, and autopilot.

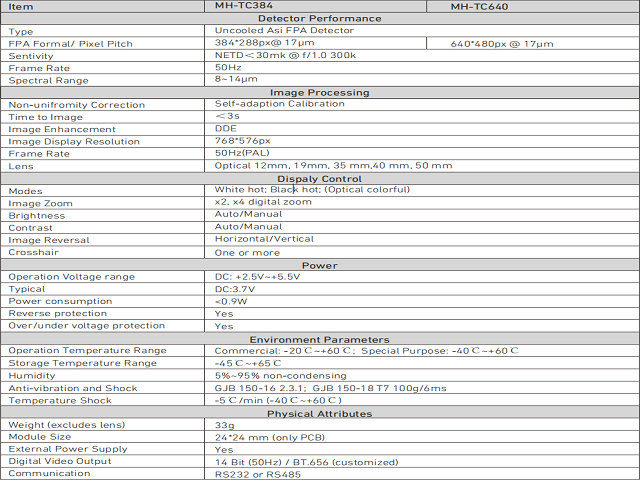

Technical Specification：
