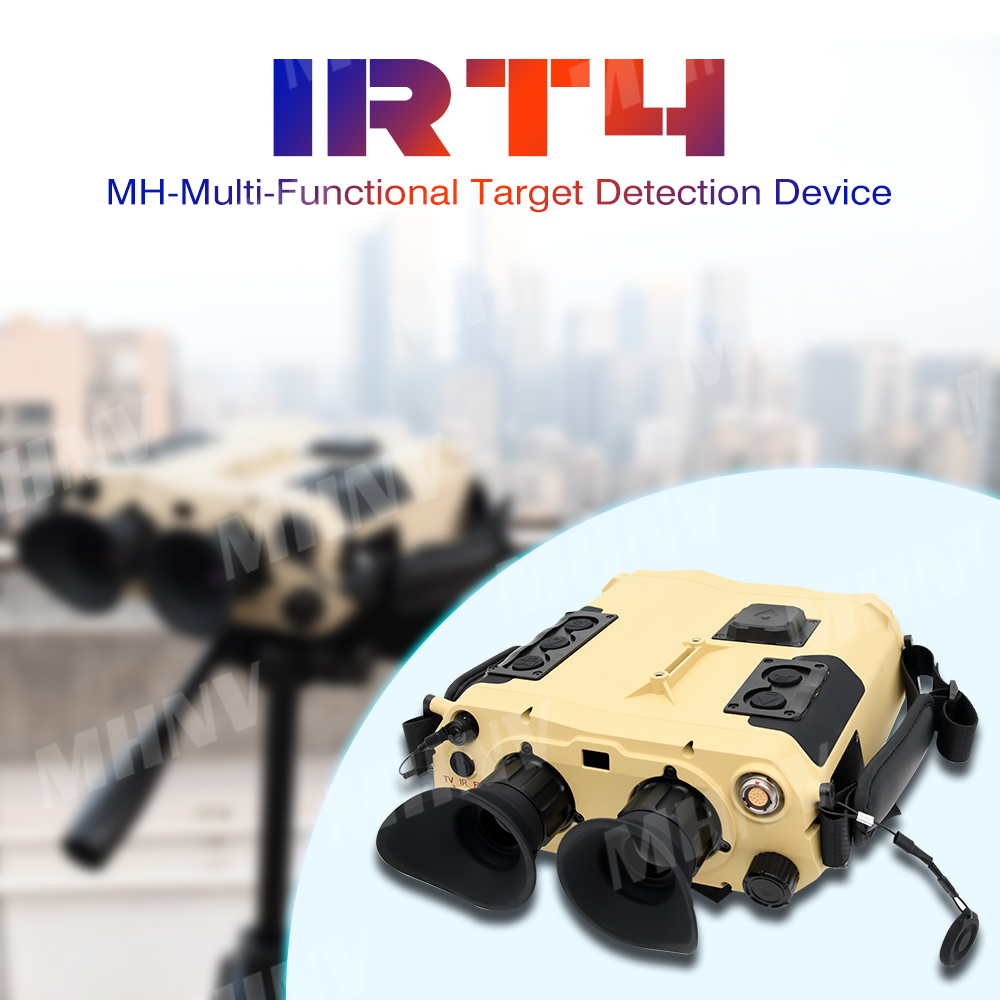

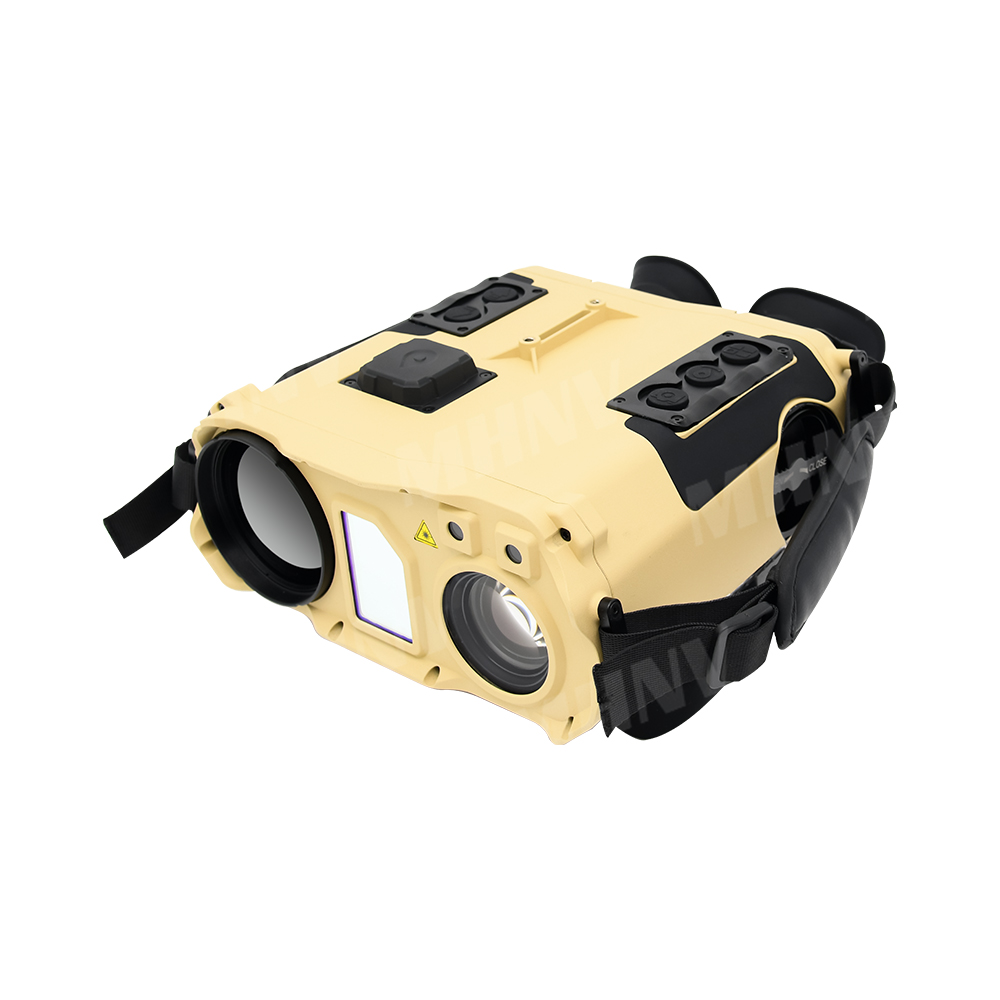

The MH-IRT4 sniper auxiliary training system integrates the functions of thermal imaging and visible light imaging. It is an intelligent observation system capable of real-time observation and collection of shooting-related meteorological data and performing ballistic calculations to assist in shooting. This product can also serve as general reconnaissance equipment, used for day and night battlefield observation and identification of targets such as personnel, vehicles, and terrain, helping with observation and improving shooting results. The MH-IRT4 has no low light, and ballistic calculation is an optional feature.
MAIN FEATURES
| Product | MH-IRT5 | MH-IRT4 |
| Visible Light | ||
| Resolution | 1920*1080 | |
| FOV | 44°*34°~2.4ᵒ*1.8* | 44°*34ᵒ~2.4*1.8*(Coaxial optical zoom) |
| Working illuminance | ≥0.1Lx(Black and white)≥1.0Lx(Full color) | |
| Recognition distance | Personnel targets≥3KM Vehicle targets:≥6Km | |
| Thermal Image | ||
| Resolution | 640*512 | |
| Pixel Pitch | 12um | |
| FOV | 7.32°*5.86° | |
| Recognition distance | Personnel targets:≥1KM Vehicle targets:≥2Km | |
| Low-light | ||
| Resolution | 800*600 | / |
| Pixel Pitch | 8um | / |
| FOV | 7.32°*5.86° | / |
| Laser Rangefinding | ||
| L aser wavelength | 1 535nm | |
| Measurement range | 30m-6Km (Vehicle) | ≥6Km (Vehicle) |
| Measurement accuracy | +1m | |
| Working Time | Continuous working time 29 hours | |
