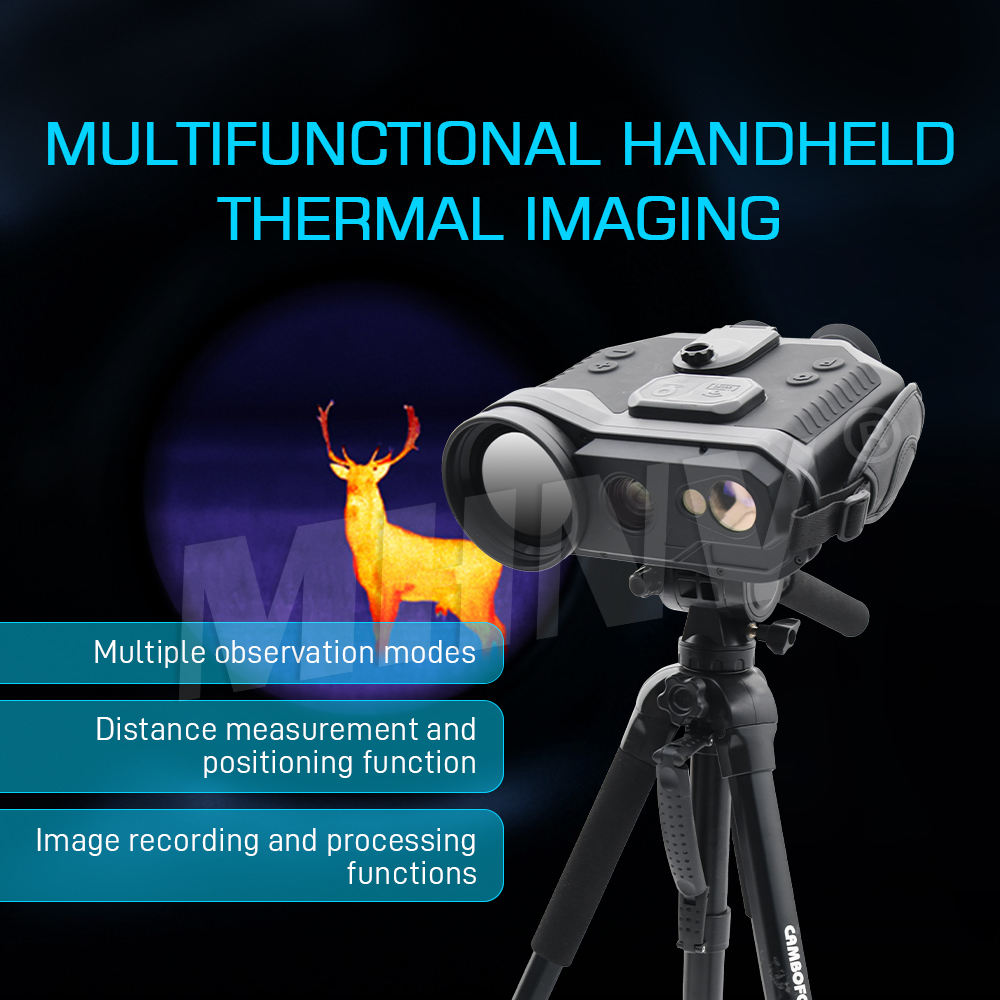

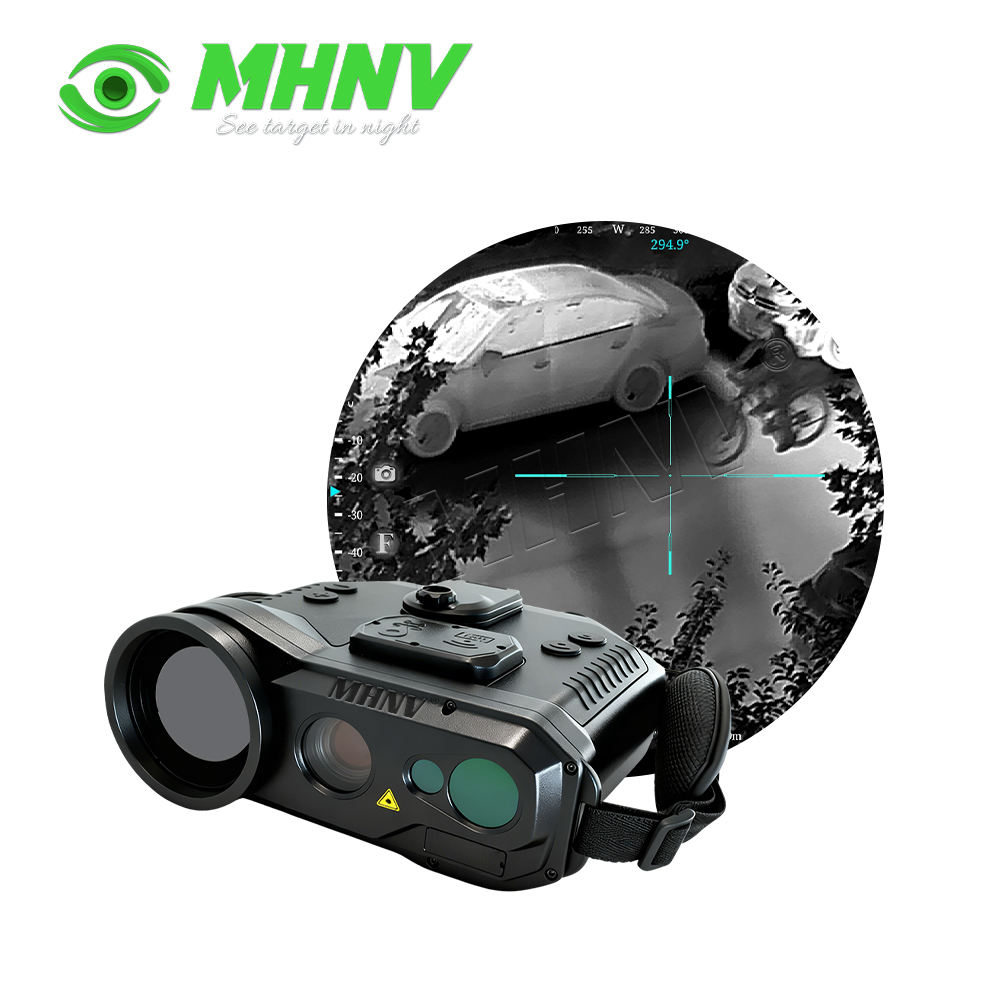

Breaking limitations of traditional single-function devices, the MH-900 innovatively integrates640×512 uncooled thermal imaging, 1080P visible light imaging, 1535nm laser ranging, multi-mode satellite positioning, high-precision electronic compass and WiFi transmission, delivering all-domain detection in one device.
Equipped with a 12μm ultra-small pixel pitch detector and standard 8~14μm infrared band, the thermal module identifies hidden heat sources through smoke, darkness and obstacles. The visible light module supports electric auto-focus, day-night color switching and fog penetration, with dual FOV design for wide-area patrol and long-range precise observation.
2.High-Precision Detection & Professional Practice Performance
Equipped with a professional ranging & positioning system, max laser ranging distance reaches 8.5km with ±2m accuracy, supporting 3-target relative ranging and countdown ranging photography. The positioning module is compatible with GPS, Beidou and GLONASS, with 3m horizontal accuracy and dual coordinate mode switching.
Matched with high-precision electronic compass (azimuth accuracy ≤1°, pitch/roll error as low as 0.3°), it accurately calculates target azimuth, distance, altitude and geographic coordinates. The 0.71-inch 1080P OLED HD eyepiece supports 8× stepless digital zoom, 10+ thermal color modes and 6 reticle styles, with adjustable diopter for all users.
3.High Protection & Long Battery Life for Harsh Environments
Industrial-grade IP66/IP67 waterproof & dustproof design operates stably in -30℃ to 55℃ wide temperature range, resisting heavy rain, sand, extreme temperatures. Powered by multiple 18650 lithium batteries with 6+ hours continuous runtime, matched with dedicated multi-slot charger featuring current adjustment and multiple charging protections.
Built-in 128G storage supports dual-mode photo & video recording for thermal and visible light, with fast export via USB and WiFi, plus CVBS analog video output. Equipped with tripod interface, anti-slip wristband and portable safety box, its lightweight design adapts to handheld and fixed installation scenarios.
Relying on MHNV's 19 years of core optical & thermal imaging technology and mature supply chain, the MH-900 solves pain points of traditional reconnaissance equipment with core advantages: 6-in-1 integrated functions, high-precision detection & positioning, high durability, long battery life and easy operation. As a practical all-domain reconnaissance device, it meets professional needs in defense, security, search & rescue and industrial inspection. With OEM/ODM customization, efficient delivery and strict quality control, it is the preferred high-precision day & night reconnaissance solution for global users.
