Thermal imaging cameras have become essential tools in security surveillance, industrial inspection, firefighting, wildlife observation, search and rescue, and defense applications. Modern infrared thermal imaging cameras are mainly classified into cooled thermal imaging cameras and uncooled thermal imaging cameras. While both detect infrared radiation to create thermal images, they differ significantly in performance, cost, response speed, and operating environments.
1.What Is a Cooled Thermal Imaging Camera?

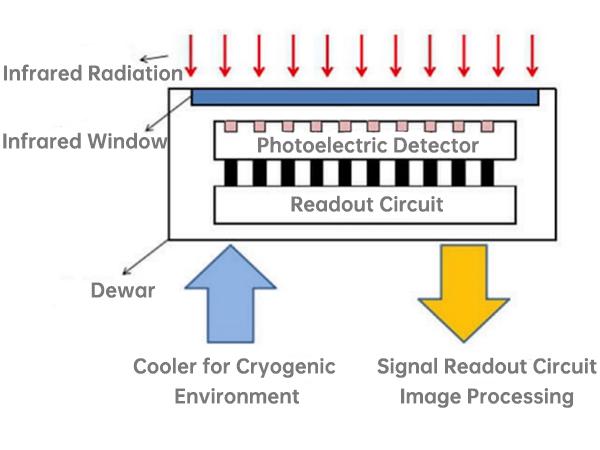

A cooled thermal imaging camera uses a cryogenically cooled infrared detector. By reducing the detector temperature to an extremely low level, internal thermal noise is minimized, allowing the camera to capture weaker infrared signals with exceptional accuracy.
✔ Ultra-long detection range for long-distance surveillance.
✔ Outstanding thermal sensitivity for detecting minimal temperature differences.
✔ Sharper images with richer target details.
✔ Excellent performance in rain, fog, smoke, and other challenging environments.
✔ Ideal for military, border security, maritime surveillance, and scientific research.
2.What Is an Uncooled Thermal Imaging Camera?

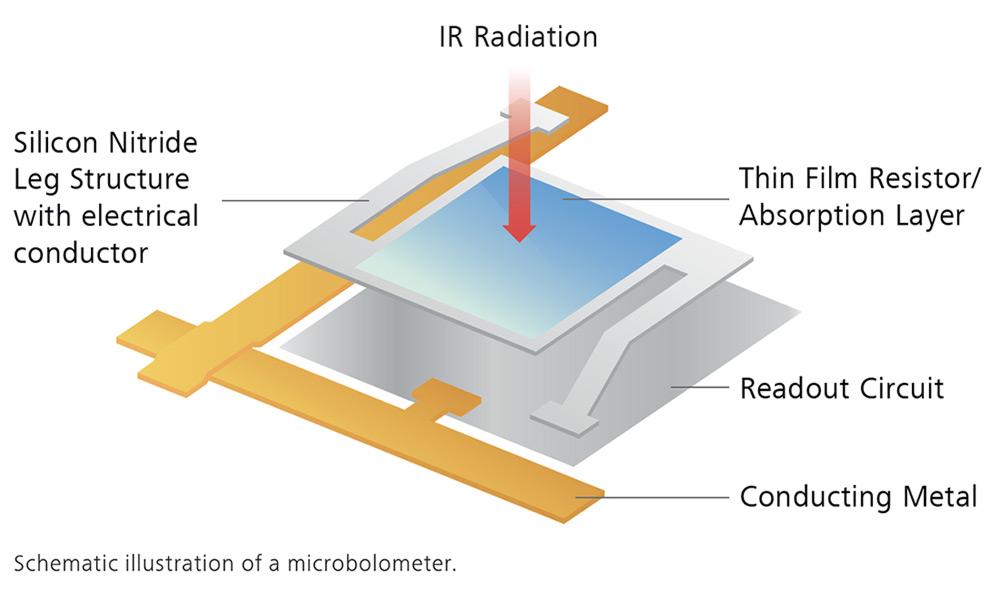

An uncooled thermal imaging camera uses a microbolometer detector that operates at ambient temperature without a cooling system. Thanks to its compact design, low power consumption, and affordable cost, it has become the most widely used thermal imaging solution worldwide.
✔ Instant start-up within seconds.
✔ Lightweight and portable.
✔ Long battery life with low power consumption.
✔ Cost-effective for commercial applications.
✔ Maintenance-free and highly reliable.
Cooled thermal imaging cameras use cryogenically cooled detectors for maximum sensitivity, while uncooled cameras use microbolometers that operate without a cooling system.
Cooled systems provide much longer detection distances, making them ideal for military and long-range surveillance. Uncooled systems are better suited for short- and medium-range applications.
Cooled cameras deliver sharper images and detect smaller temperature differences. Uncooled cameras provide excellent image quality for most commercial applications.
Uncooled cameras start within seconds, consume less power, and are lightweight. Cooled cameras require a cooling process before operation and are generally larger.
Cooled thermal imaging cameras offer the highest performance at a premium price. Uncooled cameras provide an excellent balance between performance and affordability.
4.Which Thermal Imaging Camera Should You Choose?
Choose a cooled thermal imaging camera if your mission requires maximum detection distance, superior image quality, and precise target recognition over long distances.
Choose an uncooled thermal imaging camera if you need portability, affordability, long battery life, and reliable everyday performance for security, inspection, firefighting, or outdoor observation.
640 × 512 @12 μm thermal sensor with NETD ≤25 mK delivers sharp thermal images and excellent target recognition.
Detects human targets up to 2.8 km and vehicles up to 7 km, making it suitable for surveillance, border patrol, search & rescue, and wildlife observation.
Integrates thermal imaging, visible-light camera, laser rangefinder (8 km), GPS, digital compass, photo/video recording, and 32 GB storage.
IP67 waterproof protection and an operating temperature of −30°C to +50°C ensure reliable performance in harsh environments.
Whether you choose a cooled thermal imaging camera or an uncooled thermal imaging camera, the best solution depends on your application requirements, detection distance, operating environment, and budget. Understanding the strengths of each technology will help you make a more informed purchasing decision.
