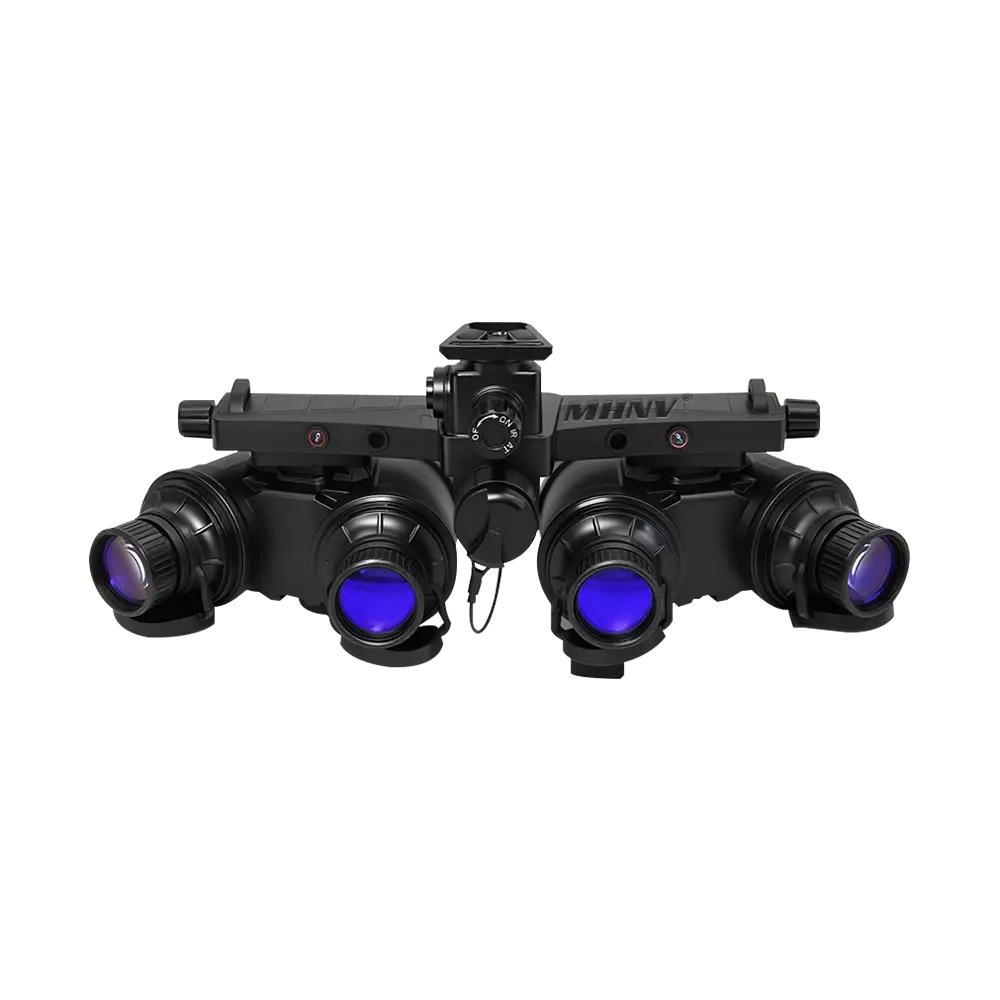

The MH-GPNVG is a ground-based panoramic night vision system that enhances situational awareness and speeds up the OODA cycle (Observe, Orient, Decide, Act). It features four image intensifier tubes and four objective lenses arranged for a 120° field of view, significantly improving visibility compared to traditional binocular goggles.
The GPNVG-18 panoramic night vision goggle system provides a wide field of view, helping operators maintain broader situational awareness in low-light environments. However, conventional image intensifier technology relies on available light and may have difficulty distinguishing certain targets in challenging conditions, particularly when thermal contrast is more informative than visible-light detail.

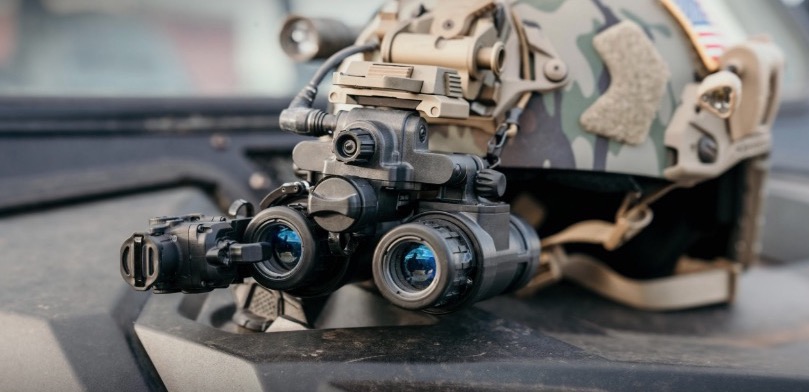

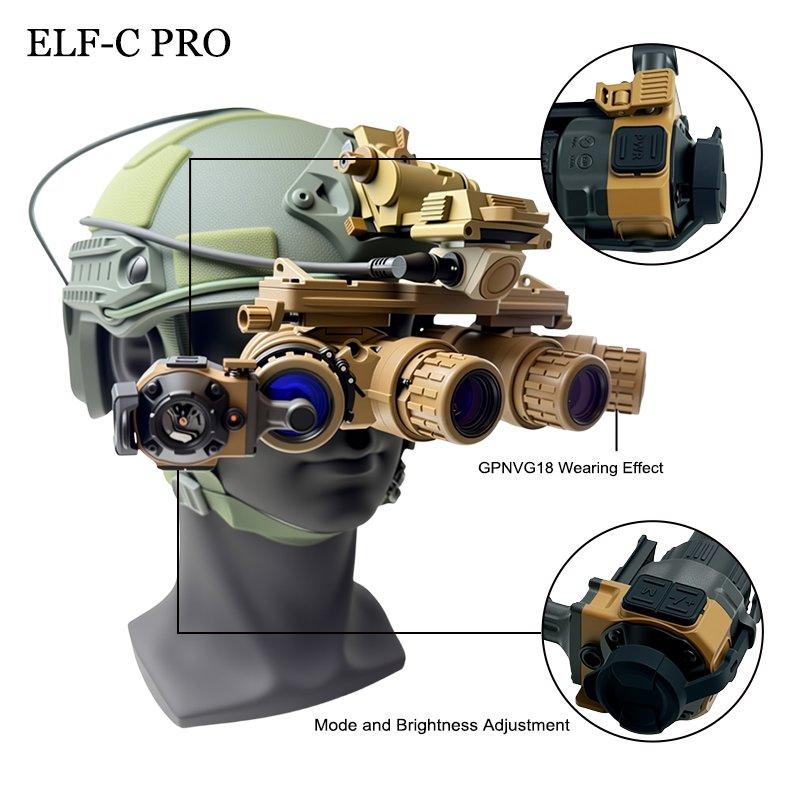

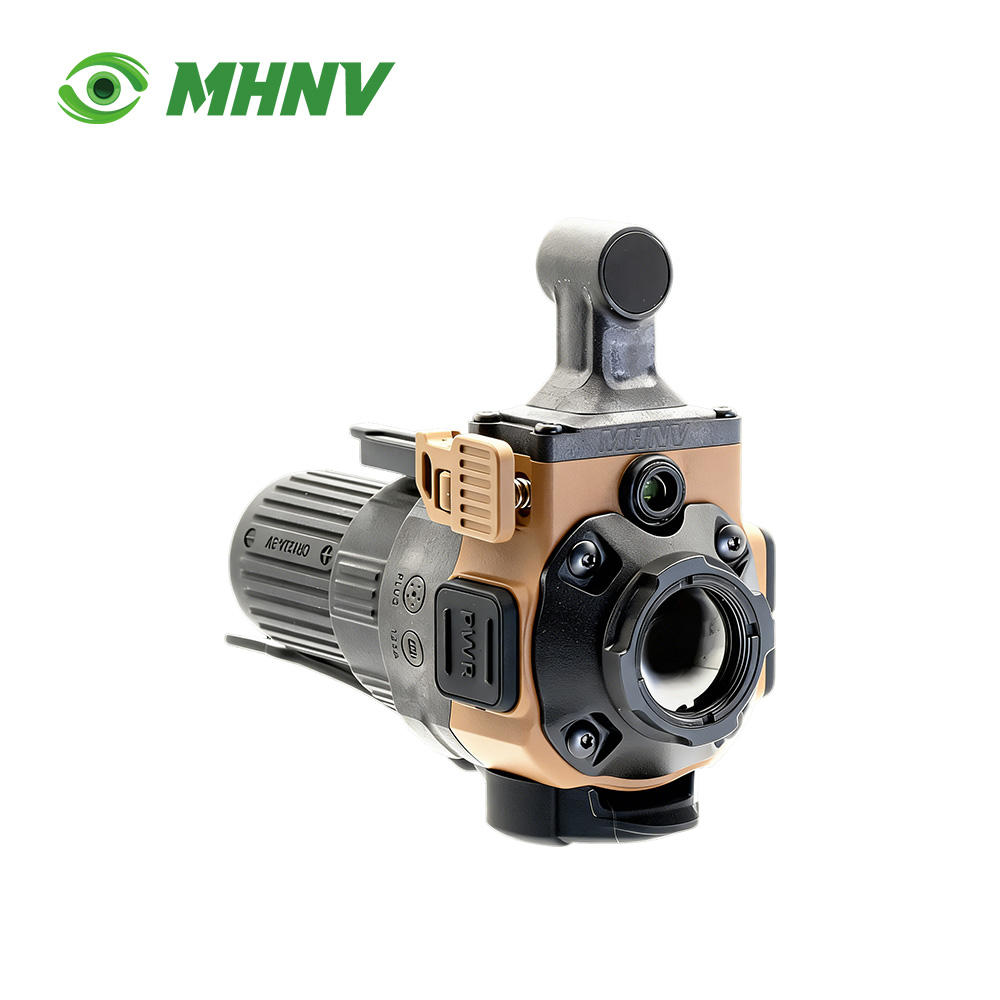

Integrating a Jerry-C clip-on thermal fusion module adds a complementary thermal imaging capability to the existing night vision system. By combining low-light imagery with thermal information, the configuration helps users observe environmental details while identifying potential heat signatures within the observable scene.
Rather than replacing the panoramic night vision system, this modular approach expands its capabilities while retaining the original four-tube configuration.
·Wide-Field Panoramic Observation
The four-tube night vision system provides a panoramic viewing experience. The Jerry-C integration is designed to retain the GPNVG's original panoramic viewing capability, subject to the specific mounting and optical configuration.
·Complementary Thermal Imaging
Thermal imaging adds heat-signature information to conventional night vision, helping users distinguish potential warm targets from their surroundings when visible-light contrast is limited.
·Modular, Clip-On Integration
·Flexible Equipment Configuration
Users can configure their equipment around operational requirements, using the thermal fusion module when additional thermal information is needed and returning to the original night vision setup when it is not.
3. One Modular System, Two Complementary Imaging Technologies
|
Feature |
GPNVG-18 |
Jerry-C |
|
Primary imaging |
Image intensification |
Thermal imaging |
|
Key advantage |
Lowlight environmental detail and panoramic awareness |
Heat-signature detection
|
|
Complementary value |
Helps interpret the surrounding scene
|
Helps identify thermal targets
|
|
Configuration |
Four-tube panoramic system
|
Clip-on thermal module
|
|
Combined benefit |
Wider situational awareness with additional thermal information
|
A modular approach to enhanced night observation
|
The combination may be relevant to professional users who require both broad situational awareness and thermal imaging capability.
Nighttime observation and patrol: Combine low-light scene details with thermal target information.
Search and rescue: Support the identification of potential human heat signatures in suitable observation conditions.
Perimeter monitoring: Supplement conventional night vision with thermal imaging where additional target contrast is beneficial.
Professional equipment integration: Provide a modular option for users seeking thermal functionality without replacing their existing panoramic night vision equipment.
Thermal imaging does not guarantee detection through dense vegetation, solid obstructions or all smoke conditions. Performance depends on the environment, target characteristics and device specifications.
For distributors, integrators and professional equipment buyers, modular integration offers several potential advantages:
Lower system replacement costs: Upgrade an existing compatible night vision configuration instead of automatically replacing the complete system.
Flexible product offerings: Provide customers with different equipment configurations based on their operational requirements and budgets.
Simplified equipment management: A removable module can support different configurations, subject to mounting and calibration requirements.
OEM/ODM opportunities: Work with the manufacturer to assess mounting compatibility, optical alignment, product integration and customization requirements.
At MHNV, we focus on night vision and thermal imaging products, supported by in-house R&D and manufacturing capabilities. We work with customers to evaluate product compatibility and explore practical integration options for their specific projects.
The GPNVG-18 and Jerry-C combination represents a modular approach to panoramic night observation, bringing together the wide-field viewing experience of four-tube night vision and the complementary target-detection capabilities of thermal imaging.
For customers seeking to expand an existing night vision platform, this configuration offers an alternative worth evaluating before investing in a fully integrated thermal fusion system.
Contact MHNV to discuss Jerry-C compatibility, mounting options and customized night vision and thermal imaging solutions for your project.
